EL31-KHPES (1986)
Toyota Corolla 2
Production
May 1986
-
May 1988
Engine
3E
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8605- )2E,3E#..ATM

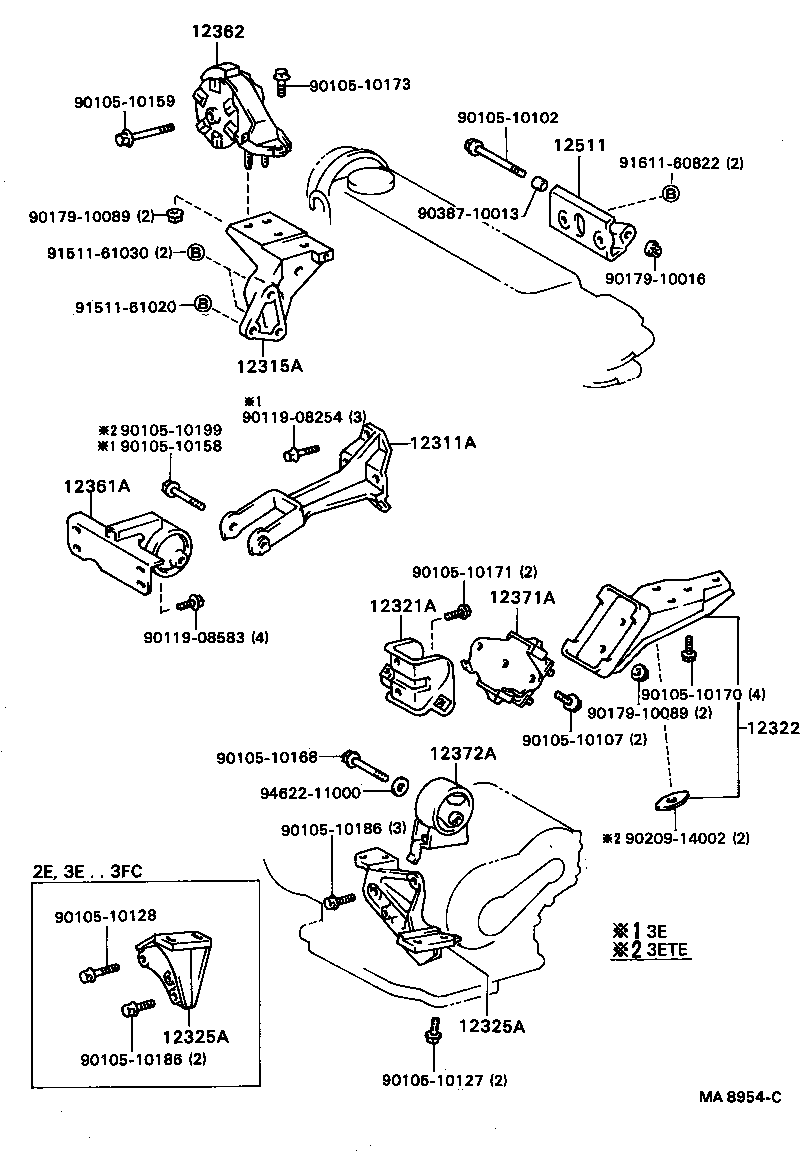

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-11030 |
3E..EL31 |
1 | ||
| 12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12315-10010 |
2E,3E#..EL3# |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-11050 |
2E,3E#..EL3#..ATM |
1 | ||
| 12322 - BRACKET, ENGINE MOUNTING, REAR NO.2 | ||||
| 12303-11040 |
2E,3E..EL3#..ATM |
1 | ||
| 12303-11041 |
2E,3E..EL3#..ATM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-11030 |
3E#..EL31..4FC |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-11030 |
3E#..EL31..4FC |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-11070 |
3E..EL31..4FC |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-11060 |
2E,3E#..EL3# |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-11160 |
2E,3E#..EL3#..ATM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-11100 |
3E#..EL31..4FC |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-11010 |
2E,3E#..EL3# |
1 | ||
| Common parts | ||||
| 90105-10102 | ||||
| 90105-10107 | ||||
| 90105-10127 | ||||
| 90105-10128 | ||||
| 90105-10158 | ||||
| 90105-10159 | ||||
| 90105-10168 | ||||
| 90105-10170 | ||||
| 90105-10171 | ||||
| 90105-10173 | ||||
| 90105-10186 | ||||
| 90105-10199 | ||||
| 90119-08254 | ||||
| 90119-08583 | ||||
| 90179-10016 | ||||
| 90179-10089 | ||||
| 90209-14002 | ||||
| 90387-10013 | ||||
| 91511-61020 | ||||
| 91511-61030 | ||||
| 91611-60822 | ||||
| 94622-11000 | ||||
