EL31-KHMES (1988)
Toyota Corolla 2
ILLUST NO. 1 OF 3(8805- )CBR,EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07242 |
EL3# NO.2 |
1 | ||
| 90980-07282 |
EL3# NO.1 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07242 |
EL3# NO.2 |
1 | ||
| 90980-07282 |
EL3# NO.1 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-16650 |
EL3#..CD,GL,LIM,TX,ZX |
1 | ||
| 82111-16650 |
EL3#..GL,LIM,ZX |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-16340 |
EL3#..MTM..CBR |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-1G210 |
EL31..ZX |
1 | ||
| 82131-1G220 |
EL31..ZX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08190 |
EL3# 60A,ﾒｽ端子,黄 |
1 | ||
| 90982-08188 |
EL3#,NL30 30A,ﾒｽ端子,ﾋﾟﾝｸ |
1 | ||
| 90982-08190 |
EL3#;NL30..4FC 60A,ﾒｽ端子,黄 |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16040 |
EL3#..MTM |
1 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
EL3#,NL30..AR,GP,LIM,SRI,ZX NO.2 |
1 | ||
| 82345-20060 |
EL3#,NL30..(4F,4FC,5F)..(AR,GP,LIM,SRI,ZX) NO.2 |
1 | ||
| 82345-32020 |
EL3#..AR,LIM,ZX NO.1,3P CONNECTER |
2 | ||
| 82345-32020 |
EL3#..(4F,4FC,5F)..(AR,LIM,ZX) NO.1,3P CONNECTER |
2 | ||
| 82345 - DIODE | ||||
| 82345-20060 |
EL3#,NL30..AR,GP,LIM,SRI,ZX NO.2 |
1 | ||
| 82345-20060 |
EL3#,NL30..(4F,4FC,5F)..(AR,GP,LIM,SRI,ZX) NO.2 |
1 | ||
| 82345-32020 |
EL3#..AR,LIM,ZX NO.1,3P CONNECTER |
2 | ||
| 82345-32020 |
EL3#..(4F,4FC,5F)..(AR,LIM,ZX) NO.1,3P CONNECTER |
2 | ||
| 82671 - BLOCK, JUNCTION | ||||
| 82660-12130 |
EL3#,NL30 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-22280 |
EL3#,NL30 |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EL3#,NL30 ALTERNATOR |
1 | ||
| 82823-20030 |
EL3# STARTER |
1 | ||
| 82823-20030 |
EL3#;NL30..5F STARTER |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-22050 |
EL3#,NL30 ALTERNATOR |
1 | ||
| 82823-20030 |
EL3# STARTER |
1 | ||
| 82823-20030 |
EL3#;NL30..5F STARTER |
1 | ||
| Common parts | ||||
| 90105-10122 | ||||
| 90109-08146 | ||||
| 90119-06005 | ||||
| 90119-06053 | ||||
| 91611-60812 | ||||
| 91651-40816 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||

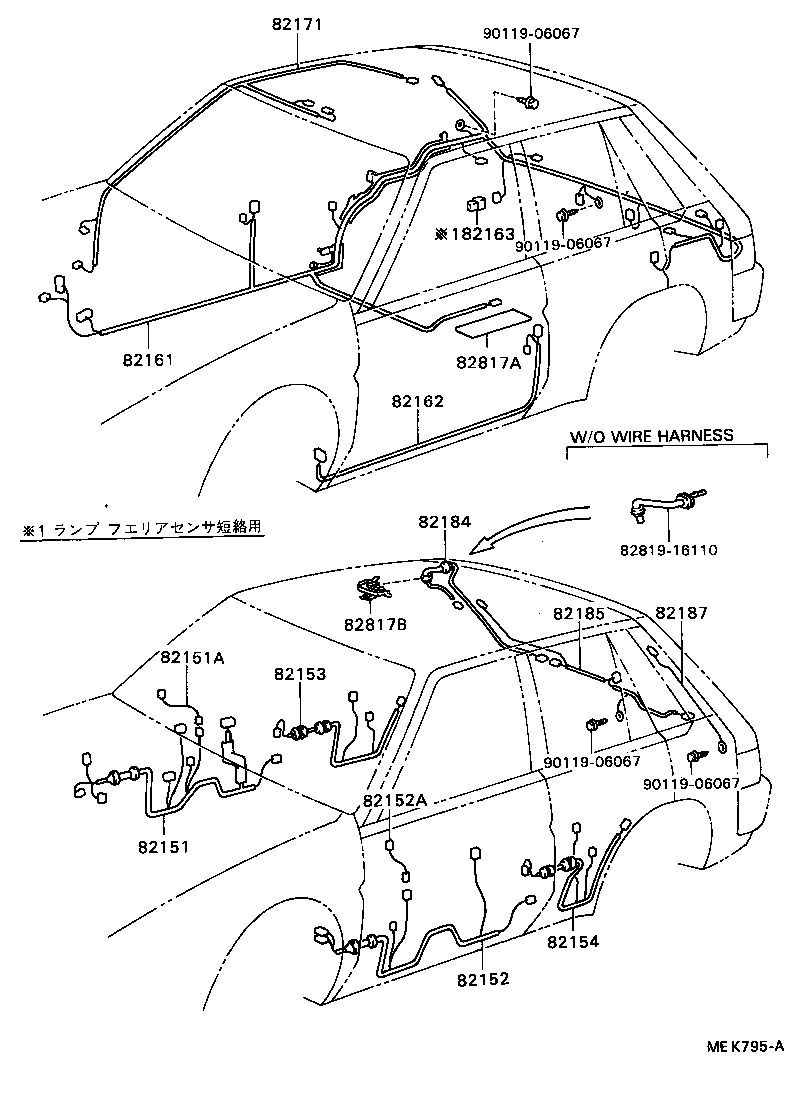

ILLUST NO. 2 OF 3(8805- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-16060 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82151-16050 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82151A - WIRE, FRONT DOOR, NO.2, RH | ||||
| 82151-16070 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-16050 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) OR ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ- & ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82152-16040 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82152A - WIRE, FRONT DOOR, NO.2, LH | ||||
| 82151-16070 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-16010 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-16010 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-16300 |
EL31,NL30..5DS..ZX |
1 | ||
| 82161-16310 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-16200 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-16060 |
EL3#,NL30 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-16130 |
EL31,NL30..5DS;EL30..5DS..(GL,LIM) |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-16140 |
EL31,NL30..5DS;EL30..5DS..(GL,LIM) |
1 | ||
| 82185-16150 |
EL31..5DS ｱﾘ(ﾘﾔ ｶﾝｹﾂ ﾜｲﾊﾟ) |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-16050 |
EL31,NL30..5DS;EL30..5DS..(GL,LIM) |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-16100 |
EL3#,NL30 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16200 |
EL31,NL30..5DS;EL30..5DS..(GL,LIM) |
1 | ||
| Common parts | ||||
| 82819-16110 | ||||
| 90119-06067 | ||||
ILLUST NO. 3 OF 3(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10250 | ||||
| 82711-10290 | ||||
| 82711-12200 | ||||
| 82711-14110 | ||||
| 82711-16370 | ||||
| 82711-16420 | ||||
| 82711-16430 | ||||
| 82711-16450 | ||||
| 82711-16460 | ||||
| 82711-16480 | ||||
| 82711-16490 | ||||
| 82711-20610 | ||||
| 82711-22300 | ||||
| 82711-22540 | ||||
| 82711-24010 | ||||
| 82711-24070 | ||||
| 82711-30550 | ||||
| 82711-30660 | ||||
