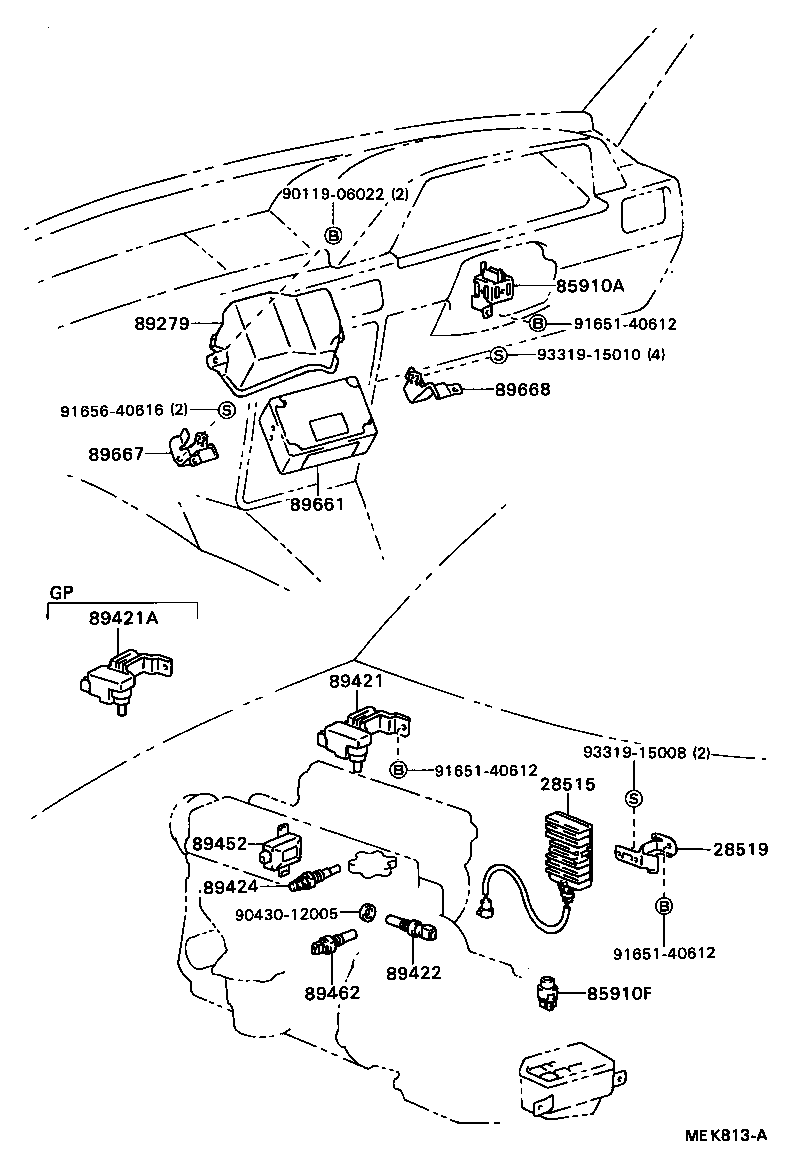

Toyota Corolla 2 EL31 ELECTRONIC FUEL INJECTION SYSTEM

Part #	Description	Period	Qty
28515 - RESISTOR, SOLENOID
28515-16020	3ETE..EL31	05/1988 - 09/1990	1
28519 - BRACKET, SOLENOID RESISTOR
28519-11010	3ETE..EL31	05/1988 - 09/1990	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
85910-16010	EL31..EFI,TBO	05/1988 - 09/1990	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004	EL31..EFI,TBO	05/1988 - 09/1990	1
89279 - COVER, ENGINE CONTROL COMPUTER
89279-16040	EL31..EFI,TBO	05/1988 - 09/1990	1
89421A - SENSOR, TURBO PRESSURE
89421-10020	EL31..TBO	05/1988 - 09/1990	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010	EL31..EFI,TBO	05/1988 - 09/1990	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010	EL31..TBO	05/1988 - 09/1990	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-12010	EL31..EFI,TBO	05/1988 - 09/1990	1
89462 - SWITCH, START INJECTOR TIME
89462-20030	EL31..EFI,TBO	05/1988 - 09/1990	1
89661 - COMPUTER, ENGINE CONTROL
89661-16012	EL31..TBO	05/1988 - 09/1990	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-10010	EL31..EFI,TBO	05/1988 - 09/1990	1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-10010	EL31..EFI,TBO	05/1988 - 09/1990	1
Common parts
90119-06022
90430-12005
91651-40612
91656-40616
93319-15008
93319-15010

EL31-KGPXT (1988)
