Toyota Corolla 2 EL31 METER - JDM Part Detective

Part #	Description	Period	Qty
83100B - BULB, COMBINATION METER, NO.1
90981-11018	EL31..AR,GP,SRI 12V 1.2W ｿｹｯﾄ無し	05/1988 - 09/1990	4
99132-12034	EL31..EFI,TBO 12V 3.4W	05/1988 - 09/1990	11
83100B - BULB, COMBINATION METER, NO.1
90981-11018	EL31..AR,GP,SRI 12V 1.2W ｿｹｯﾄ無し	05/1988 - 09/1990	4
99132-12034	EL31..EFI,TBO 12V 3.4W	05/1988 - 09/1990	11
83100B - BULB, COMBINATION METER, NO.1
90981-11018	EL31..AR,GP,SRI 12V 1.2W ｿｹｯﾄ無し	05/1988 - 09/1990	4
99132-12034	EL31..EFI,TBO 12V 3.4W	05/1988 - 09/1990	11
83100G - GLASS, COMBINATION METER
83138-16180	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	EL31..EFI,TBO ﾊﾞﾙﾌﾞ=12V 3.4W	05/1988 - 09/1990	11
83101-14040	EL31..AR,GP,SRI ﾊﾞﾙﾌﾞ=12V 1.4W	05/1988 - 09/1990	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	EL31..EFI,TBO ﾊﾞﾙﾌﾞ=12V 3.4W	05/1988 - 09/1990	11
83101-14040	EL31..AR,GP,SRI ﾊﾞﾙﾌﾞ=12V 1.4W	05/1988 - 09/1990	4
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040	EL31..EFI,TBO ﾊﾞﾙﾌﾞ=12V 3.4W	05/1988 - 09/1990	11
83101-14040	EL31..AR,GP,SRI ﾊﾞﾙﾌﾞ=12V 1.4W	05/1988 - 09/1990	4
83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2
83247-16420	EL31..TBO	05/1988 - 09/1990	1
83110 - SPEEDOMETER ASSY
83110-1G180	EL31..EFI,TBO	05/1988 - 09/1990	1
83132 - CASE, COMBINATION METER
83132-16280	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83145 - LENS, METER, NO.1
83145-16320	EL31..AR,GP,SRI NO.2	05/1988 - 09/1990	1
83145-16300	EL31..AR,GP,SRI NO.1	05/1988 - 09/1990	1
83145 - LENS, METER, NO.1
83145-16320	EL31..AR,GP,SRI NO.2	05/1988 - 09/1990	1
83145-16300	EL31..AR,GP,SRI NO.1	05/1988 - 09/1990	1
83248 - CHIME, SPEED WARNING
86640-16060	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83270 - TACHOMETER ASSY, ENGINE
83242-16060	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83242-16100	EL31..TBO ｱﾘ(TEMS)	05/1988 - 09/1990	1
83310 - GAGE ASSY, FUEL RECEIVER
83243-16160	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-16060	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83490 - GAGE ASSY, AIR PRESSURE RECEIVER
83558-16040	EL31..TBO	05/1988 - 09/1990	1
83909 - KNOB, CLOCK
83909-22180	NL30;EL3#..AR,GL,GP,SRI,ZX	05/1988 - 09/1990	1
83910 - CLOCK ASSY
83910-16150	EL31..AR,GP,SRI	05/1988 - 09/1990	1
83919 - SCREW, CLOCK
83919-12230	NL30;EL3#..AR,GL,GP,SRI,ZX	05/1988 - 09/1990	1
Common parts
83161-20080
83161-20100
83161-20180
83161-20400
83161-20480
90167-50028

Part #	Description	Period	Qty
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16240	EL31,NL30..4FC NO.2	05/1988 - 09/1990	1
83710-16191	EL31..4FC NO.1	05/1988 - 09/1990	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16240	EL31,NL30..4FC NO.2	05/1988 - 09/1990	1
83710-16191	EL31..4FC NO.1	05/1988 - 09/1990	1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16240	EL31,NL30..4FC NO.2	05/1988 - 09/1990	1
83710-16191	EL31..4FC NO.1	05/1988 - 09/1990	1
Common parts
83791-16060
83791-16080
83791-30060
91651-40614

EL31-KGPXT (1988)

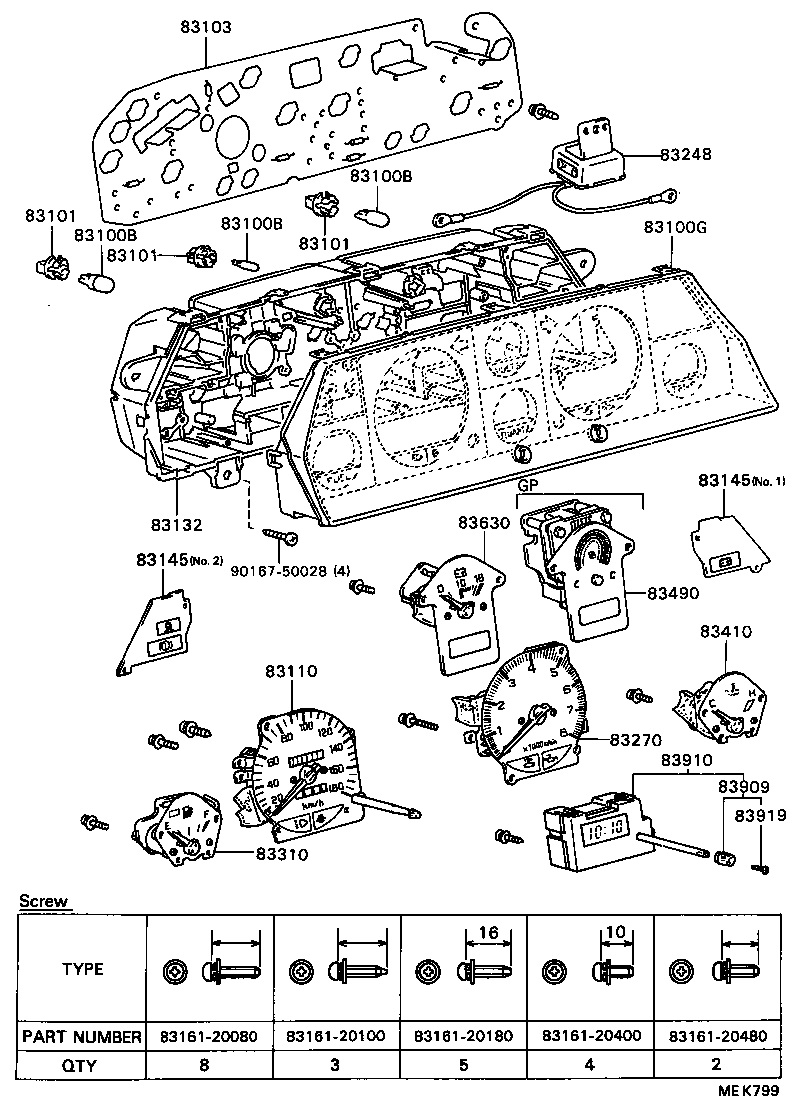

ILLUST NO. 1 OF 3(8805- )AR,GP,SRI

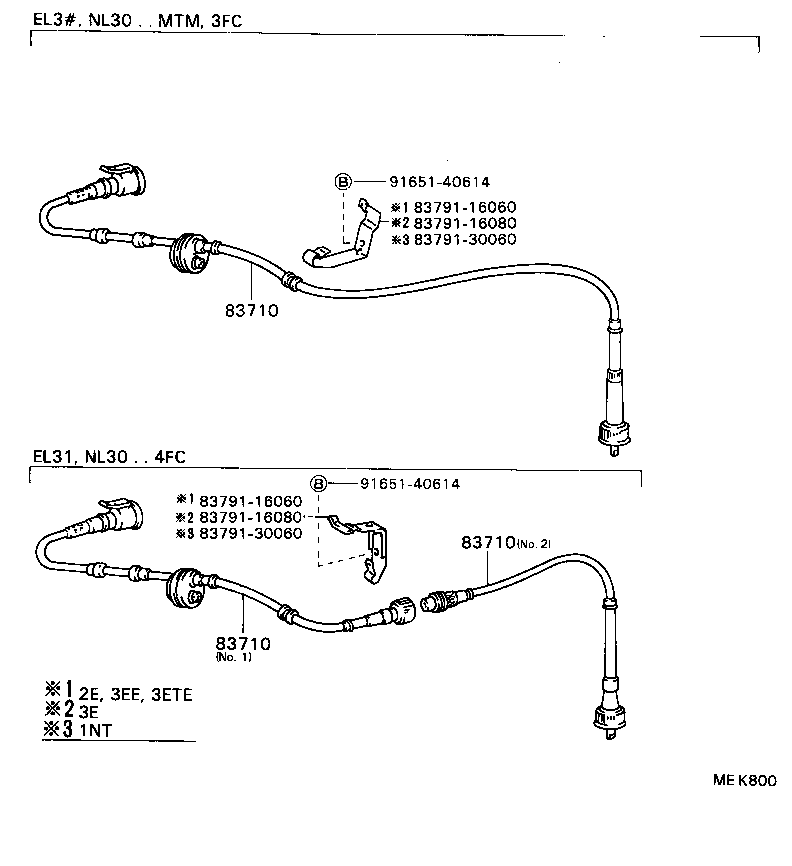

ILLUST NO. 2 OF 3(8805- )
