EL31-KGPSS (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 3E
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )GP,SR

Click highlighted areas on diagram

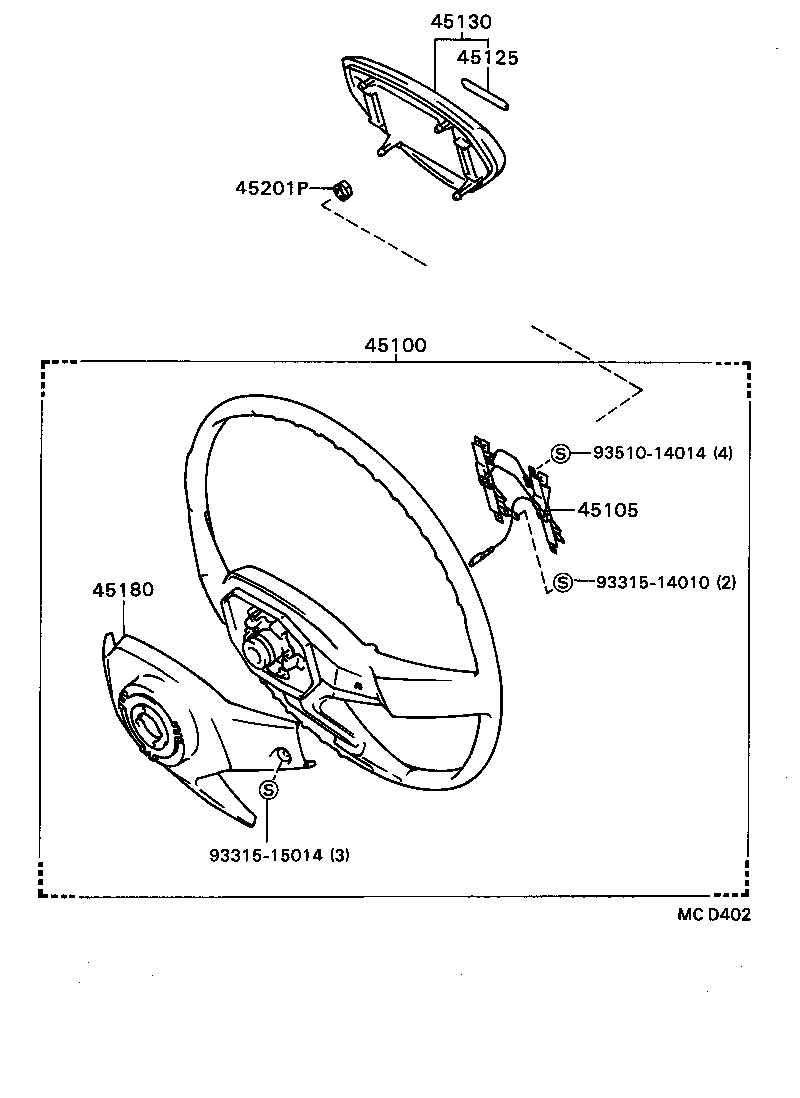

diagram 45100 45105 45125 45130 45180 45201P 9331514010 9331515014 9351014014
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-1615001

EL31..GP,SR

BLACK,NEW BLACK,TRIM2#

 1
45100-1615004

EL31..GP,SR

BLUE,BLUE,TRIM8#

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-16060

EL31..GP,SR

 1
45125 - MARK, STEERING WHEEL PAD
45125-16260

EL31..SR

 1
45130 - BUTTON ASSY, HORN
45130-1616004

EL31..SR

BLUE,BLUE,TRIM8#

 1
45130-1616001

EL31..SR

BLACK,NEW BLACK,TRIM2#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-1603004

EL31..GP,SR

BLUE,BLUE,TRIM8#

 1
45180-1603001

EL31..GP,SR

BLACK,NEW BLACK,TRIM2#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

EL3#,NL30

 1
Common parts
93315-14010
93315-15014
93510-14014
