EL31-KGPSE (1988)
Toyota Corolla 2

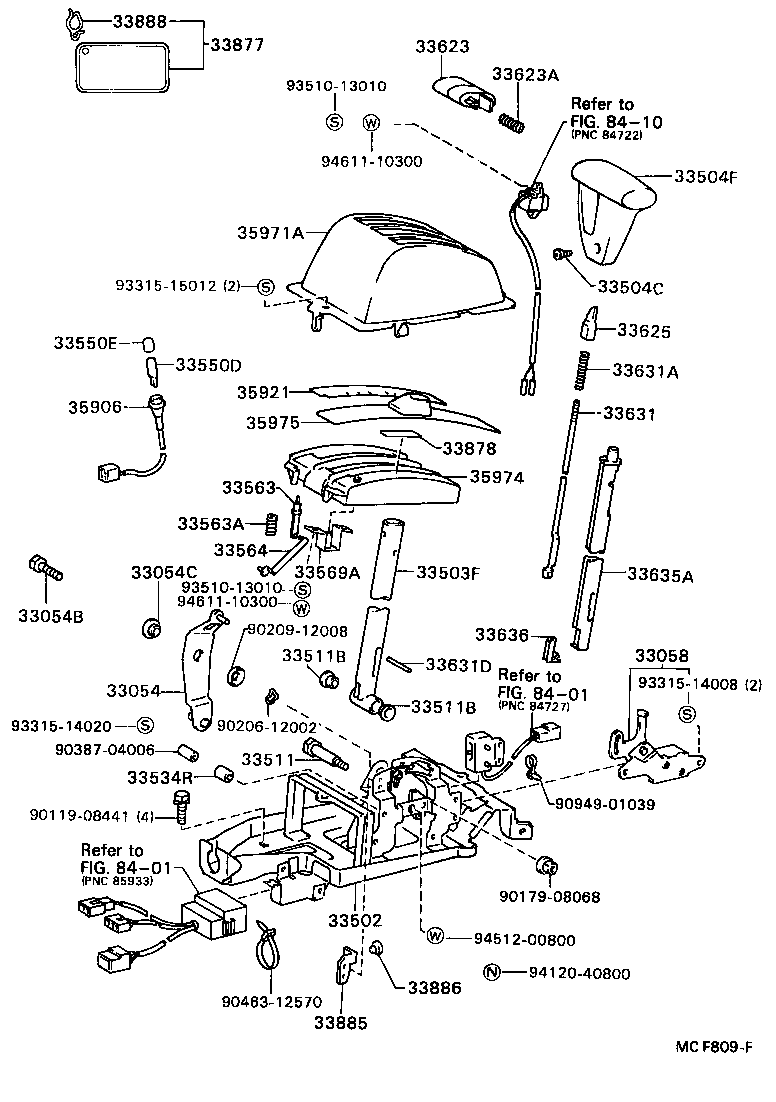

ILLUST NO. 1 OF 2(8805- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33054 - LEVER SUB-ASSY, SHIFT, NO.2(FOR FLOOR SHIFT) | ||||
| 33054-16020 |
EL3#,NL30..ATM |
1 | ||
| 33054B - BOLT(FOR SHIFT LEVER NO.2) | ||||
| 90119-08606 |
EL3#,NL30..ATM |
1 | ||
| 33054C - BUSH(FOR SHIFT LEVER NO.2) | ||||
| 90386-12029 |
EL3#,NL30..ATM |
1 | ||
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-16010 |
EL3#,NL30..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-16131 |
EL3#,NL30..ATM |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-16211 |
EL31,NL30..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
EL3#,NL30..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-2008014 |
EL31,NL30..4FC BLUE,TRIM8# |
1 | ||
| 33542-2008001 |
EL31,NL30..4FC BLACK,TRIM2# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-20240 |
EL3#,NL30..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
EL3#,NL30..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-11010 |
EL3#,NL30..ATM |
2 | ||
| 33534R - CUSHION (FOR SELECTING BELLCRANK NO.1) | ||||
| 90540-06030 |
EL3#,NL30..ATM |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11030 |
EL3#,NL30..ATM 14V 1.12W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04023 |
EL3#,NL30..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-16010 |
EL3#,NL30..ATM |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-07043 |
EL3#,NL30..ATM |
1 | ||
| 33564 - LINK, SHIFT LOCK RELEASE, NO.1 | ||||
| 33564-16010 |
EL3#,NL30..ATM |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-16010 |
EL3#,NL30..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-2002014 |
EL31,NL30..4FC BLUE,TRIM8# |
1 | ||
| 33623-2002001 |
EL31,NL30..4FC BLACK,TRIM2# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
EL3#,NL30..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-24010 |
EL31,NL30..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-10060 |
EL31,NL30..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
EL31,NL30..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
EL3#,NL30..ATM |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-16020 |
EL31,NL30..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
EL31,NL30..4FC |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-16010 |
EL3#,NL30..ATM |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-16010 |
EL3#,NL30..ATM |
1 | ||
| 33885 - BRACKET, SHIFT LEVER STOPPER | ||||
| 33885-16020 |
EL31,NL30..4FC |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
EL3#,NL30..ATM |
1 | ||
| 33888 - CLAMP, SHIFT LOCK INFORMATION LABEL | ||||
| 33888-16010 |
EL3#,NL30..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-16041 |
EL3#,NL30..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-16101 |
EL3#,NL30..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-1605104 |
EL3#,NL30..ATM BLUE,TRIM8# |
1 | ||
| 35971-1605101 |
EL3#,NL30..ATM NEW BLACK,TRIM2# |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-16051 |
EL3#,NL30..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-16060 |
EL31,NL30..4FC |
1 | ||
| Common parts | ||||
| 90119-08441 | ||||
| 90179-08068 | ||||
| 90206-12002 | ||||
| 90209-12008 | ||||
| 90387-04006 | ||||
| 90463-12570 | ||||
| 90949-01039 | ||||
| 93315-14008 | ||||
| 93315-14020 | ||||
| 93315-15012 | ||||
| 93510-13010 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8410 | ||||

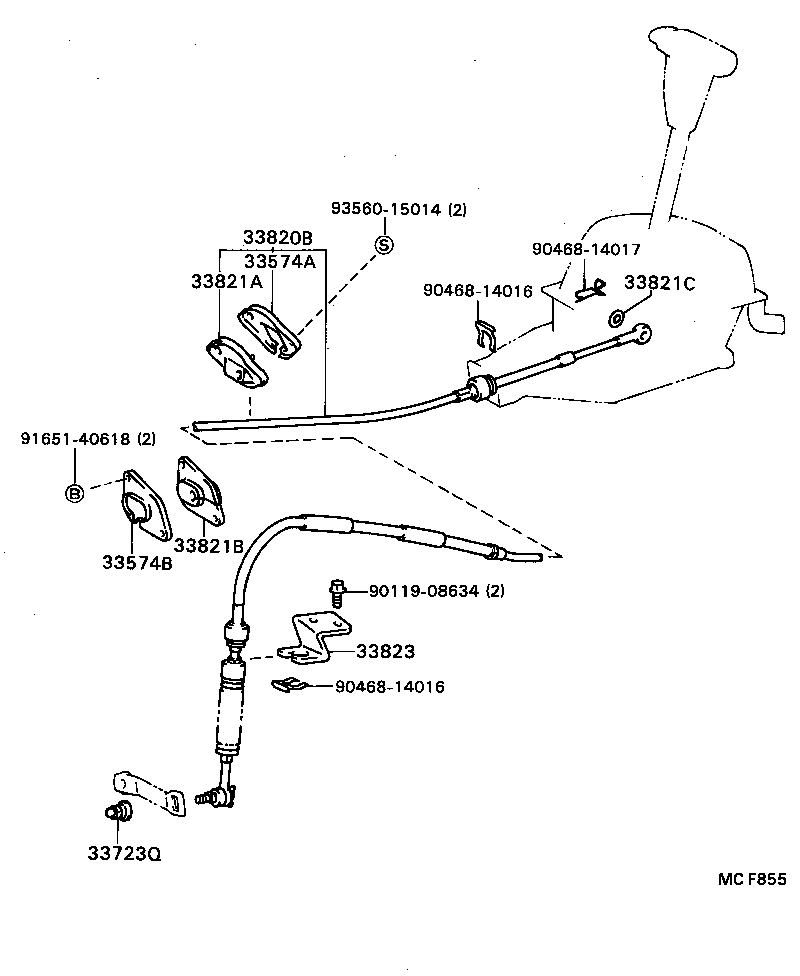

ILLUST NO. 2 OF 2(8805- )ATM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33574A - RETAINER, SHIFT CABLE GROMMET, NO.1 | ||||
| 33574-10010 |
EL3#,NL30 |
1 | ||
| 33574B - RETAINER, SHIFT CABLE GROMMET, NO.2 | ||||
| 33574-10030 |
EL3#,NL30 |
1 | ||
| 33723Q - NUT (FOR CONNECTING ROD SWIVEL) | ||||
| 90179-08061 |
EL3#,NL30..ATM |
1 | ||
| 90179-08070 |
EL3#,NL30..ATM |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-16060 |
EL31..4FC |
1 | ||
| 33821A - GROMMET, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01281 |
EL3#,NL30..ATM |
1 | ||
| 33821B - GROMMET, NO.2 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90480-01288 |
EL3#,NL30..ATM |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-10042 |
EL3#,NL30..ATM |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-16010 |
EL31,NL30..4FC |
1 | ||
| Common parts | ||||
| 90119-08634 | ||||
| 90468-14016 | ||||
| 90468-14017 | ||||
| 91651-40618 | ||||
| 93560-15014 | ||||
