EL31-KGPMS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 3E
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8805- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67433 67434 67491A 67492A 67495A 67496A 67499 67831 67832 67833C 67837A 67838A 67861 67862 67867C 67868C 68101 68102 68141 68160C 68161A 68170 68170A 68210C 68610 68617 9017905032 9033335004 9054109006 9054109053 9165140612 9165640616
Part # Description Qty Price
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-16200

EL3#..3DS..(AR,GP,LIM,SRI,ZX)

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
67001-16150

EL3#..3DS..(AR,GP,LIM,SRI,ZX)

 1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-16110

EL31..3DS

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ)

 1
67002-16110

EL3#..3DS..(AR,GP,LIM,SRI,ZX)

 1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-16160

EL3#,NL30..3DS

 1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-16140

EL3#,NL30..3DS

 1
67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH
67433-16040

EL3#,NL30..3DS

 1
67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH
67434-16040

EL3#,NL30..3DS

 1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-16050

EL3#,NL30..3DS

 1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-16050

EL3#,NL30..3DS

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-16030

EL3#..3DS..(AR,GP,LIM,SRI,ZX)

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-16030

EL3#..3DS..(AR,GP,LIM,SRI,ZX)

 1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-12020

EL3#,NL30..3DS

 2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-16100

EL3#,NL30..3DS

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-16100

EL3#,NL30..3DS

 1
67833C - COVER, FRONT DOOR SPEAKER HOLE
67833-16010

EL31..3DS..(GP,SRI,ZX)

 2
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-16240

EL3#,NL30..3DS

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-16240

EL3#,NL30..3DS

 1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-30040

EL3#,NL30..3DS

 21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-30040

EL3#,NL30..3DS

 21
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-16140

EL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,ZX)

*TT,厚さ=3.5

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-16140

EL3#,NL30..3DS..(AR,GL,GP,LIM,SRI,ZX)

*TT,厚さ=3.5

 1
68141 - RUN, FRONT DOOR GLASS
68141-16150

EL3#,NL30..3DS

 2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-16080

EL3#,NL30..3DS

 2
68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)
68211-10030

EL3#,NL30..3DS

 14
68610 - CHECK ASSY, FRONT DOOR
68610-10020

EL3#,NL30

 2
68617 - PIN, FRONT DOOR CHECK
68617-90A00

EL3#,NL30

 2
Common parts
90179-05032
90333-35004
90541-09006
90541-09053
91651-40612
91656-40616

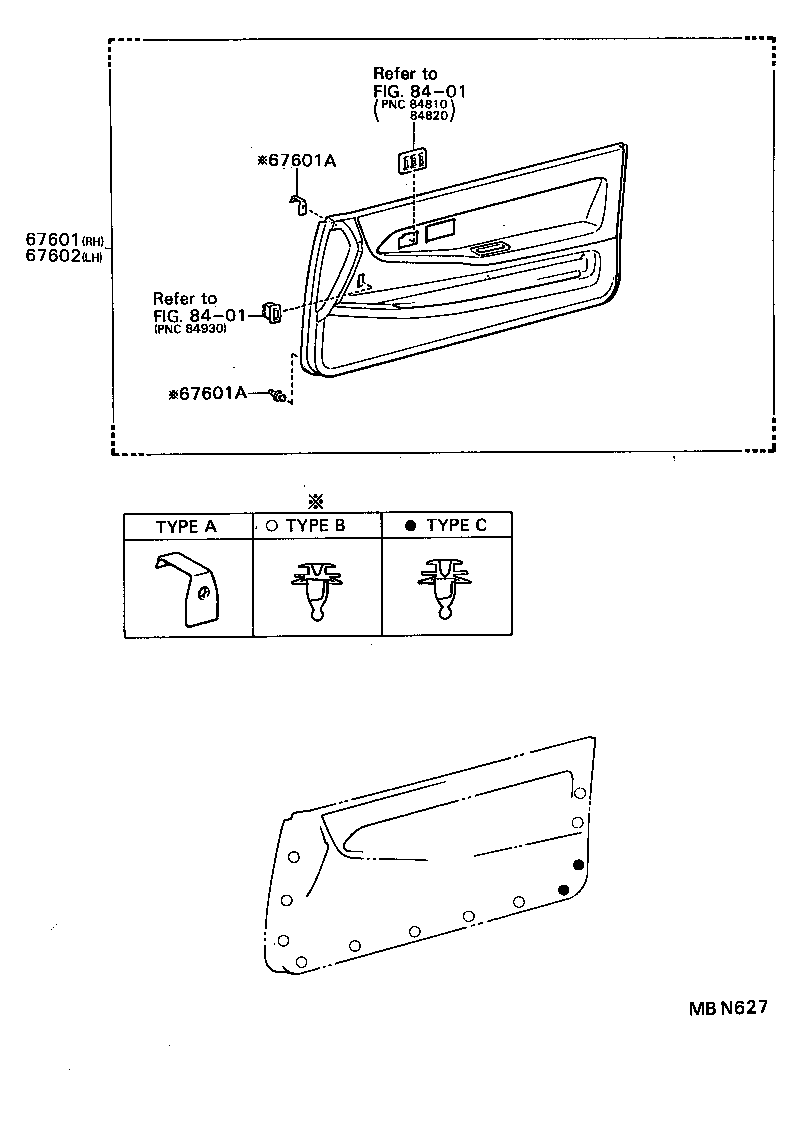

ILLUST NO. 2 OF 2(8805- )3DS

Click highlighted areas on diagram

diagram 67601 67601A 67601A 67602 8401 8401
Part # Description Qty Price
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-1633001

EL3#,NL30..3DS..(AR,TX)

NEW BLACK,TRIM2#

 1
67610-1633014

EL3#,NL30..3DS..(AR,CD,TX)

BLUE,TRIM8#

 1
67610-1686001

EL31..AR

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,BLACK,TRIM2#

 1
67610-1686004

EL31..AR

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8#

 1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16050

EL3#,NL30..3DS

ﾀｲﾌﾟ A

 2
67771-32010

EL3#,NL30..3DS

ﾀｲﾌﾟ B

 20
67771-14030

EL3#,NL30..3DS

ﾀｲﾌﾟ C

 4
67771-14030

EL3#,NL30..3DS

ﾀｲﾌﾟ C

 12
67771-32010

EL3#,NL30..3DS

ﾀｲﾌﾟ B

 12
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-16050

EL3#,NL30..3DS

ﾀｲﾌﾟ A

 2
67771-32010

EL3#,NL30..3DS

ﾀｲﾌﾟ B

 20
67771-14030

EL3#,NL30..3DS

ﾀｲﾌﾟ C

 4
67771-14030

EL3#,NL30..3DS

ﾀｲﾌﾟ C

 12
67771-32010

EL3#,NL30..3DS

ﾀｲﾌﾟ B

 12
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-1673001

EL31..AR

BLACK,TRIM2#

 1
67620-1673004

EL31..AR

ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8#

 1
67620-1624001

EL3#,NL30..3DS..(AR,TX)

NEW BLACK,TRIM2#

 1
67620-1624014

EL3#,NL30..3DS..(AR,CD,TX)

BLUE,TRIM8#

 1
Linked diagrams
8401
