EL31-KGPMS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 3E
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )4FC

Click highlighted areas on diagram

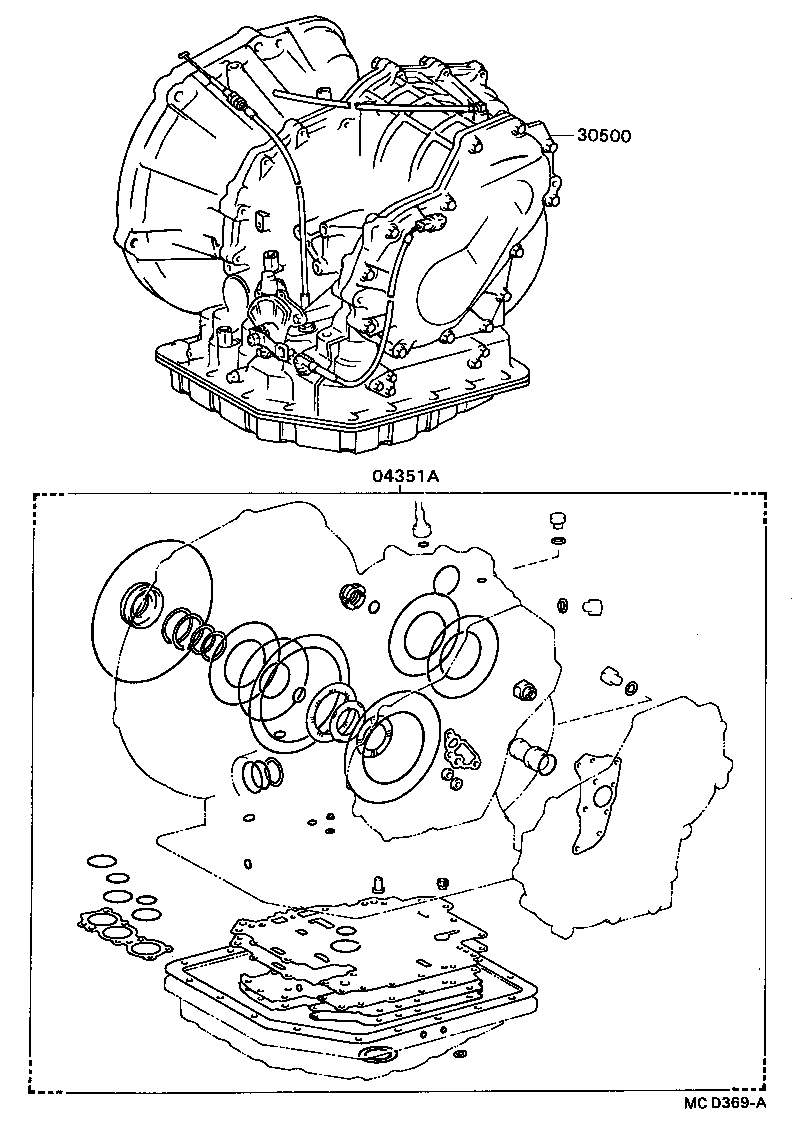

diagram 04351A 30500
Part # Description Qty Price
04351A - GASKET KIT, TRANSAXLE OVERHAUL(ATM)
04351-10040

EL31,NL30..4FC

 1
30500 - TRANSAXLE ASSY, AUTOMATIC
30500-16160

EL31..4FC..CBR

 1
