EL31-KGMXT (1988)
Toyota Corolla 2
Production
May 1988
-
Sep 1990
Engine
3ETE
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )2E,3E,3EE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-10020 |
3E,3EE..EL31 |
1 | ||
| 12204 - VALVE SUB-ASSY, VENTILATION | ||||
| 12204-10020 |
3E,3EE..EL31 |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18006 |
2E,3E,3EE..EL3# |
1 | ||
| 90480-18001 |
2E,3E,3EE..EL3# |
1 | ||
| 12204A - GROMMET(FOR VENTILATION SYSTEM) | ||||
| 90480-18006 |
2E,3E,3EE..EL3# |
1 | ||
| 90480-18001 |
2E,3E,3EE..EL3# |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-11050 |
2E,3E..EL3# |
1 | ||
| 12261-11040 |
3ETE..EL31 |
1 | ||
| 12261-11050 |
3E..EL31 |
1 | ||
| 12261 - HOSE, VENTILATION | ||||
| 12261-11050 |
2E,3E..EL3# |
1 | ||
| 12261-11040 |
3ETE..EL31 |
1 | ||
| 12261-11050 |
3E..EL31 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-11040 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11010 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11040 |
3ETE..EL31..5F |
1 | ||
| 12262-10020 |
2E,3E..EL3# |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-11040 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11010 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11040 |
3ETE..EL31..5F |
1 | ||
| 12262-10020 |
2E,3E..EL3# |
1 | ||

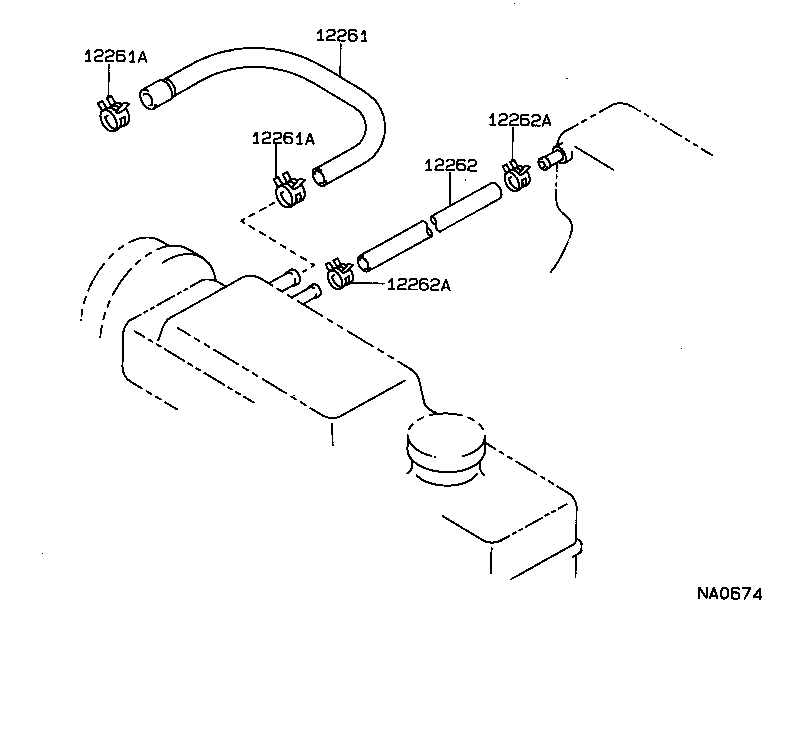

(8805- )3ETE..5F
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12261 - HOSE, VENTILATION | ||||
| 12261-11050 |
2E,3E..EL3# |
1 | ||
| 12261-11040 |
3ETE..EL31 |
1 | ||
| 12261-11050 |
3E..EL31 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-17006 |
3ETE..EL31 |
1 | ||
| 12261A - CLIP OR CLAMP(FOR VENTILATION HOSE) | ||||
| 90467-17006 |
3ETE..EL31 |
1 | ||
| 12262 - HOSE, VENTILATION, NO.2 | ||||
| 12262-11040 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11010 |
3EE..EL31;3ETE..EL31..5F |
1 | ||
| 12262-11040 |
3ETE..EL31..5F |
1 | ||
| 12262-10020 |
2E,3E..EL3# |
1 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-13036 |
3ETE..EL31..5F |
2 | ||
| 12262A - CLIP(FOR VENTILATION HOSE NO.2) | ||||
| 90467-13036 |
3ETE..EL31..5F |
2 | ||
