EL31-KGMSS (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

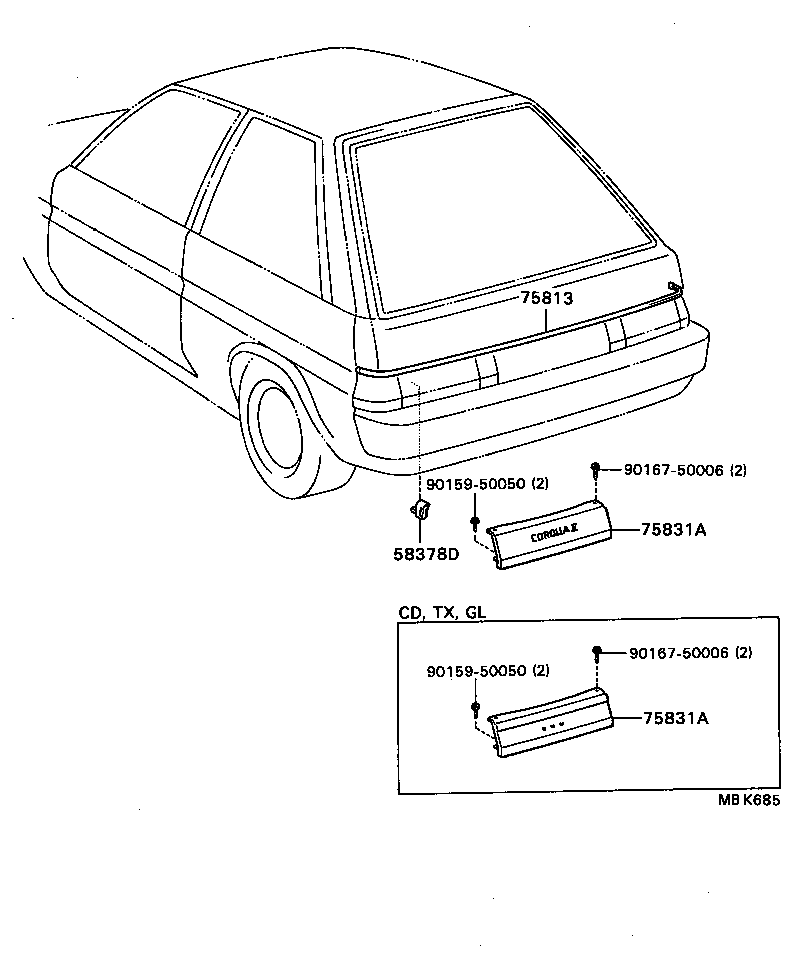

Click highlighted areas on diagram

diagram 58378D 75813 75831A 75831A 9015950050 9015950050 9016750006 9016750006
Part # Description Qty Price
58378D - BRACKET, REAR COMBINATION LAMP
58378-16050

EL3#,NL30

 2
75831A - PANEL, LOWER BACK FINISH, CENTER
75082-16010

EL3#..3DS..(GP,LIM,SR,ZX)

 1
75831A - PANEL, LOWER BACK FINISH, CENTER
75082-16010

EL3#..3DS..(GP,LIM,SR,ZX)

 1
Common parts
90159-50050
90167-50006

(8605- )

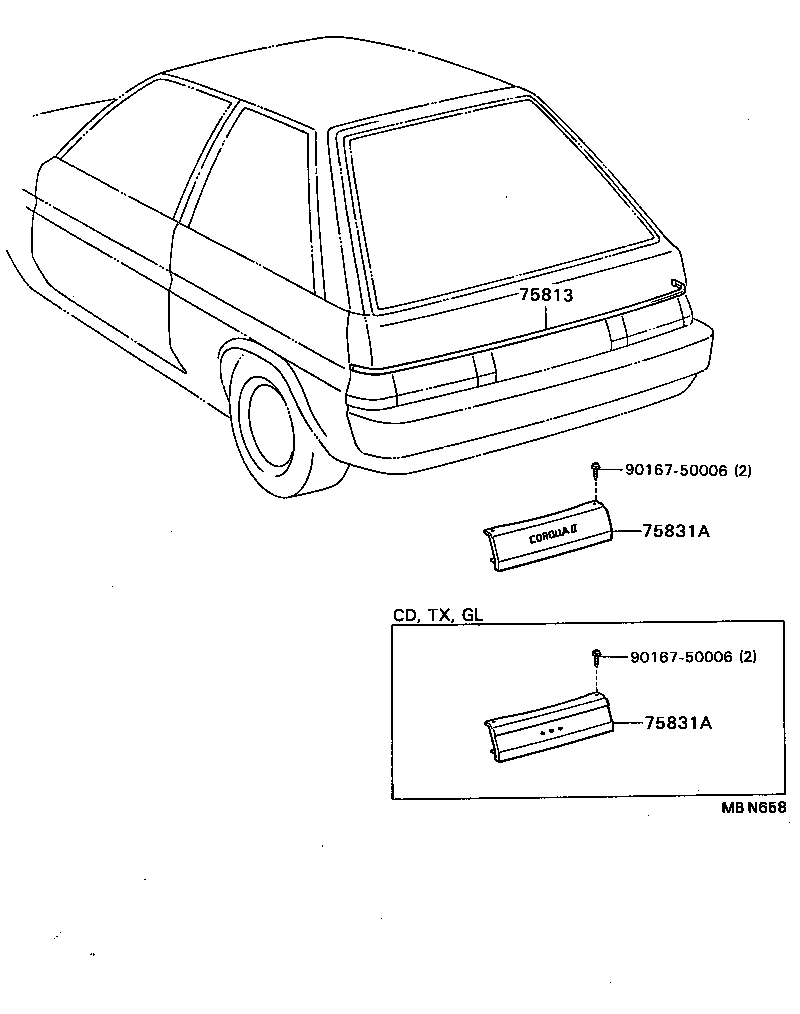

Click highlighted areas on diagram

diagram 75813 75831A 75831A 9016750006 9016750006
Part # Description Qty Price
Common parts
90167-50006
