EL31-KGMMS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 3E
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )

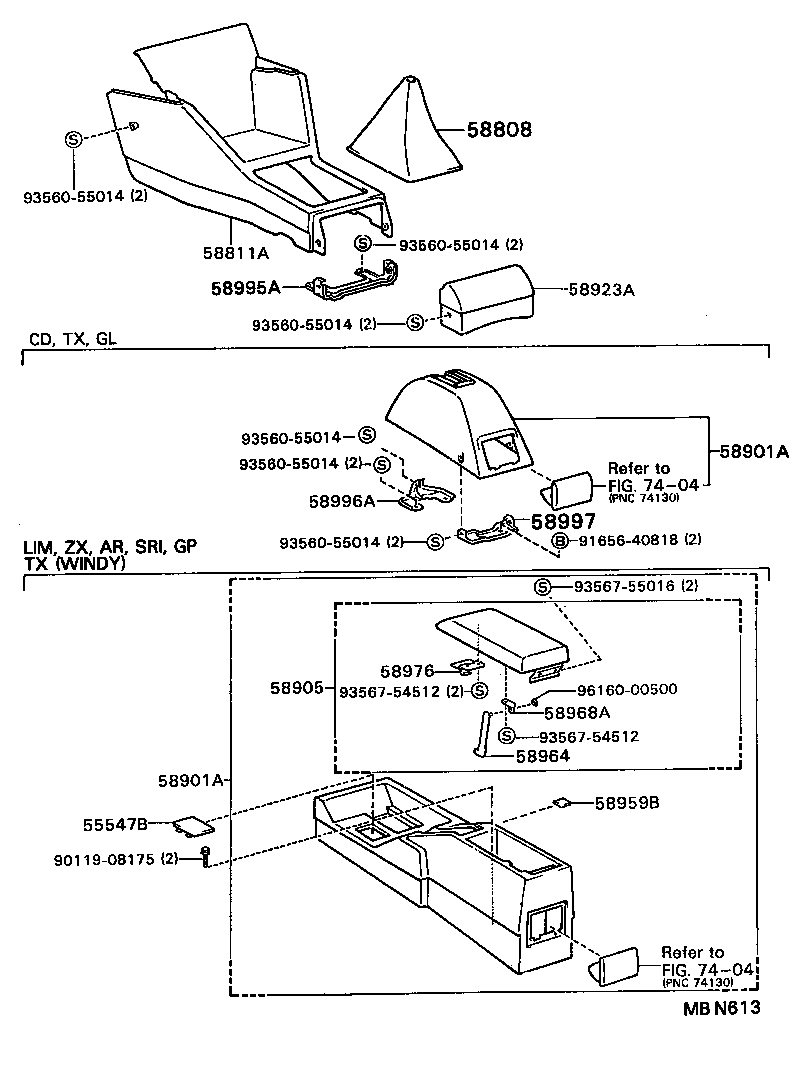

Click highlighted areas on diagram

diagram 55547B 58808 58811A 58901A 58901A 58905 58923A 58959B 58964 58968A 58976 58995A 58996A 58997 7404 7404 9011908175 9165640818 9356055014 9356055014 9356055014 9356055014 9356055014 9356055014 9356754512 9356754512 9356755016 9616000500
Part # Description Qty Price
55547B - COVER, REMOTE CONTROL MIRROR HOLE
74267-2401014

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLUE,TRIM8#

 1
74267-2401011

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLACK,TRIM2#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-1607004

EL3#,NL30..MTM..(CBR,EFI,TD)

BLUE,TRIM8#

 1
58808-1607001

EL3#,NL30..MTM..(AR,GL,LIM,SRI,TX,ZX)

BLACK,TRIM2#

 1
58811A - BOX, CONSOLE, FRONT
58811-1606004

EL3#,NL30

BLUE,TRIM8#

 1
58811-1607001

EL30..5DS;EL30..3DS..(GL,LIM);EL31,NL30..CBR,TBO,TD

ｶﾝﾚｲﾁ ｼﾖｳ,BLACK,TRIM2#

 1
58811-1607004

EL30..5DS;EL31,NL30..CBR,TBO,TD;EL30..3DS..(CD,GL,LIM)

ｶﾝﾚｲﾁ ｼﾖｳ,BLUE,TRIM8#

 1
58811-1606001

EL3#,NL30..AR,GL,GP,LIM,SRI,TX,ZX

BLACK,TRIM2#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1604001

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLACK,TRIM2#

 1
58901-1604004

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLUE,TRIM8#

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-1604001

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLACK,TRIM2#

 1
58901-1604004

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLUE,TRIM8#

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-1601001

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLACK,TRIM2#

 1
58905-1601004

EL3#,NL30..AR,GP,LIM,SRI,ZX

BLUE,TRIM8#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-16010

EL3#,NL30..AR,GP,LIM,SRI,ZX

 2
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-30030

EL3#,NL30..AR,GP,LIM,SRI,ZX

 1
58968A - BRACKET, CONSOLE DOOR STOPPER
58968-89101

EL3#,NL30..AR,GP,LIM,SRI,ZX

 1
58976 - STRIKER, CONSOLE COMPARTMENT DOOR LOCK
58976-22020

EL3#,NL30..AR,GP,LIM,SRI,ZX

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-16050

EL3#,NL30..MTM

 1
Common parts
90119-08175
91656-40818
93560-55014
93567-54512
93567-55016
96160-00500
Linked diagrams
7404
