EL30-KHKNS (1988)
Toyota Corolla 2

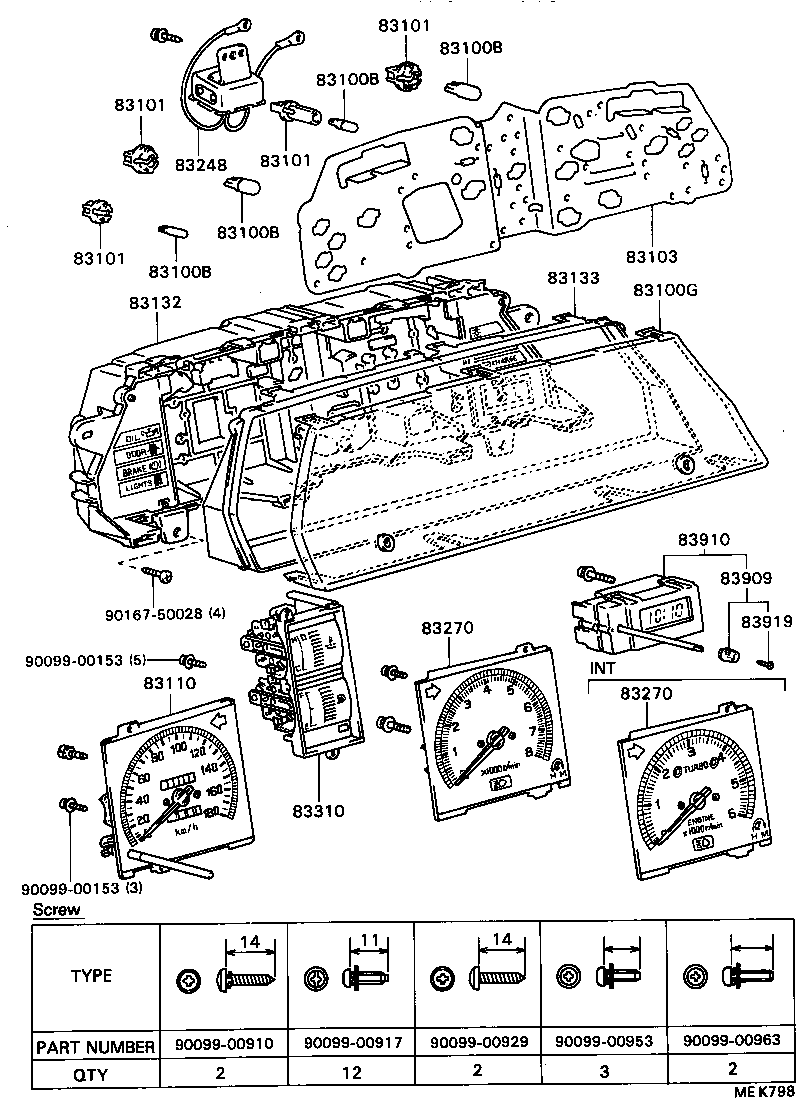

ILLUST NO. 1 OF 3(8805- )NL30 ; (8805- )EL3#..GL,ZX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL30..GL 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 99132-12034 |
EL30..GL;NL30..GL,TX 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL30..GL 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 99132-12034 |
EL30..GL;NL30..GL,TX 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL30..GL 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 99132-12034 |
EL30..GL;NL30..GL,TX 12V 3.4W |
3 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
EL30..GL 12V 1.2W ｿｹｯﾄ無し |
5 | ||
| 99132-12034 |
EL30..GL;NL30..GL,TX 12V 3.4W |
3 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83138-16430 |
NL30;EL3#..GL,ZX |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL30..GL ﾊﾞﾙﾌﾞ=12V 1.4W |
5 | ||
| 83101-14030 |
EL30..GL;NL30..GL,TX ﾊﾞﾙﾌﾞ=12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL30..GL ﾊﾞﾙﾌﾞ=12V 1.4W |
5 | ||
| 83101-14030 |
EL30..GL;NL30..GL,TX ﾊﾞﾙﾌﾞ=12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL30..GL ﾊﾞﾙﾌﾞ=12V 1.4W |
5 | ||
| 83101-14030 |
EL30..GL;NL30..GL,TX ﾊﾞﾙﾌﾞ=12V 3.4W |
7 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
EL30..GL ﾊﾞﾙﾌﾞ=12V 1.4W |
5 | ||
| 83101-14030 |
EL30..GL;NL30..GL,TX ﾊﾞﾙﾌﾞ=12V 3.4W |
7 | ||
| 83103 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2 | ||||
| 83247-1G850 |
EL30..GL |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1G160 |
EL3#..GL,ZX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-1G130 |
EL30..GL |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-16890 |
NL30;EL3#..GL,ZX |
1 | ||
| 83248 - CHIME, SPEED WARNING | ||||
| 86640-16050 |
EL3#,NL30..CD,GL,LIM,TX,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16650 |
EL3#..GL,ZX |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-16650 |
EL3#..GL,ZX |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-16790 |
EL30..GL;NL30..GL,TX |
1 | ||
| 83909 - KNOB, CLOCK | ||||
| 83909-22180 |
NL30;EL3#..AR,GL,GP,SRI,ZX |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-16140 |
NL30;EL3#..GL,ZX |
1 | ||
| 83919 - SCREW, CLOCK | ||||
| 83919-12230 |
NL30;EL3#..AR,GL,GP,SRI,ZX |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00910 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 90099-00953 | ||||
| 90099-00963 | ||||
| 90167-50028 | ||||
ILLUST NO. 2 OF 3(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16251 |
EL3#..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16251 |
EL3#..MTM |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-16251 |
EL3#..MTM |
1 | ||
| Common parts | ||||
| 83791-16060 | ||||
| 83791-16080 | ||||
| 83791-30060 | ||||
| 91651-40614 | ||||
