EL30-KHKNS (1988)
Toyota Corolla 2
(8805- )GL

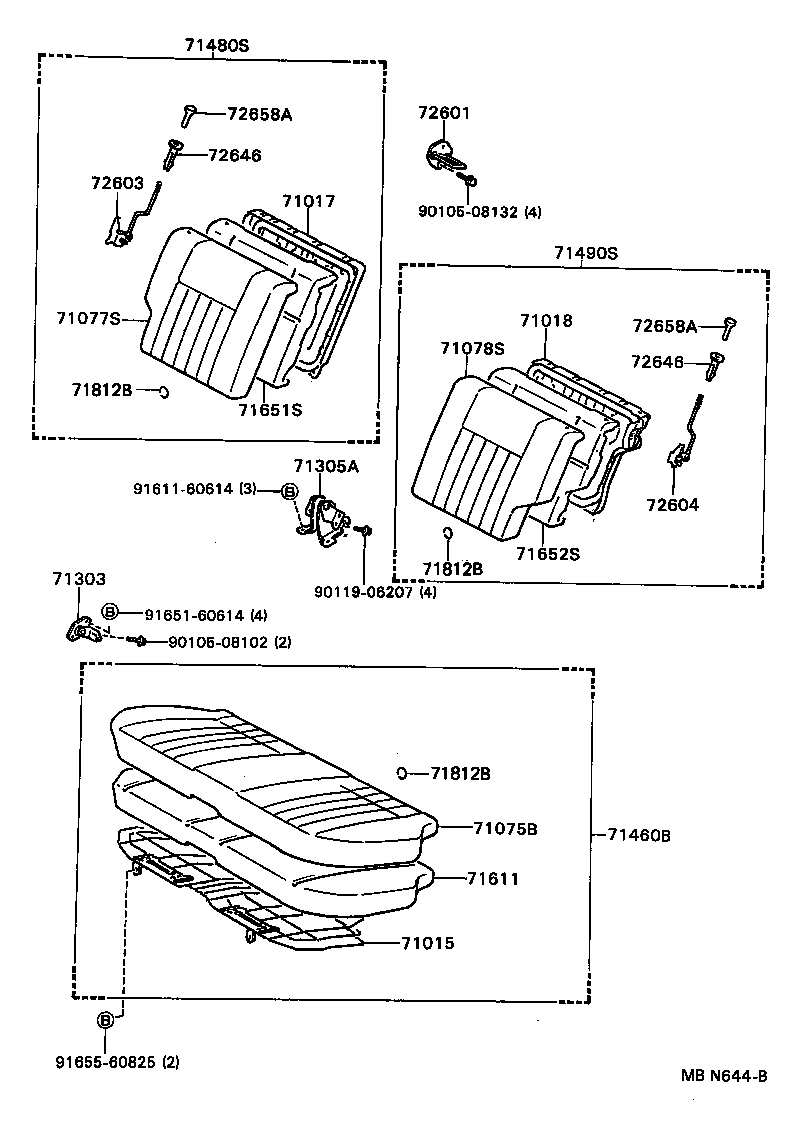

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16070 |
EL3#,NL30..AR,CD,GL,LIM |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16130 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16090 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71065-1636004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71065-1636003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1G19003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71077-1G19004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1677004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71078-1677003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16040 |
EL3#,NL30 |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16050 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71560-1641004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71560-1641003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1G27004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71480-1G27003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1681004 |
EL30,NL30..GL BLUE,TRIM8# |
1 | ||
| 71490-1681003 |
EL30,NL30..GL GRAY,TRIM2# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16170 |
EL3#,NL30..AR,CD,GL,LIM |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16260 |
EL3#,NL30..AR,GL,TX |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16110 |
EL3#,NL30..AR,GL,TX |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
90 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
90 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX |
90 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16070 |
EL3#,NL30 |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16140 |
EL3#,NL30 |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16100 |
EL3#,NL30 |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1601004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72646-1601001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72646-1601004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72646-1601001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| 72658-2301004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72658-1602004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72658-1602001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| 72658A - KNOB, REAR SEAT BACK LOCKING | ||||
| 72658-2301001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| 72658-2301004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72658-1602004 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLUE,TRIM8# |
1 | ||
| 72658-1602001 |
EL3#,NL30..AR,GL,GP,SRI,TX,ZX BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90105-08132 | ||||
| 90119-06207 | ||||
| 91611-60614 | ||||
| 91651-60614 | ||||
| 91655-60825 | ||||
