Toyota Corolla 2 EL30 HEATING & AIR CONDITIONING - COOLER PIPING

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-12050	EL30..CD,LIM	05/1988 - 09/1990	1
88454A - SHROUD, FAN
88454-16100	EL30..CD,LIM	05/1988 - 09/1990	1
88460 - CONDENSER ASSY, COOLER
88460-16210	EL30..CD,LIM	05/1988 - 09/1990	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-12120	EL30..CD,LIM	05/1988 - 09/1990	1
88590 - BLOWER ASSY, W/SHROUD
88590-16030	EL30..CD,LIM	05/1988 - 09/1990	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-12040	EL30..CD,LIM	10/1989 - 09/1990	1
88891A - PACKING A (FOR COOLER)
88578-16150	EL30..CD,LIM	05/1988 - 09/1990	1
88891B - PACKING B (FOR COOLER)
88578-16150	EL30..CD,LIM	05/1988 - 09/1990	1
88891D - PACKING D (FOR COOLER)
88578-16160	EL30..CD,LIM	05/1988 - 09/1990	2
Common parts
88467-14070
88467-16070
88578-16140
88688-16480
88718-24030
88892-16130
90099-04376
90099-04405
90099-32135
90119-06126
90119-06336
90179-06032

Part #	Description	Period	Qty
88471 - TANK, RECEIVER AIR CONDITIONER
88471-16040	EL30..CD,LIM	05/1988 - 09/1990	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-16100	EL30..CD,LIM	05/1988 - 09/1990	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001	EL30..4F..LIM 400G	05/1988 - 10/1989	2
90986-02004	EL30..CD,LIM 250G	10/1989 - 09/1990	1
90986-02001	EL30..4F..LIM 400G	11/1988 - 10/1989	1
90986-02001	EL30..CD,LIM 400G	05/1988 - 11/1988	1
90986-02002	EL30..CD,LIM 300G	11/1988 - 10/1989	1
90986-02004	EL30..4F..LIM 250G	10/1989 - 09/1990	2
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1G010	EL30..4F..LIM NO.1	05/1988 - 09/1990	1
88605J - HARNESS SUB-ASSY, AIR CONDITIONER WIRING
88605-1G010	EL30..4F..LIM NO.1	05/1988 - 09/1990	1
88645H - SWITCH, PRESSURE NO.1
88645-16040	EL30..CD,LIM	05/1988 - 09/1990	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-16120	EL30..CD,LIM	05/1988 - 09/1990	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-16130	EL30..CD,LIM	05/1988 - 09/1990	1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-16020	EL30..CD,LIM	05/1988 - 09/1990	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-16400	EL30..CD,LIM	05/1988 - 09/1990	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-16420	EL30..CD,LIM	05/1988 - 09/1990	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-16430	EL30..CD,LIM	05/1988 - 09/1990	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-16090	EL30..CD,LIM	05/1988 - 09/1990	1
Common parts
82711-12200
88467-14040
88569-16050
88688-16150
88688-16160
88688-16430
88714-10010
88714-12300
88714-16070
88714-16080
88714-22030
88718-16250
88718-16330
88718-24030
88899-95J10
90091-20613
90091-20619
90091-20809
90179-06032
90464-00412
91651-60835
93385-16020
93385-56025

EL30-KHKFS (1988)

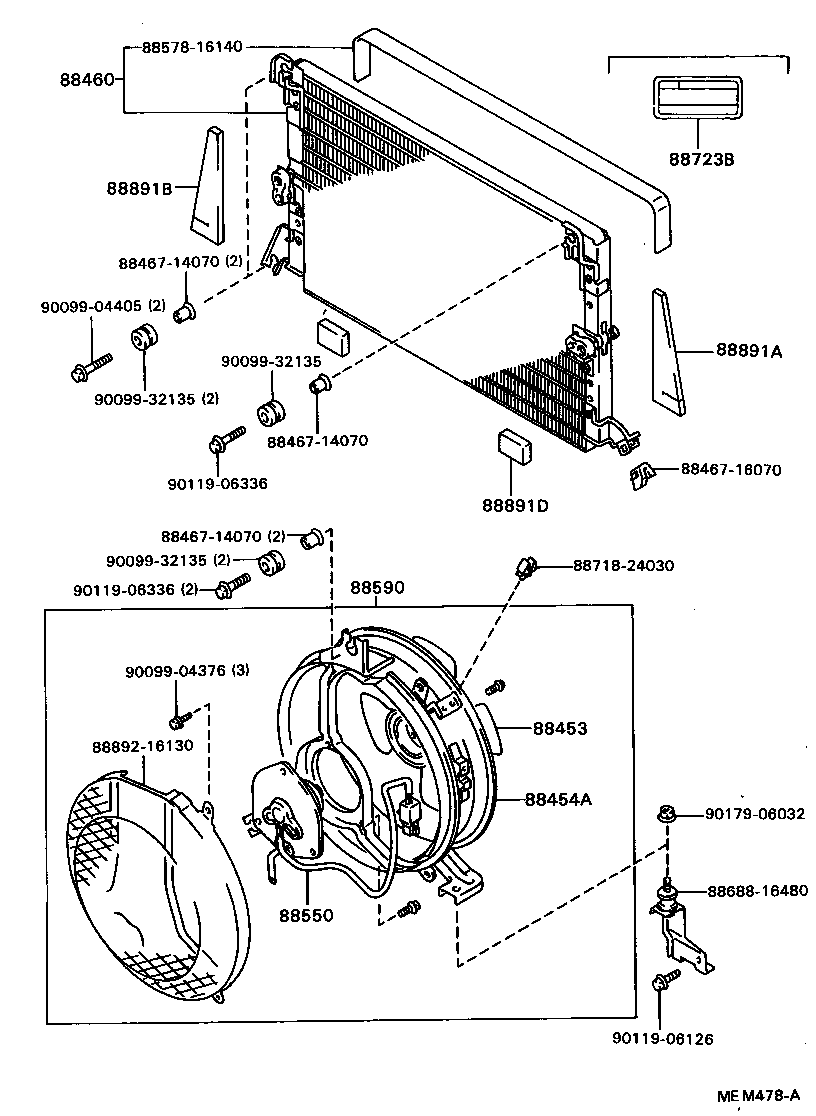

ILLUST NO. 1 OF 2(8805- )CBR,EFI

ILLUST NO. 2 OF 2(8805- )CBR,EFI
