EL30-KHKFS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )2E,3E

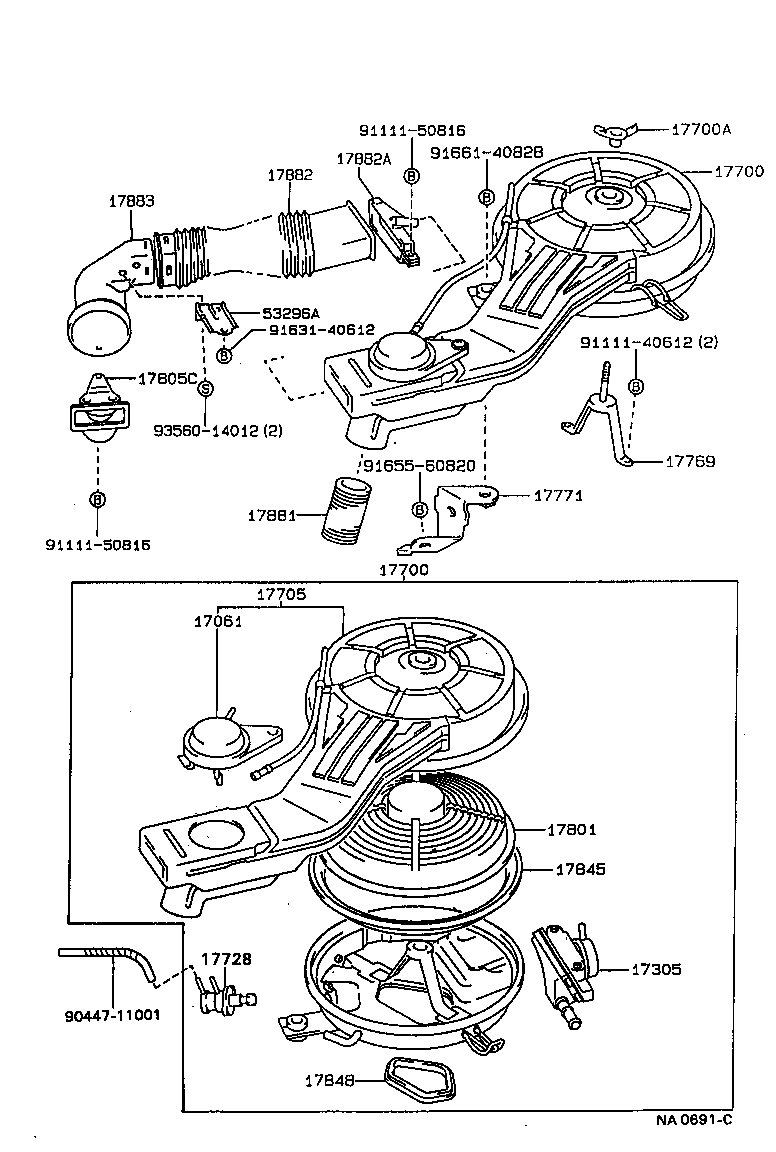

Click highlighted areas on diagram

diagram 17061 17305 17700 17700 17700A 17705 17728 17769 17771 17801 17805C 17845 17848 17881 17882 17882A 17883 53296A 9044711001 9111140612 9111150816 9111150816 9163140612 9165560820 9166140828 9356014012
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-11030

2E,3E..EL3#

 1
17305 - VALVE SUB-ASSY, REED
17350-11040

2E..EL30

 1
17350-11041

2E..EL30

 1
17700 - CLEANER ASSY, AIR
17700-11490

2E..EL30

 1
17700-11491

2E..EL30

 1
17700 - CLEANER ASSY, AIR
17700-11490

2E..EL30

 1
17700-11491

2E..EL30

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06009

2E,3E..EL3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11330

2E,3E..EL3#

 1
17728 - VALVE, THERMOSTATIC
17728-11050

2E..EL30

 1
17769 - SUPPORT, AIR CLEANER
17769-11020

2E,3E..EL3#

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-11010

2E,3E..EL3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-10030

2E,3E..EL3#

 1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-11050

2E,3E..EL3#..CD,GL,LIM,TX,ZX

 1
17845 - GASKET, AIR CLEANER CAP
17845-10020

2E,3E..EL3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-15010

2E,3E..EL3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-11121

2E,3E..EL3#

 1
17881-11120

2E,3E..EL3#

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-11030

2E,3E..EL3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
78186-16040

2E,3E..EL3#

 1
17883 - HOSE, AIR CLEANER, NO.3
17881-11180

2E,3E..EL3#

 1
53296A - RETAINER, COOL AIR INTAKE DUCT
53296-16050

EL3#..CD,GL,LIM,TX,ZX

 1
Common parts
90447-11001
91111-40612
91111-50816
91631-40612
91655-60820
91661-40828
93560-14012
