EL30-KHKDS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

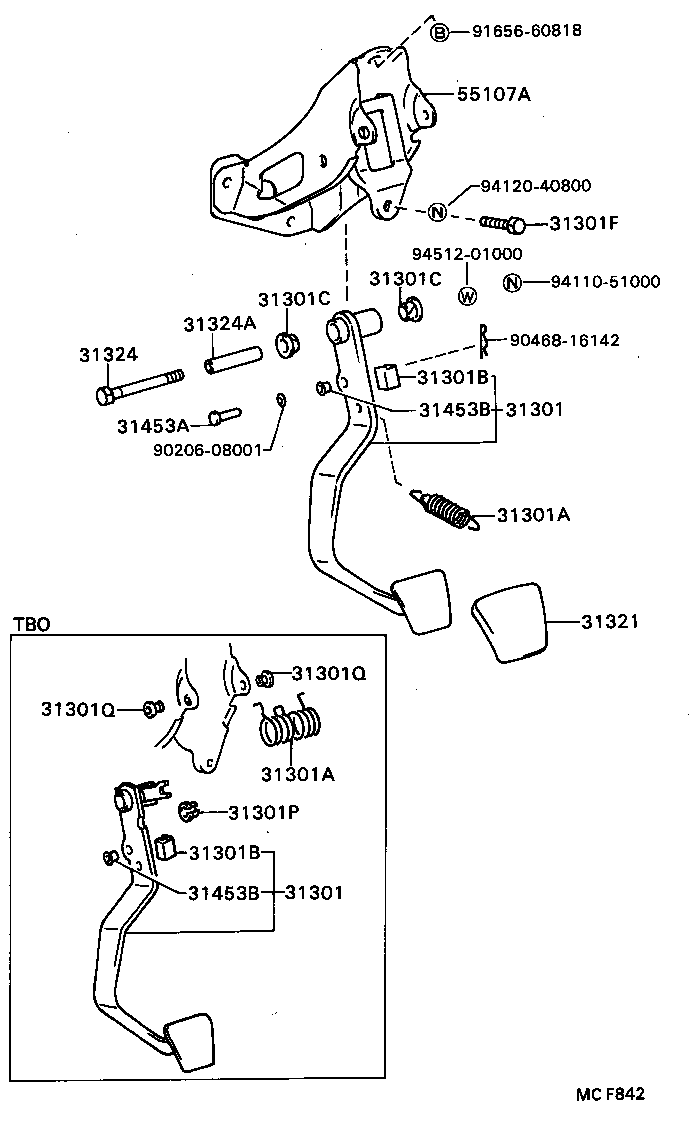

ILLUST NO. 1 OF 2(8805- )MTM

Click highlighted areas on diagram

diagram 31301 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301F 31301P 31301Q 31301Q 31321 31324 31324A 31453A 31453B 31453B 55107A 9020608001 9046816142 9165660818 9411051000 9412040800 9451201000
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16080

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
31301 - PEDAL SUB-ASSY, CLUTCH
31301-16080

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14036

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
90507-14023

EL30,NL30..MTM

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90507-14036

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
90507-14023

EL30,NL30..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010

EL3#,NL30..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
47131-10010

EL3#,NL30..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EL3#,NL30..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13192

EL3#,NL30..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-08052

EL3#,NL30..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-14020

EL3#,NL30..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10015

EL3#,NL30..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10003

EL3#,NL30..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

EL3#,NL30..MTM

長さ=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EL3#,NL30..MTM

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

EL3#,NL30..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-16040

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
Common parts
90206-08001
90468-16142
91656-60818
94110-51000
94120-40800
94512-01000

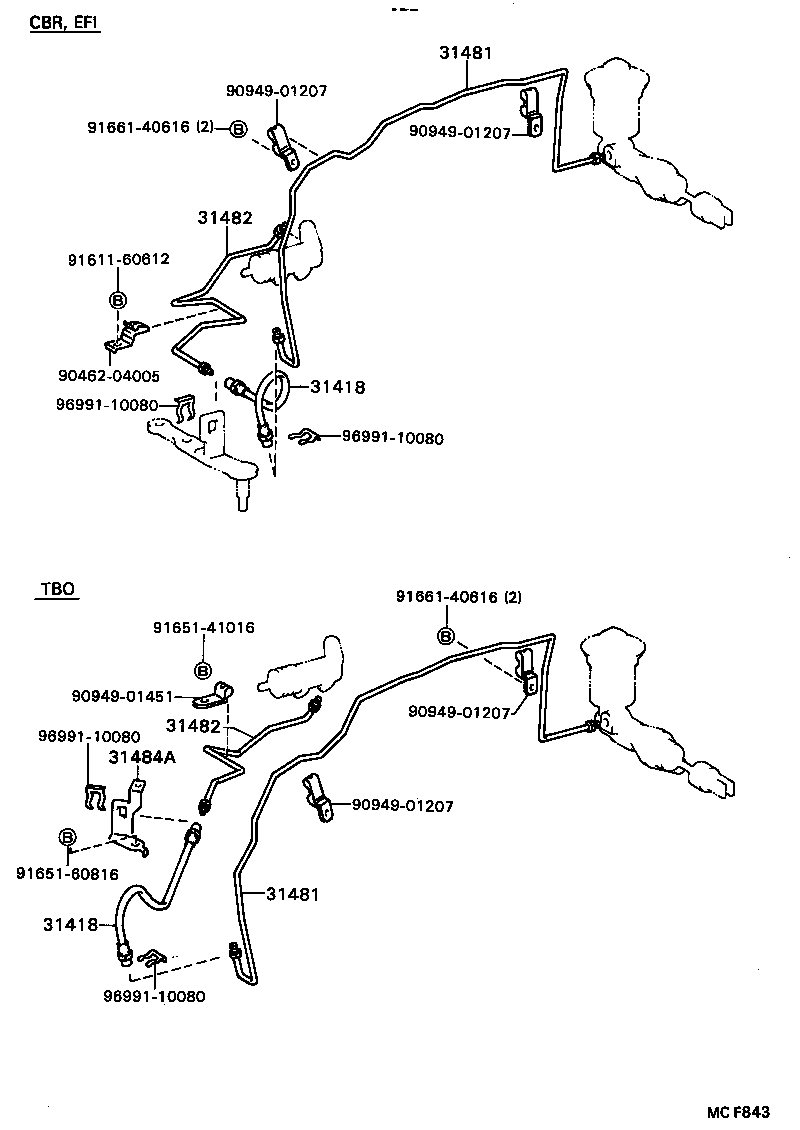

ILLUST NO. 2 OF 2(8805- )EL3#..MTM

Click highlighted areas on diagram

diagram 31418 31418 31481 31481 31482 31482 31484A 9046204005 9094901207 9094901207 9094901207 9094901207 9094901451 9161160612 9165141016 9165160816 9166140616 9166140616 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
31418 - HOSE, CLUTCH
96816-50260

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
31418 - HOSE, CLUTCH
96816-50260

EL3#,NL30..MTM..(CBR,EFI,TD)

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16010

EL3#..MTM

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-16010

EL3#..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10010

EL3#..MTM..(CBR,EFI)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-10010

EL3#..MTM..(CBR,EFI)

 1
Common parts
90462-04005
90949-01207
90949-01451
91611-60612
91651-41016
91651-60816
91661-40616
96991-10080
