Toyota Corolla 2 EL30 ALTERNATOR

EL30-KHKDS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990

Engine 2E

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

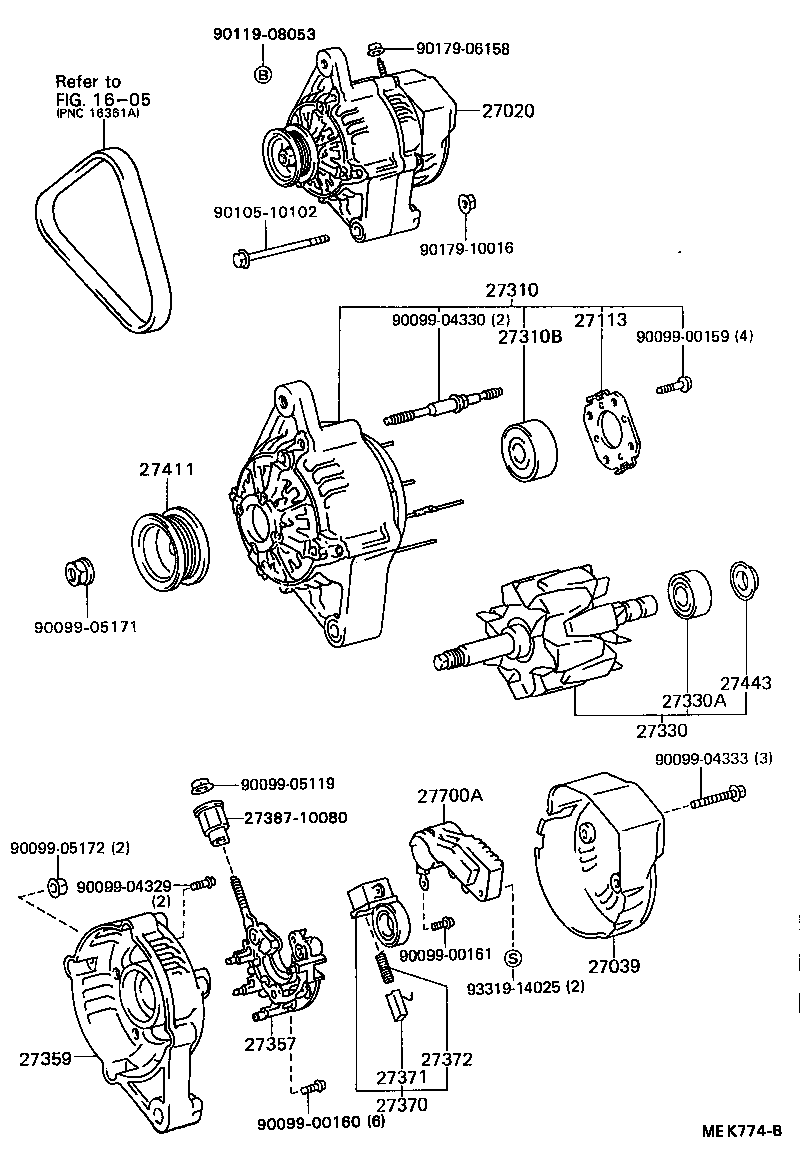

(8805- )2E,3E

Click highlighted areas on diagram

12V 50A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-10071	2E..EL30..4F 12V 45A	05/1988 - 10/1988	1
27060-10100	2E..EL30..4F 12V 50A	10/1988 - 09/1990	1
27039 - COVER, ALTERNATOR REAR END
27039-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72120	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	2E,3E..EL3#;3EE,3ETE..EL31..5F	05/1988 - 09/1990	1
27371 - BRUSH, ALTERNATOR
27371-63020	3EE,3ETE..EL31..5F;2E,3E,1NT..EL3#,NL30	05/1988 - 09/1990	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	2E,3E,1NT..EL3#,NL30	05/1988 - 09/1990	1
27411 - PULLEY, ALTERNATOR
27411-10051	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2E,3E#,1NT..EL3#,NL30	05/1988 - 09/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-10050	2E..EL30..4F 12V 50A	05/1988 - 10/1988	1
27700-10080	2E..EL30..4F	10/1988 - 09/1990	1
Common parts
27387-10080
90099-00159
90099-00160
90099-00161
90099-04329
90099-04330
90099-04333
90099-05119
90099-05171
90099-05172
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025
Linked diagrams
1605

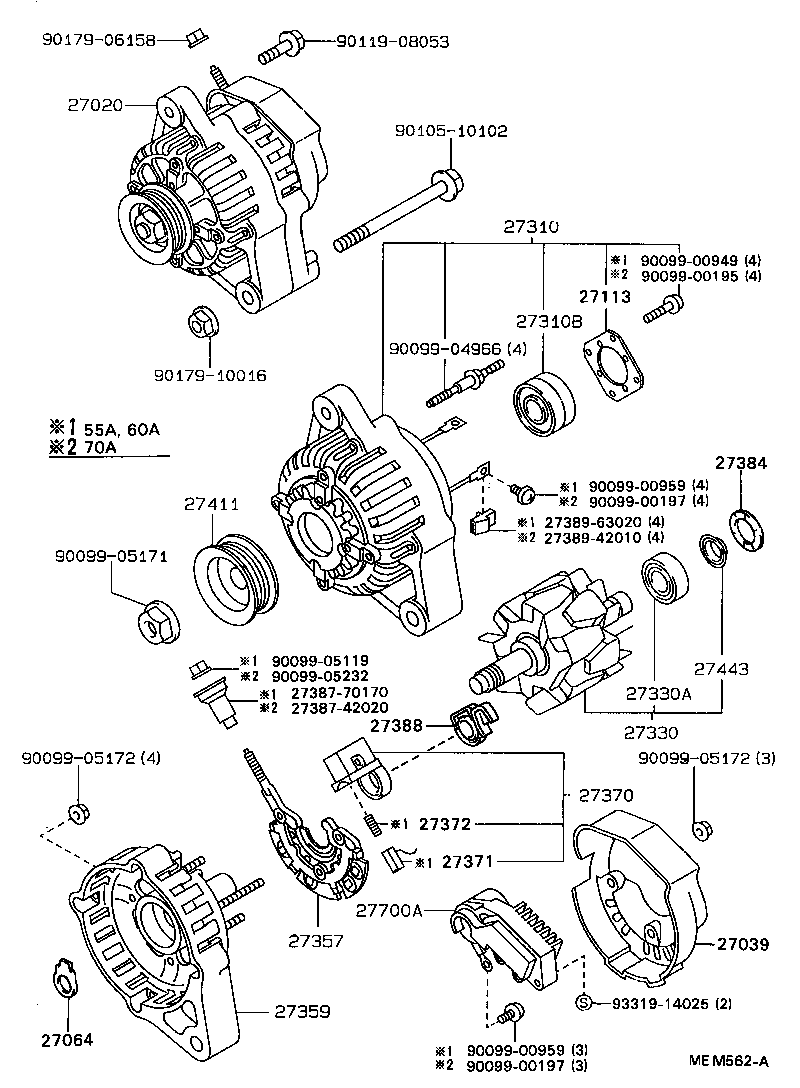

(8805- )2E,3E#

Click highlighted areas on diagram

12V 55A,60A,70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-10071	2E..EL30..4F 12V 45A	05/1988 - 10/1988	1
27060-10100	2E..EL30..4F 12V 50A	10/1988 - 09/1990	1
27039 - COVER, ALTERNATOR REAR END
27039-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-72120	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-10090	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10170	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10154	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-72150	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-16011	2E,3E..EL3#;3EE,3ETE..EL31..5F	05/1988 - 09/1990	1
27371 - BRUSH, ALTERNATOR
27371-63020	3EE,3ETE..EL31..5F;2E,3E,1NT..EL3#,NL30	05/1988 - 09/1990	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	2E,3E,1NT..EL3#,NL30	05/1988 - 09/1990	1
27411 - PULLEY, ALTERNATOR
27411-10051	2E,3E..EL3#..MTM..(CD,GL,LIM,TX,ZX) 12V 50A	05/1988 - 09/1990	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	2E,3E#,1NT..EL3#,NL30	05/1988 - 09/1990	1
27700A - REGULATOR ASSY, GENERATOR
27700-10050	2E..EL30..4F 12V 50A	05/1988 - 10/1988	1
27700-10080	2E..EL30..4F	10/1988 - 09/1990	1
Common parts
27387-42020
27387-70170
27389-42010
27389-63020
90099-00195
90099-00197
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90099-05232
90105-10102
90119-08053
90179-06158
90179-10016
93319-14025
