EL30-KHKDS (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 2E
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )5DS

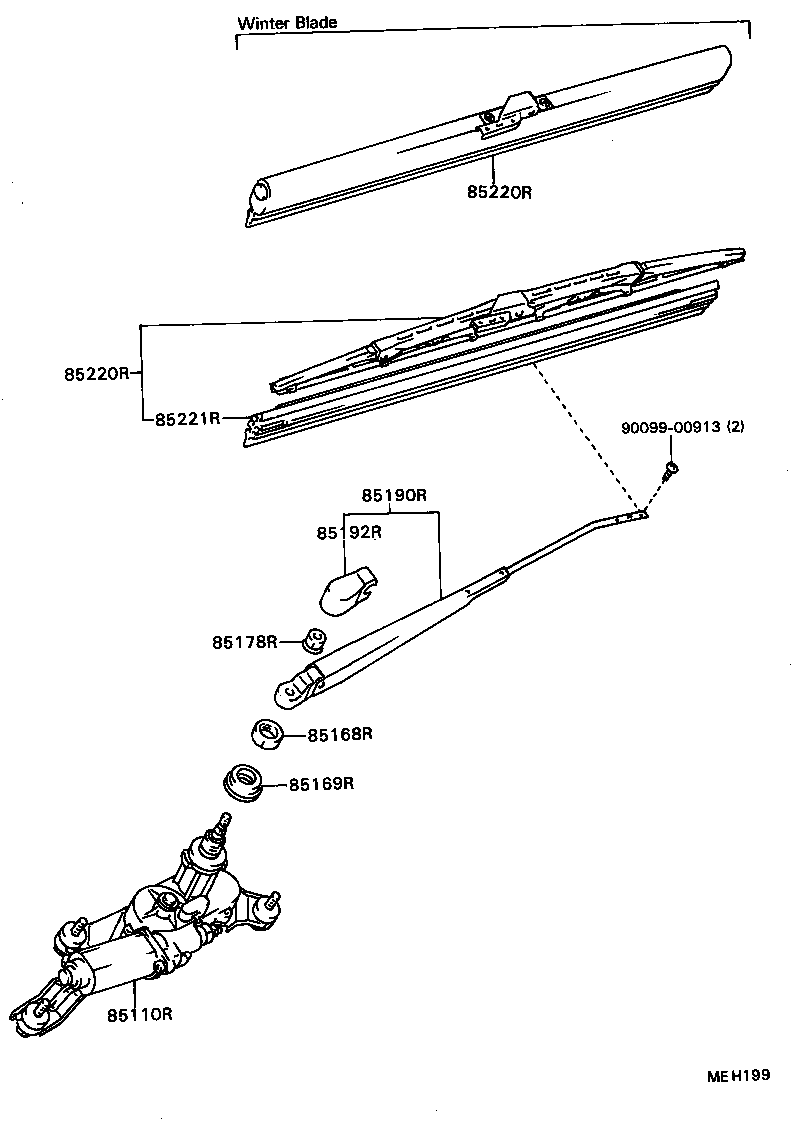

Click highlighted areas on diagram

diagram 85110R 85168R 85169R 85178R 85190R 85192R 85220R 85220R 85221R 9009900913
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85110-16300

EL3#,NL30..5DS

 1
85168R - NUT, REAR WIPER LINK PIVOT, NO.1
90099-05157

EL3#,NL30..5DS

 1
85169R - WASHER, REAR WIPER LINK PIVOT, NO.1
85179-16300

EL3#,NL30..5DS

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
90179-06158

EL3#,NL30

 1
85190R - ARM ASSY, REAR WIPER
85190-16210

EL3#,NL30..5DS

 1
85192R - COVER, REAR WIPER ARM
85192-14020

EL3#,NL30

 1
85220R - BLADE ASSY, REAR WIPER
85220-12610

EL3#,NL30..5DS

 1
85220-12620

EL3#,NL30..5DS

WINTER BLADE

 1
85220R - BLADE ASSY, REAR WIPER
85220-12610

EL3#,NL30..5DS

 1
85220-12620

EL3#,NL30..5DS

WINTER BLADE

 1
85221R - BLADE, REAR WIPER
85221-16090

EL3#,NL30..5DS

 1
Common parts
90099-00913
