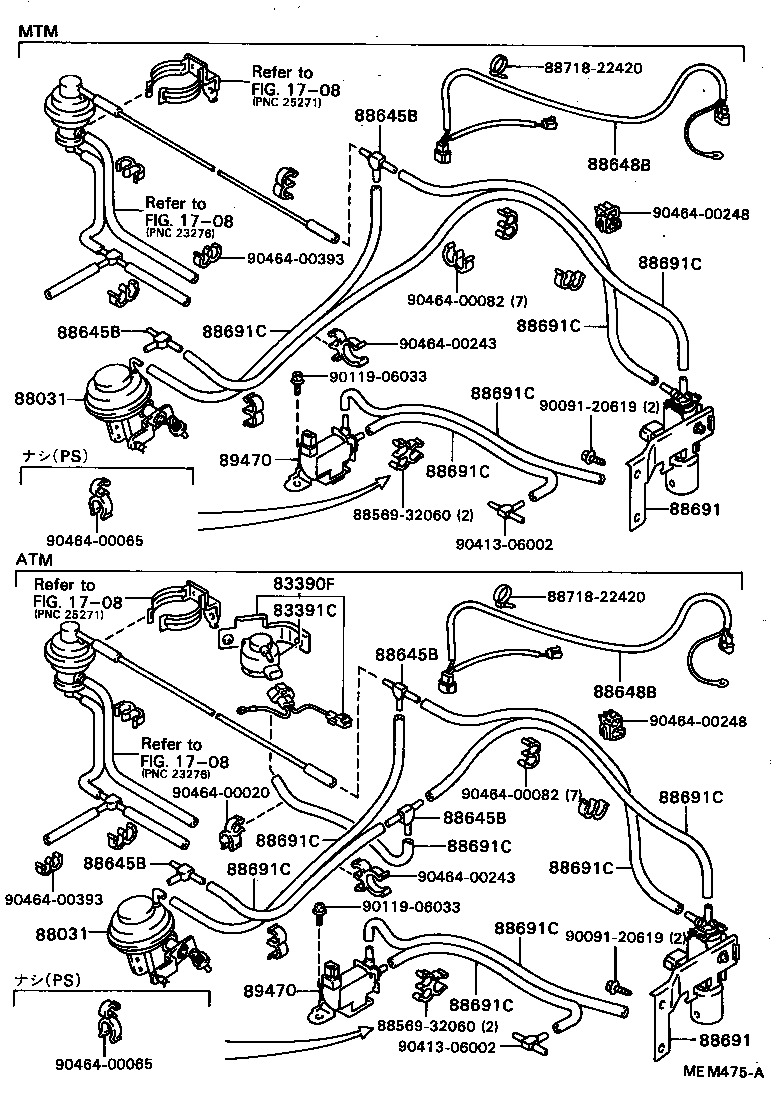

Toyota Corolla 2 EL30 HEATING & AIR CONDITIONING - VACUUM PIPING

Part #	Description	Period	Qty
83390F - SWITCH ASSY, COOLER VACUUM
88610-16060	EL30..3FC..LIM	05/1988 - 09/1990	1
83391C - SWITCH, COOLER VACUUM
88680-16010	EL30..3FC..LIM	05/1988 - 09/1990	1
88031 - ACTUATOR SET, IDLE-UP
88031-16080	EL30..CD,LIM	05/1988 - 09/1990	1
88031 - ACTUATOR SET, IDLE-UP
88031-16080	EL30..CD,LIM	05/1988 - 09/1990	1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	EL30..3FC..LIM	05/1988 - 09/1990	3
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	EL30..3FC..LIM	05/1988 - 09/1990	3
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	EL30..3FC..LIM	05/1988 - 09/1990	3
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	EL30..3FC..LIM	05/1988 - 09/1990	3
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04001	EL30..3FC..LIM	05/1988 - 09/1990	3
88648B - WIRING, COOLER, NO.1
88648-16160	EL30..CD,LIM	05/1988 - 09/1990	1
88648B - WIRING, COOLER, NO.1
88648-16160	EL30..CD,LIM	05/1988 - 09/1990	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-16050	EL30..CD,LIM	05/1988 - 09/1990	1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-16050	EL30..CD,LIM	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
90999-92002	EL30..3FC..LIM *H,L=300	05/1988 - 09/1990	1
90999-92003	EL30..3FC..LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..CD,LIM 長さ=600	05/1988 - 09/1990	1
90999-92003	EL30..LIM 長さ=600	05/1988 - 09/1990	1
89470 - VALVE ASSY, VACUUM SWITCHING, W/BRACKET
89470-16010	EL31..CBR;EL30..5DS;EL30..3DS..3FC..TX;EL30..3DS..(GL,LIM)	05/1988 - 09/1990	1
89470 - VALVE ASSY, VACUUM SWITCHING, W/BRACKET
89470-16010	EL31..CBR;EL30..5DS;EL30..3DS..3FC..TX;EL30..3DS..(GL,LIM)	05/1988 - 09/1990	1
Common parts
88569-32060
88718-22420
90091-20619
90119-06033
90413-06002
90464-00020
90464-00065
90464-00082
90464-00243
90464-00248
90464-00393
Linked diagrams
1708

EL30-KHHFS (1988)

(8805- )CBR
