EL30-KHHFS (1988)

Toyota Corolla 2

Production May 1988 - Sep 1990
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8805- )CD,GL,LIM,TX,ZX

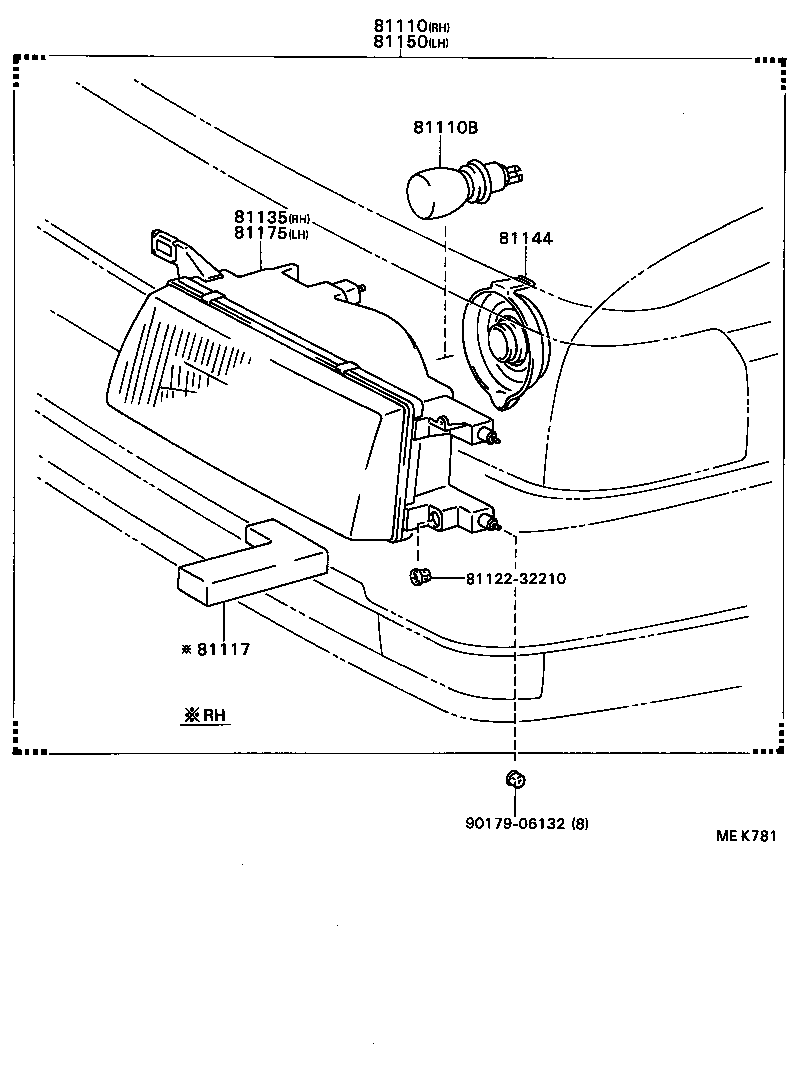

Click highlighted areas on diagram

diagram 81110 81110B 81117 8112232210 81135 81144 81150 81175 9017906132
Part # Description Qty Price
81110 - HEADLAMP ASSY, RH
81110-16341

EL30,NL30..CD,GL,LIM,TX

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13022

EL30,NL30..CD,GL,LIM,TX

12V 65/60W,ﾎﾜｲﾄ

 2
81117 - PACKING, HEADLAMP HOUSING
81117-16340

EL3#,NL30..CD,GL,LIM,TX,ZX

 1
81135 - UNIT ASSY, HEADLAMP, RH
81130-16341

EL30,NL30..CD,GL,LIM,TX

 1
81144 - COVER, HEADLAMP, NO.1
81139-16340

EL3#,NL30..CD,GL,LIM,TX,ZX

 2
81150 - HEADLAMP ASSY, LH
81150-16341

EL30,NL30..CD,GL,LIM,TX

 1
81175 - UNIT ASSY, HEADLAMP, LH
81170-16341

EL30,NL30..CD,GL,LIM,TX

 1
Common parts
81122-32210
90179-06132
