EL30-KHHFS (1988)
Toyota Corolla 2

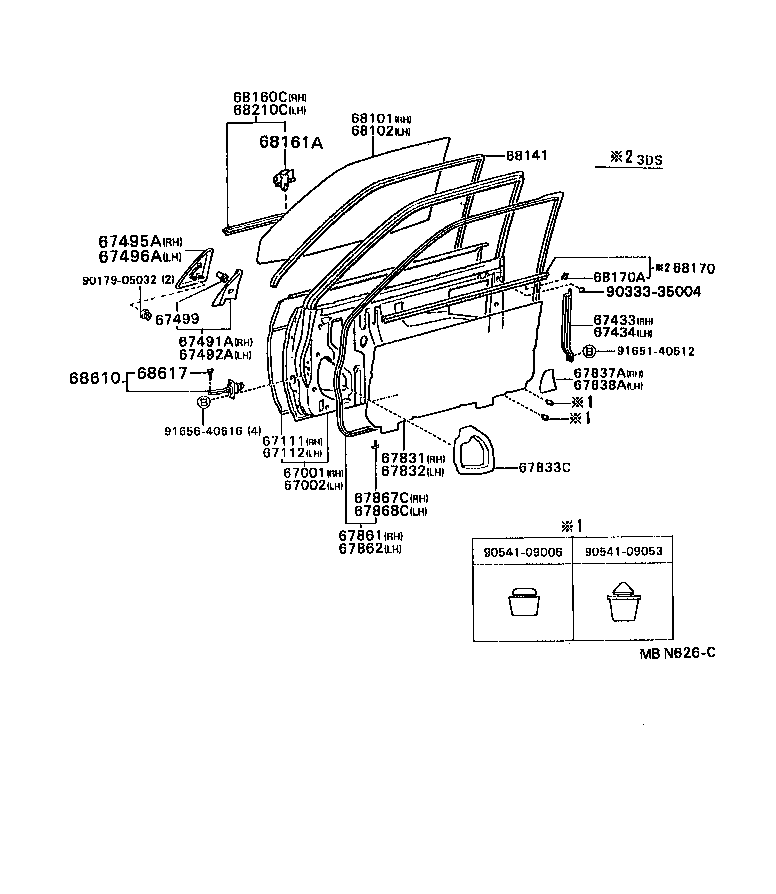

ILLUST NO. 1 OF 2(8805- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16280 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 67001-16210 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16170 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 67002-16240 |
EL30..5DS..LIM |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16180 |
EL3#,NL30..5DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16160 |
EL3#,NL30..5DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-16050 |
EL3#,NL30..5DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-16050 |
EL3#,NL30..5DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16070 |
EL3#,NL30..5DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16070 |
EL3#,NL30..5DS |
1 | ||
| 67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH | ||||
| 67495-16050 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH | ||||
| 67496-16050 |
EL3#,NL30..5DS..(LIM,ZX) |
1 | ||
| 67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH | ||||
| 67499-12030 |
EL3#,NL30..5DS |
2 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-16150 |
EL3#,NL30..5DS..(LIM,ZX) ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67831-16150 |
EL30..5DS..LIM ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67831-16160 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67831-16160 |
EL3#,NL30..5DS..(LIM,ZX) ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67831-16140 |
EL3#,NL30..5DS |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67831-16170 |
EL3#,NL30..5DS..(LIM,ZX) ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67831-16150 |
EL3#,NL30..5DS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67831-16170 |
EL30..5DS..LIM ｶﾝﾚｲﾁ ｼﾖｳ & ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67832-16110 |
EL3#,NL30..5DS ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 67837A - SEAL, FRONT DOOR VENT, RH | ||||
| 67837-16020 |
EL3#,NL30..5DS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67838A - SEAL, FRONT DOOR VENT, LH | ||||
| 67838-16020 |
EL3#,NL30..5DS ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16220 |
EL3#,NL30..5DS |
1 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16220 |
EL3#,NL30..5DS |
1 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67868-30040 |
EL3#,NL30..5DS |
17 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67868-30040 |
EL3#,NL30..5DS |
17 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16210 |
EL30..5DS..LIM *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,SUPER LIME |
1 | ||
| 68111-16170 |
EL3#,NL30..5DS..(GL,LIM,ZX) *TT,厚さ=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16170 |
EL3#,NL30..5DS..(GL,LIM,ZX) *TT,厚さ=3.5 |
1 | ||
| 68112-16210 |
EL30..5DS..LIM *TT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ,SUPER LIME |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16160 |
EL3#,NL30..5DS |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(LIM,ZX) |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL3#,NL30 |
2 | ||
| 68617 - PIN, FRONT DOOR CHECK | ||||
| 68617-90A00 |
EL3#,NL30 |
2 | ||
| Common parts | ||||
| 90179-05032 | ||||
| 90333-35004 | ||||
| 90541-09006 | ||||
| 90541-09053 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

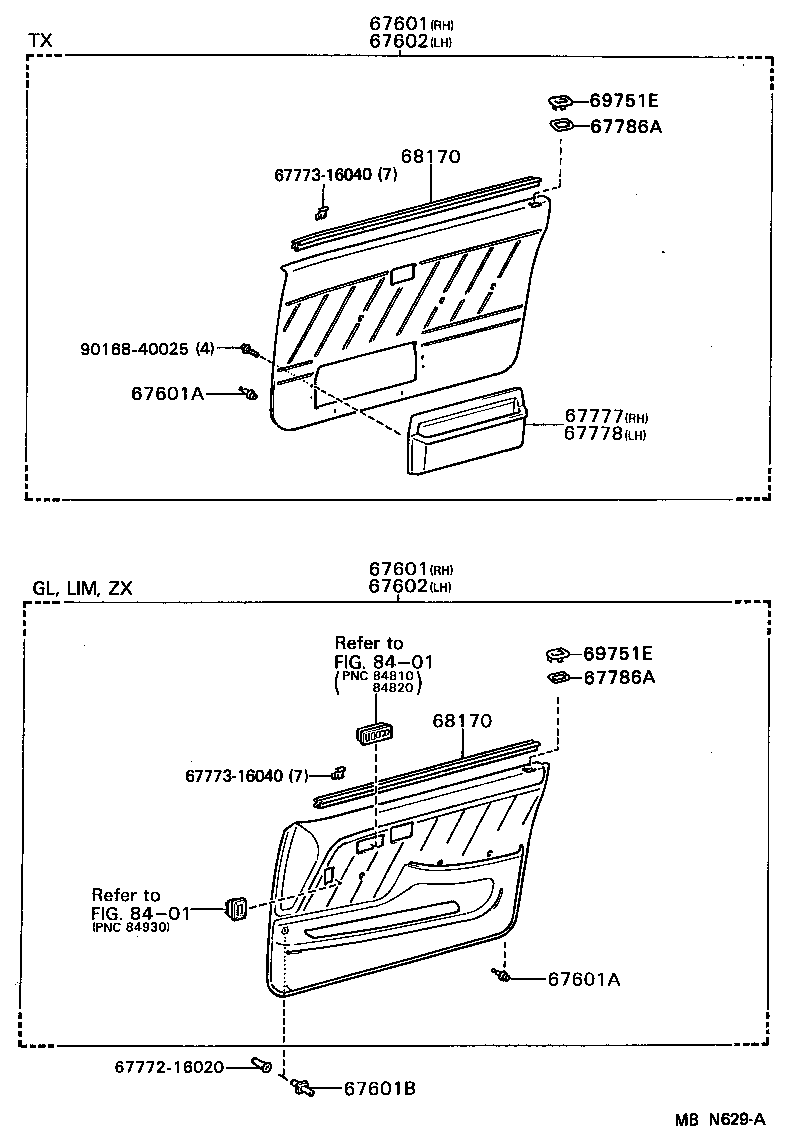

ILLUST NO. 2 OF 2(8805- )5DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1663104 |
EL30..5DS..LIM BLUE,TRIM8# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-1663101 |
EL30..5DS..LIM BLACK,TRIM2# |
1 | ||
| 67610-1647004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM SUPER LIME,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-1647004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1663104 |
EL30..5DS..LIM BLUE,TRIM8# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-1663101 |
EL30..5DS..LIM BLACK,TRIM2# |
1 | ||
| 67610-1647004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM SUPER LIME,BLACK,BLACK,TRIM2# |
1 | ||
| 67610-1647001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67610-1647004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL3#,NL30..5DS..(LIM,ZX) |
18 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-16080 |
EL3#,NL30..5DS..(LIM,ZX) |
18 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-0706804 |
EL3#,NL30..5DS..(GL,LIM,ZX) BLUE,TRIM8# |
2 | ||
| 90467-0706801 |
EL3#,NL30..5DS..(GL,LIM,ZX) BLACK,TRIM2# |
2 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1635004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM SUPER LIME,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1635004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67620-1651101 |
EL30..5DS..LIM BLACK,TRIM2# |
1 | ||
| 67620-1651104 |
EL30..5DS..LIM BLUE,TRIM8# |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1635004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM SUPER LIME,BLACK,BLACK,TRIM2# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1635001 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLACK,TRIM2# |
1 | ||
| 67620-1635004 |
EL30..5DS..LIM ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ),BLUE,TRIM8# |
1 | ||
| 67620-1651101 |
EL30..5DS..LIM BLACK,TRIM2# |
1 | ||
| 67620-1651104 |
EL30..5DS..LIM BLUE,TRIM8# |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(LIM,ZX) |
2 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68172-16080 |
EL3#,NL30..5DS..(LIM,ZX) |
2 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006024 |
EL3#,NL30..5DS..(LIM,ZX) BLUE,TRIM8# |
1 | ||
| 69751-2006011 |
EL3#,NL30..5DS..(LIM,ZX) BLACK,TRIM2# |
1 | ||
| 69751-1203014 |
EL3#,NL30..5DS..(LIM,ZX) BLUE,TRIM8# |
1 | ||
| 69751-1203001 |
EL3#,NL30..5DS..(LIM,ZX) BLACK,TRIM2# |
1 | ||
| 69751E - HOLDER, FRONT DOOR LOCK CONTROL KNOB | ||||
| 69751-2006024 |
EL3#,NL30..5DS..(LIM,ZX) BLUE,TRIM8# |
1 | ||
| 69751-2006011 |
EL3#,NL30..5DS..(LIM,ZX) BLACK,TRIM2# |
1 | ||
| 69751-1203014 |
EL3#,NL30..5DS..(LIM,ZX) BLUE,TRIM8# |
1 | ||
| 69751-1203001 |
EL3#,NL30..5DS..(LIM,ZX) BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 67772-16020 | ||||
| 67773-16040 | ||||
| 90168-40025 | ||||
| Linked diagrams | ||||
| 8401 | ||||
