EL30-KHHDS (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )

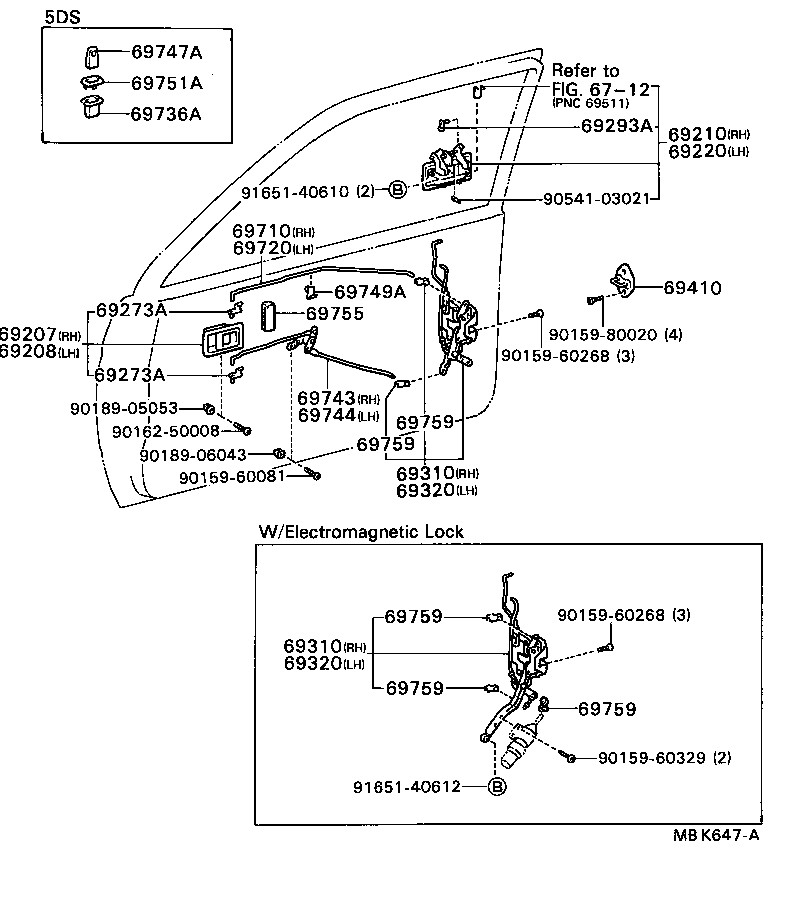

Click highlighted areas on diagram

diagram 6712 69207 69208 69210 69220 69273A 69273A 69293A 69310 69310 69320 69320 69410 69710 69720 69736A 69743 69744 69747A 69749A 69751A 69755 69759 69759 69759 69759 69759 9015960081 9015960268 9015960268 9015960329 9015980020 9016250008 9018905053 9018906043 9054103021 9165140610 9165140612
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1005014

EL3#,NL30..5DS

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69205-1005005

EL3#,NL30..5DS

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

 1
69205-1004024

EL3#,NL30..5DS

BLUE,BLUE,TRIM8#

 1
69205-1005001

EL3#,NL30..5DS

COLD SPEC,BLACK,NEW BLACK,TRIM2#

 1
69205-1004005

EL3#,NL30..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
69205-1004001

EL3#,NL30..5DS

BLACK,NEW BLACK,TRIM2#

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004024

EL3#,NL30..5DS

BLUE,BLUE,TRIM8#

 1
69206-1004005

EL3#,NL30..5DS

BEIGE,DARK BEIGE,TRIM4#

 1
69206-1005005

EL3#,NL30..5DS

COLD SPEC,BEIGE,DARK BEIGE,TRIM4#

 1
69206-1005014

EL3#,NL30..5DS

COLD SPEC,BLUE,BLUE,TRIM8#

 1
69206-1004001

EL3#,NL30..5DS

BLACK,NEW BLACK,TRIM2#

 1
69206-1005001

EL3#,NL30..5DS

COLD SPEC,BLACK,NEW BLACK,TRIM2#

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-16050

EL3#,NL30

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-16050

EL3#,NL30

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20060

EL3#,NL30..5DS

RH

 1
69759-20070

EL3#,NL30..5DS

LH

 1
69273A - SNAP, DOOR INSIDE HANDLE ROD(FOR FRONT DOOR)
69759-20060

EL3#,NL30..5DS

RH

 1
69759-20070

EL3#,NL30..5DS

LH

 1
69293A - SNAP, FRONT DOOR OUTSIDE HANDLE
69293-12040

EL3#,NL30

LH

 1
69293-12030

EL3#,NL30

RH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-16150

EL3#,NL30..5DS

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-16150

EL3#,NL30..5DS

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-16150

EL3#,NL30..5DS

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-16150

EL3#,NL30..5DS

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-87001

EL3#,NL30..5DS

 2
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-16060

EL3#,NL30..5DS

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-16060

EL3#,NL30..5DS

 1
69736A - GUIDE, FRONT DOOR LOCK LINK
69736-12030

EL3#,NL30..5DS

 2
69747A - BUTTON, DOOR LOCKING(FOR FRONT DOOR)
69741-90K0001

EL3#,NL30..5DS

BLACK,BLACK,TRIM2#

 2
69749A - CLAMP, FRONT DOOR LOCK LINK, NO.1
69749-20010

EL3#,NL30

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-1201011

EL30,NL30..5DS..(GL,TX)

BLACK,BLACK,TRIM2#

 2
69751-1201005

EL30,NL30..5DS..(GL,TX)

BEIGE,DARK BEIGE,TRIM4#

 2
69751-1201014

EL30,NL30..5DS..(GL,TX)

BLUE,BLUE,TRIM8#

 2
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

EL3#,NL30..5DS

LH

 1
69759-20050

EL3#,NL30..5DS

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

EL3#,NL30..5DS

LH

 1
69759-20050

EL3#,NL30..5DS

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

EL3#,NL30..5DS

LH

 1
69759-20050

EL3#,NL30..5DS

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

EL3#,NL30..5DS

LH

 1
69759-20050

EL3#,NL30..5DS

RH

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-20040

EL3#,NL30..5DS

LH

 1
69759-20050

EL3#,NL30..5DS

RH

 1
Common parts
90159-60081
90159-60268
90159-60329
90159-80020
90162-50008
90189-05053
90189-06043
90541-03021
91651-40610
91651-40612
Linked diagrams
6712
