EL30-KGKFS (1986)
Toyota Corolla 2
(8605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64303 - BRACKET SUB-ASSY, PACKAGE TRAY, RH | ||||
| 64301-1607005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64301-1607001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
1 | ||
| 64301-1607004 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 64304 - BRACKET SUB-ASSY, PACKAGE TRAY, LH | ||||
| 64302-1607005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64302-1607001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
1 | ||
| 64302-1607004 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM | ||||
| 64306-16030 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
2 | ||
| 64323 - CLAMP, PACKAGE TRAY TRIM, NO.1 | ||||
| 64323-10010 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX RH |
1 | ||
| 64324-10010 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX LH |
1 | ||
| 64330D - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-1618001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
1 | ||
| 64330-1618005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64330-1618004 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLUE,BLUE,TRIM8# |
1 | ||
| 64373A - STOPPER, PACKAGE TRAY TRIM | ||||
| 64373-16030 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) |
2 | ||
| 64387 - HANGER, PACKAGE TRAY TRIM | ||||
| 64381-10010 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX |
2 | ||
| 64395 - PIN, PACKAGE TRAY TRIM HINGE | ||||
| 64373-16050 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX RH |
1 | ||
| 64379-16010 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX LH |
1 | ||
| 64706 - COVER SUB-ASSY, QUARTER TRIM, JACK | ||||
| 64766-1603001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
1 | ||
| 64766-1603005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64766-1603004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 64716D - COVER, DECK TRIM, REAR | ||||
| 64716-1604004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
1 | ||
| 64716-1604001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
1 | ||
| 64716-1604005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0706601 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX TYPE B,BLACK,BLACK,TRIM2# |
6 | ||
| 90467-0704315 |
EL3#,NL30..GL,LIM,TX,ZX TYPE A,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 90467-0706604 |
EL3#,NL30 TYPE B,BLUE,BLUE,TRIM8# |
6 | ||
| 90467-0706605 |
EL3#,NL30..GL,LIM,TX,ZX TYPE B,BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90467-0704311 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX TYPE A,BLACK,BLACK,TRIM2# |
3 | ||
| 90467-0704334 |
EL3#,NL30 TYPE A,BLUE,BLUE,TRIM8# |
3 | ||
| 64716E - CLIP(FOR DECK TRIM REAR COVER) | ||||
| 90467-0706601 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX TYPE B,BLACK,BLACK,TRIM2# |
6 | ||
| 90467-0704315 |
EL3#,NL30..GL,LIM,TX,ZX TYPE A,BEIGE,DARK BEIGE,TRIM4# |
3 | ||
| 90467-0706604 |
EL3#,NL30 TYPE B,BLUE,BLUE,TRIM8# |
6 | ||
| 90467-0706605 |
EL3#,NL30..GL,LIM,TX,ZX TYPE B,BEIGE,DARK BEIGE,TRIM4# |
6 | ||
| 90467-0704311 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX TYPE A,BLACK,BLACK,TRIM2# |
3 | ||
| 90467-0704334 |
EL3#,NL30 TYPE A,BLUE,BLUE,TRIM8# |
3 | ||
| 64750 - PANEL ASSY, DECK SIDE TRIM, RH | ||||
| 64714-1608005 |
EL3#..3DS..(GL,LIM,TX,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64714-1608004 |
EL3#..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64714-1611001 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) BLACK,BLACK,TRIM2# |
1 | ||
| 64714-1611005 |
EL3#..3DS..(GL,LIM,TX,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64714-1608001 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) BLACK,BLACK,TRIM2# |
1 | ||
| 64714-1611004 |
EL3#..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL3#..3DS |
10 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL3#..3DS |
10 | ||
| 64750B - RETAINER(FOR DECK SIDE TRIM PANEL) | ||||
| 67771-14040 |
EL3#..3DS |
10 | ||
| 64759A - COVER, SHOCK ABSORBER HEAD | ||||
| 58731-1604004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
2 | ||
| 58731-1604001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
2 | ||
| 58731-1604005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64759A - COVER, SHOCK ABSORBER HEAD | ||||
| 58731-1604004 |
EL3#,NL30 BLUE,BLUE,TRIM8# |
2 | ||
| 58731-1604001 |
EL3#,NL30..GL,GP,LIM,SR,TX,ZX BLACK,BLACK,TRIM2# |
2 | ||
| 58731-1604005 |
EL3#,NL30..GL,LIM,TX,ZX BEIGE,DARK BEIGE,TRIM4# |
2 | ||
| 64760 - PANEL ASSY, DECK SIDE TRIM, LH | ||||
| 64715-1608005 |
EL3#..3DS..(GL,LIM,TX,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64715-1608001 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) BLACK,BLACK,TRIM2# |
1 | ||
| 64715-1611004 |
EL3#..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64715-1611001 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) BLACK,BLACK,TRIM2# |
1 | ||
| 64715-1611005 |
EL3#..3DS..(GL,LIM,TX,ZX) BEIGE,DARK BEIGE,TRIM4# |
1 | ||
| 64715-1608004 |
EL3#..3DS BLUE,BLUE,TRIM8# |
1 | ||
| 64768 - STOPPER, JACK COVER | ||||
| 64768-16010 |
EL3#,NL30 |
1 | ||
| Common parts | ||||
| 90119-06342 | ||||
| 90119-06343 | ||||
| 90467-0805601 | ||||
| 90468-05014 | ||||
| 93520-55012 | ||||
| 93540-13010 | ||||
| 93560-54012 | ||||

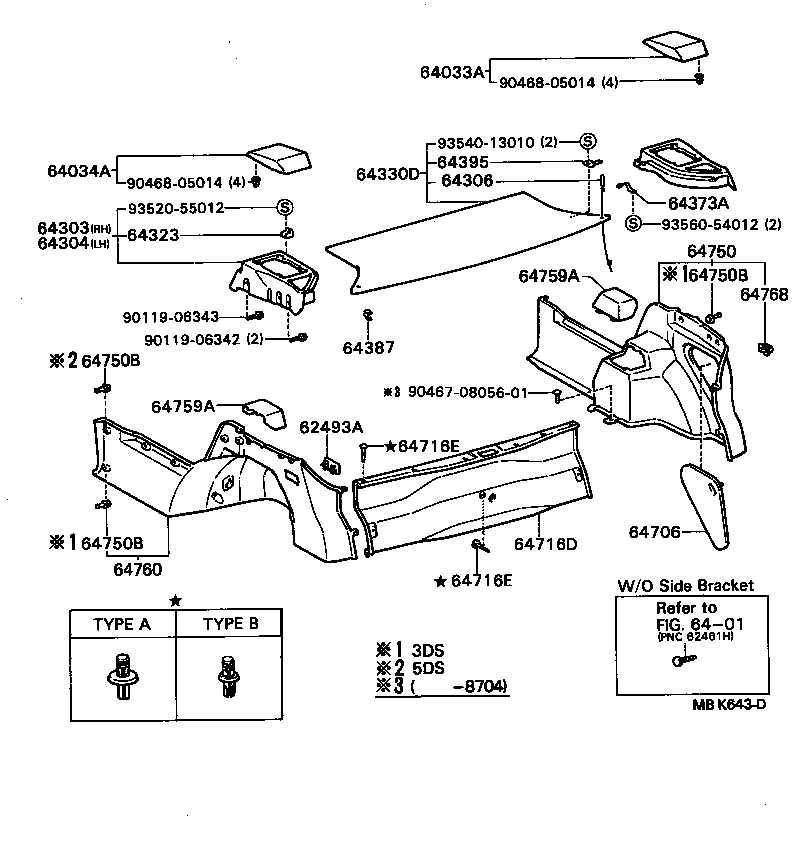

| Linked diagrams | ||||
| 6401 | ||||
