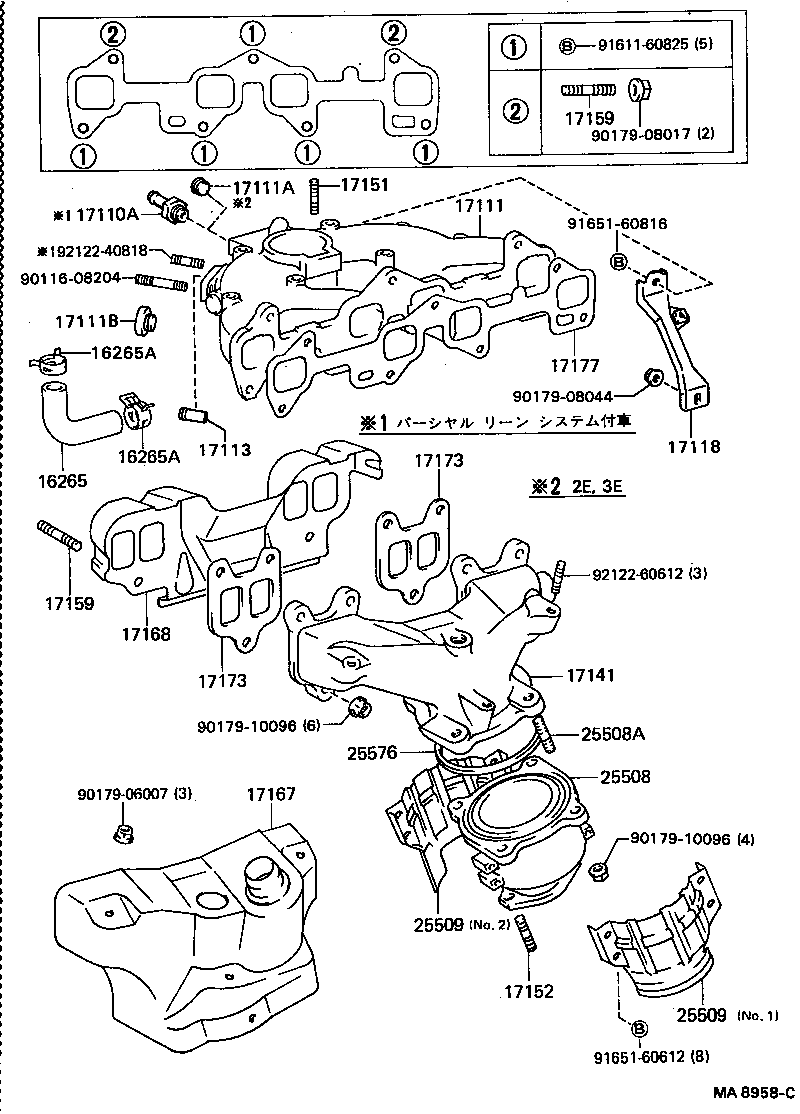

Toyota Corolla 2 EL30 MANIFOLD - JDM Part Detective

Part #	Description	Period	Qty
16265 - HOSE, INTAKE MANIFOLD WATER
16265-11010	2E..EL30	05/1986 - 05/1988	1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001	2E,3E..EL3#	05/1986 - 05/1988	2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-21001	2E,3E..EL3#	05/1986 - 05/1988	2
17111 - MANIFOLD, INTAKE
17101-11100	2E..EL30	05/1986 - 07/1987	1
17101-11180	2E..EL30	07/1987 - 05/1988	1
17111A - PLUG, NO.1
90344-53015	2E,3E..EL3#	05/1986 - 05/1988	1
17111B - PLUG, NO.2
90341-22006	2E,3E..EL3#	05/1986 - 05/1988	1
17113 - PIPE, INTAKE
25541-11010	2E,3E..EL3#	05/1986 - 05/1988	1
17141 - MANIFOLD, EXHAUST
17141-11010	2E..EL30	05/1986 - 05/1988	1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08204	2E,3E..EL3#	05/1986 - 05/1988	4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017	2E,3E#..EL3#	05/1986 - 05/1988	3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	2E,3E#..EL3# INTAKE MANIFOLD	05/1986 - 05/1988	2
92122-61028	2E..EL30 EXHAUST MANIFOLD,NO.1	05/1986 - 05/1988	6
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92132-60825	2E,3E#..EL3# INTAKE MANIFOLD	05/1986 - 05/1988	2
92122-61028	2E..EL30 EXHAUST MANIFOLD,NO.1	05/1986 - 05/1988	6
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17107-11050	2E,3E..EL3# COLD SPEC	05/1986 - 05/1988	1
17107-11040	2E,3E..EL3#	05/1986 - 05/1988	1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17168-10010	2E..EL30	05/1986 - 05/1988	1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020	2E..EL30	05/1986 - 05/1988	2
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-10020	2E..EL30	05/1986 - 05/1988	2
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-10010	2E..EL30	05/1986 - 05/1988	1
25508 - CONVERTER SUB-ASSY, MANIFOLD
25508-11010	2E..EL30	05/1986 - 10/1986	1
25508-11041	2E..EL30	09/1987 - 05/1988	1
25508-11050	2E..EL30	12/1986 - 09/1987	1
25508-11011	2E..EL30	10/1986 - 12/1986	1
25508A - BOLT, STUD(FOR MANIFOLD CONVERTER)
90116-10087	2E,3E..EL3#	05/1987 - 05/1988	4
90116-10056	2E,3E..EL3#	05/1986 - 05/1987	4
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25587-11010	2E..EL30 NO.2	05/1986 - 05/1988	1
25586-11010	2E..EL30 NO.1	05/1986 - 05/1988	1
25509 - INSULATOR SUB-ASSY, MANIFOLD CONVERTOR
25587-11010	2E..EL30 NO.2	05/1986 - 05/1988	1
25586-11010	2E..EL30 NO.1	05/1986 - 05/1988	1
25576 - GASKET, MANIFOLD CONVERTER
25576-15010	2E,3E#..EL3#	05/1986 - 05/1988	1
Common parts
90116-08204
90179-06007
90179-08017
90179-08044
90179-10096
91611-60825
91651-60612
91651-60816
92122-40818
92122-60612

EL30-KGHFS (1986)

(8605- )2E,3E
