EL30-KGHFS (1988)
Toyota Corolla 2
Production
May 1988
-
Sep 1990
Engine
2E
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8805- )CBR,EFI

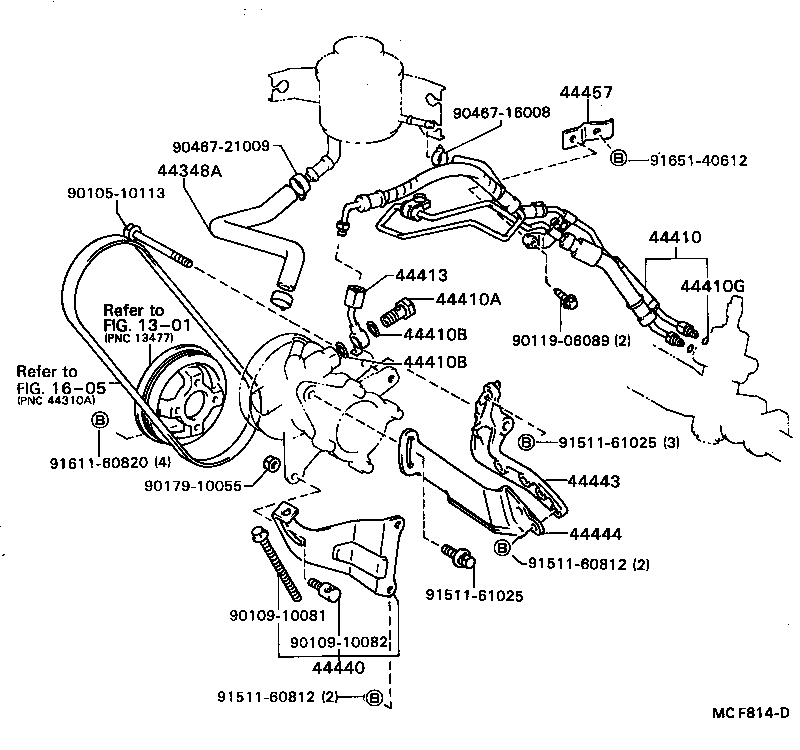

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1 | ||||
| 44348-16011 |
EL3#..LIM,ZX |
1 | ||
| 44410 - TUBE ASSY, PRESSURE FEED | ||||
| 44410-16080 |
EL3#..LIM,ZX |
1 | ||
| 44410-16070 |
EL3#..LIM,ZX |
1 | ||
| 44410A - BOLT, UNION(FOR PRESSURE FEED TUBE) | ||||
| 90401-16008 |
EL3#,NL30..LIM,ZX |
1 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
EL3#,NL30..LIM,ZX |
2 | ||
| 44410B - GASKET(FOR PRESSURE FEED TUBE) | ||||
| 90430-16242 |
EL3#,NL30..LIM,ZX |
2 | ||
| 44410G - RING, O(FOR PRESSURE FEED TUBE) | ||||
| 90301-07009 |
EL3#,NL30..LIM,ZX |
3 | ||
| 44413 - TUBE, PRESSURE FEED, NO.1 | ||||
| 44413-16021 |
EL30..LIM |
1 | ||
| 44440 - BRACKET ASSY, PUMP | ||||
| 44440-16010 |
EL30..LIM |
1 | ||
| 44443 - BRACKET, PUMP | ||||
| 44443-16010 |
EL3#..LIM,ZX |
1 | ||
| 44444 - STAY, PUMP, REAR | ||||
| 44444-16011 |
EL3#..LIM,ZX |
1 | ||
| Common parts | ||||
| 90105-10113 | ||||
| 90109-10081 | ||||
| 90109-10082 | ||||
| 90119-06089 | ||||
| 90179-10055 | ||||
| 90467-16008 | ||||
| 90467-21009 | ||||
| 91511-60812 | ||||
| 91511-61025 | ||||
| 91611-60820 | ||||
| 91651-40612 | ||||
| Linked diagrams | ||||
| 1301 | ||||
| 1605 | ||||
