EL30-KGHDS (1986)
Toyota Corolla 2
ILLUST NO. 1 OF 2(8605- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-16150 |
EL3#..3DS |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-16110 |
EL3#..3DS |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-16150 |
EL3#..3DS |
1 | ||
| 67111-16160 |
EL3#..3DS |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-16140 |
EL3#..3DS |
1 | ||
| 67112-16130 |
EL3#..3DS |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67433-16040 |
EL3#..3DS |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67434-16040 |
EL3#..3DS |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-16050 |
EL3#..3DS |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-16050 |
EL3#..3DS |
1 | ||
| 67495 - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER | ||||
| 67496-16040 |
EL30..3DS..(CD,GL,TX) LH,W/*FM |
1 | ||
| 67495-16040 |
EL30..3DS..(CD,GL,TX) RH,W/*FM |
1 | ||
| 67495-16030 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) RH,W/*FM,BELT MOULDING |
1 | ||
| 67801 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 RH | ||||
| 67831-16100 |
EL3#..3DS |
1 | ||
| 67802 - COVER SUB-ASSY, FRONT DOOR HOLE, NO.1 LH | ||||
| 67831-16100 |
EL3#..3DS |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-16210 |
EL3#..3DS |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
EL3#..3DS |
42 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-16210 |
EL3#..3DS |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-16140 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68111-16130 |
EL30..3DS..TX *TEM,厚さ=3.5,WINDY,*TEM,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-16130 |
EL30..3DS..TX *TEM,厚さ=3.5,WINDY,*TEM,T=3.5 |
1 | ||
| 68112-16140 |
EL3#..3DS..(GL,GP,LIM,SR,TX,ZX) *TT,厚さ=3.5,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-16150 |
EL3#..3DS |
2 | ||
| 68161 - WEATHERSTRIP, FRONT DOOR GLASS, OUTER | ||||
| 68210-16060 |
EL30..3DS..(CD,GL,TX) LH |
1 | ||
| 68160-16070 |
EL30..3DS..(CD,GL,TX) RH |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68170-16080 |
EL3#..3DS |
2 | ||
| 68170A - CLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET) | ||||
| 68211-10030 |
EL3#..3DS |
14 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-10020 |
EL3#,NL30 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
EL3#,NL30 |
2 | ||
| Common parts | ||||
| 90179-05032 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||
| 90541-09053 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||

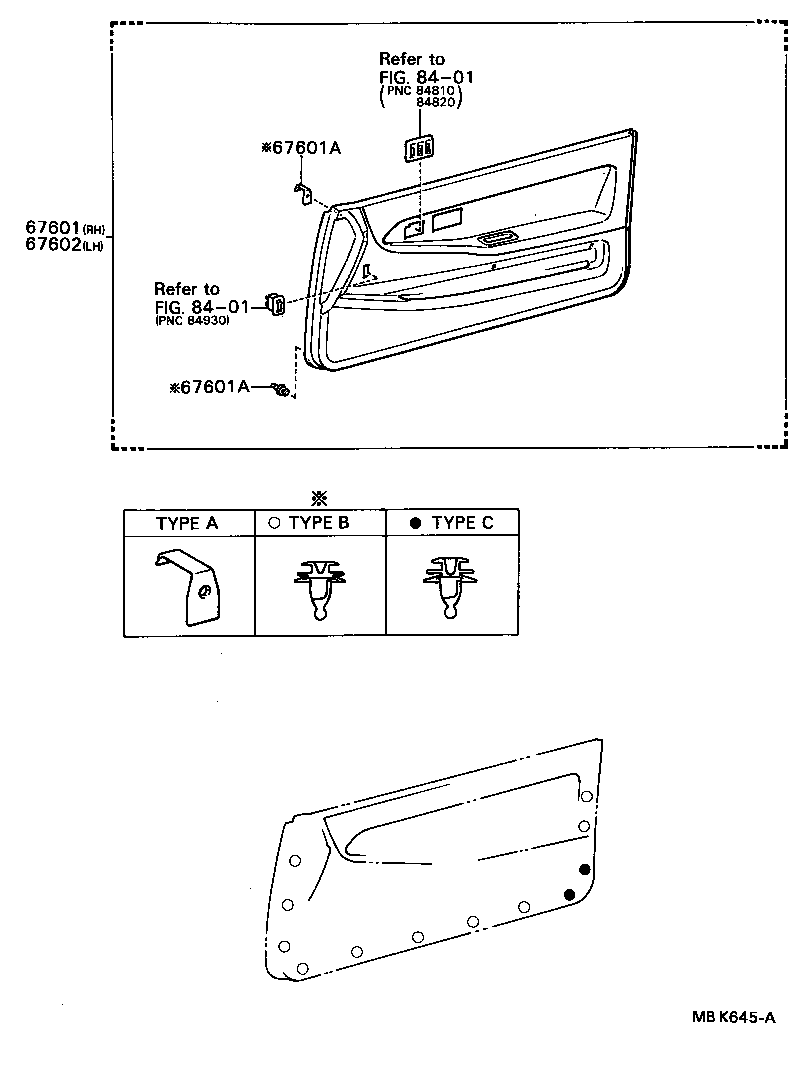

ILLUST NO. 2 OF 2(8605- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-1633003 |
EL30..3DS..TX GRAY,GRAY,TRIM2# |
1 | ||
| 67610-1633004 |
EL30..3DS..(CD,TX) BLUE,BLUE,TRIM8# |
1 | ||
| 67610-1633005 |
EL30..3DS..TX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
EL3#..3DS TYPE C |
4 | ||
| 67771-16050 |
EL3#..3DS TYPE A |
2 | ||
| 67771-32010 |
EL3#..3DS TYPE B |
20 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-14030 |
EL3#..3DS TYPE C |
4 | ||
| 67771-16050 |
EL3#..3DS TYPE A |
2 | ||
| 67771-32010 |
EL3#..3DS TYPE B |
20 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-1624005 |
EL30..3DS..TX BEIGE,BEIGE,TRIM4# |
1 | ||
| 67620-1624004 |
EL30..3DS..(CD,TX) BLUE,BLUE,TRIM8# |
1 | ||
| 67620-1624003 |
EL30..3DS..TX GRAY,GRAY,TRIM2# |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
