EL30-KGHDS (1986)

Toyota Corolla 2

Production May 1986 - May 1988
Engine 2E
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8605- )2E,3E

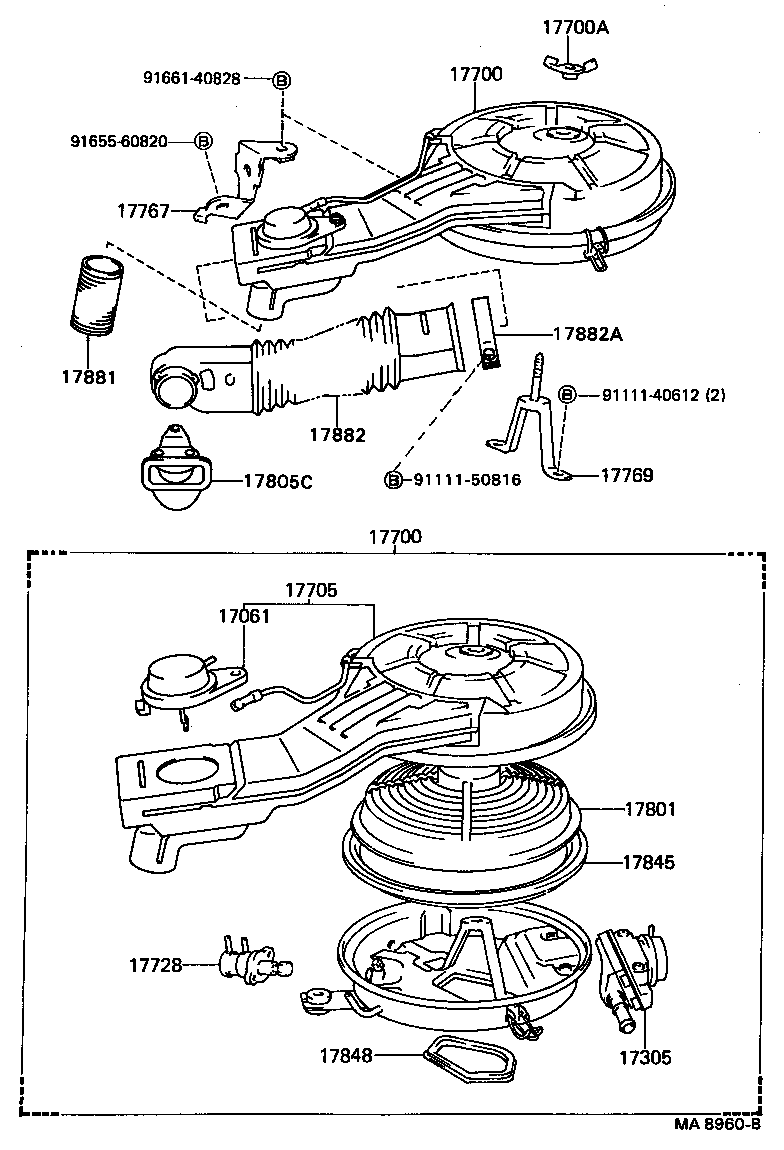

Click highlighted areas on diagram

diagram 17061 17305 17700 17700 17700A 17705 17728 17767 17769 17801 17805C 17845 17848 17881 17882 17882A 9111140612 9111150816 9165560820 9166140828
Part # Description Qty Price
17061 - DIAPHRAGM SUB-ASSY
17061-11030

2E,3E..EL3#

 1
17305 - VALVE SUB-ASSY, REED
17350-11040

2E..EL30

 1
17350-11011

2E,3E..EL3#

 1
17700 - CLEANER ASSY, AIR
17700-11260

2E..EL30

 1
17700 - CLEANER ASSY, AIR
17700-11260

2E..EL30

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-06009

2E,3E..EL3#

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-11230

2E,3E..EL3#

 1
17728 - VALVE, THERMOSTATIC
17728-11050

2E..EL30

 1
17728-11030

2E,3E..EL3#

 1
17767 - BRACKET, AIR CLEANER
17771-11010

2E,3E..EL3#

 1
17769 - SUPPORT, AIR CLEANER
17769-11020

2E,3E..EL3#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-10030

2E,3E..EL3#

 1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-11050

2E,3E..EL3#..CD,GL,LIM,TX,ZX

 1
17845 - GASKET, AIR CLEANER CAP
17845-10020

2E,3E..EL3#

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-15010

2E,3E..EL3#

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-11120

2E,3E..EL3#

 1
17882 - HOSE, AIR CLEANER, NO.2
17881-11100

2E,3E..EL3#

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
78186-16050

2E,3E..EL3#

 1
Common parts
91111-40612
91111-50816
91655-60820
91661-40828
