AL21-KHMSH (1982)

Toyota Corolla 2

Production May 1982 - Aug 1984
Engine 3AHU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

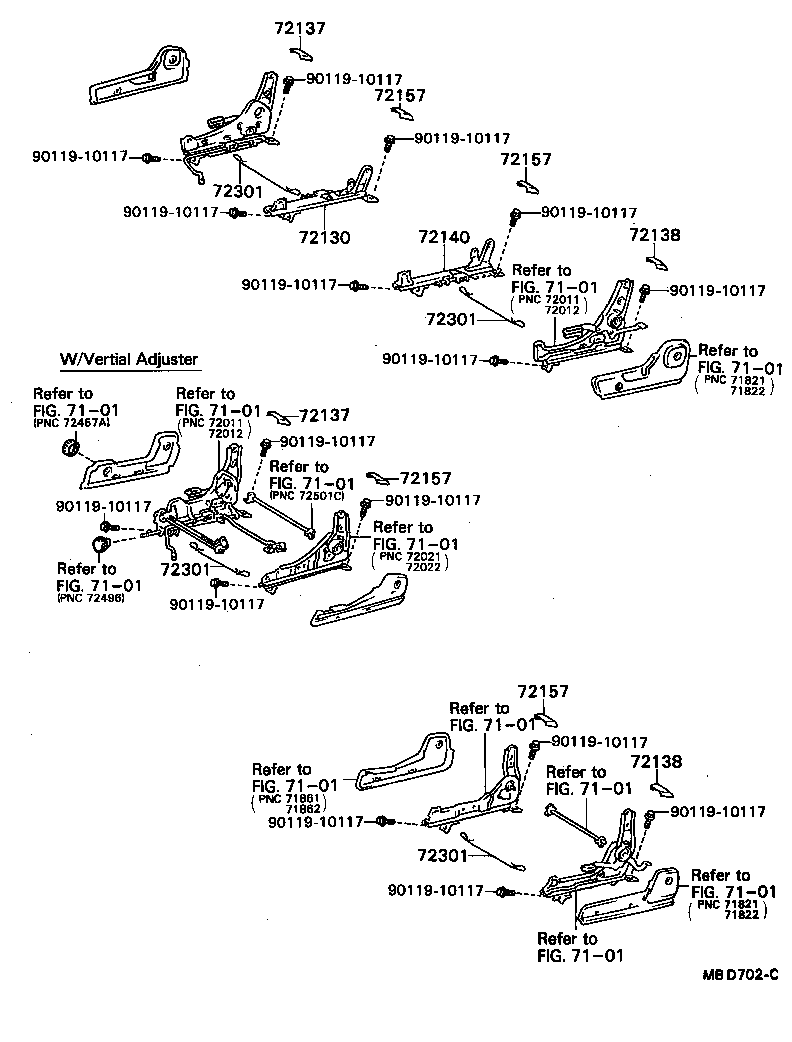

Click highlighted areas on diagram

diagram 7101 7101 7101 7101 7101 7101 7101 7101 7101 7101 7101 7101 72130 72137 72137 72138 72138 72140 72157 72157 72157 72157 72301 72301 72301 72301 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117 9011910117
Part # Description Qty Price
72137 - COVER, SEAT TRACK, OUTER RH
72137-1601001

AL2#

BLACK,BLACK

 1
72137 - COVER, SEAT TRACK, OUTER RH
72137-1601001

AL2#

BLACK,BLACK

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-1601001

AL2#

BLACK,BLACK

 1
72138 - COVER, SEAT TRACK, OUTER LH
72138-1601001

AL2#

BLACK,BLACK

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72158-1601001

AL2#

LH,BLACK,BLACK

 1
72157-1601001

AL2#

RH,BLACK,BLACK

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72158-1601001

AL2#

LH,BLACK,BLACK

 1
72157-1601001

AL2#

RH,BLACK,BLACK

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72158-1601001

AL2#

LH,BLACK,BLACK

 1
72157-1601001

AL2#

RH,BLACK,BLACK

 1
72157 - COVER, SEAT TRACK BRACKET, INNER
72158-1601001

AL2#

LH,BLACK,BLACK

 1
72157-1601001

AL2#

RH,BLACK,BLACK

 1
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16010

AL21..SE,SR

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16010

AL21..SE,SR

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16010

AL21..SE,SR

 2
72301 - WIRE SUB-ASSY, SEAT TRACK EQUALIZING
72301-16010

AL21..SE,SR

 2
Common parts
90119-10117
Linked diagrams
7101
