AL21-KHMES (1982)
Toyota Corolla 2

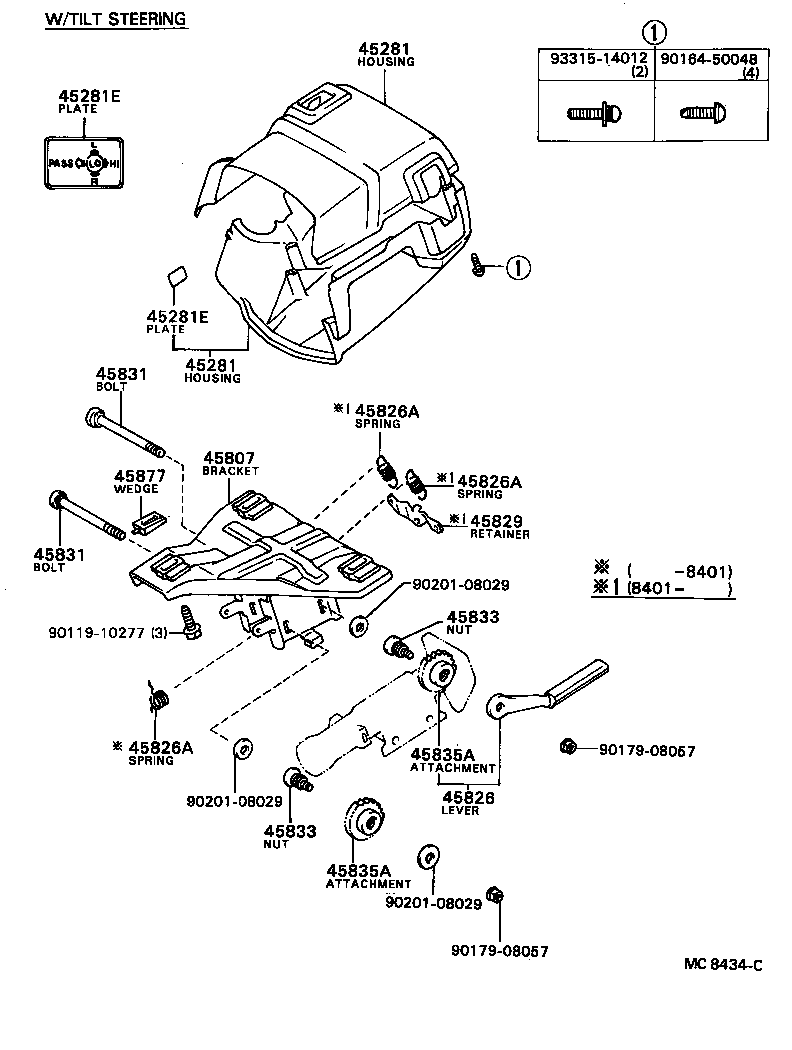

ILLUST NO. 2 OF 4(8205-8408)SE ; (8408- )GL,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1602003 |
AL21..SE LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-1602006 |
AL21..SE LWR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603003 |
AL21..SE UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1603006 |
AL21..SE UPR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603002 |
AL21..SE UPR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45287-1602002 |
AL21..SE LWR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1602003 |
AL21..SE LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-1602006 |
AL21..SE LWR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603003 |
AL21..SE UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1603006 |
AL21..SE UPR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603002 |
AL21..SE UPR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45287-1602002 |
AL21..SE LWR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AL2# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AL2# |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45082-16020 |
AL21..SE |
1 | ||
| 45082-16011 |
AL21..SE |
1 | ||
| 45082-16010 |
AL21..SE |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45804-16011 |
AL21..SE |
1 | ||
| 45804-16010 |
AL21..SE |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
AL21..SE |
2 | ||
| 90506-14045 |
AL21..SE |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
AL21..SE |
2 | ||
| 90506-14045 |
AL21..SE |
2 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90508-29014 |
AL21..SE |
2 | ||
| 90506-14045 |
AL21..SE |
2 | ||
| 45829 - RETAINER, TILT STEERING RETURN SPRING | ||||
| 45829-16020 |
AL21..SE |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16010 |
AL21..SE UPR |
1 | ||
| 45832-16010 |
AL21..SE LWR |
1 | ||
| 45831 - BOLT, TILT LEVER LOCK, NO.1 | ||||
| 45831-16010 |
AL21..SE UPR |
1 | ||
| 45832-16010 |
AL21..SE LWR |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-16010 |
AL21..SE UPR |
1 | ||
| 45834-16010 |
AL21..SE LWR |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-16010 |
AL21..SE UPR |
1 | ||
| 45834-16010 |
AL21..SE LWR |
1 | ||
| 45835A - ATTACHMENT, TILT LEVER SERRATION | ||||
| 45835-16011 |
AL21..SE |
2 | ||
| 45835-16010 |
AL21..SE |
2 | ||
| 45835A - ATTACHMENT, TILT LEVER SERRATION | ||||
| 45835-16011 |
AL21..SE |
2 | ||
| 45835-16010 |
AL21..SE |
2 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL2# |
1 | ||
| Common parts | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90179-08057 | ||||
| 90201-08029 | ||||
| 93315-14012 | ||||

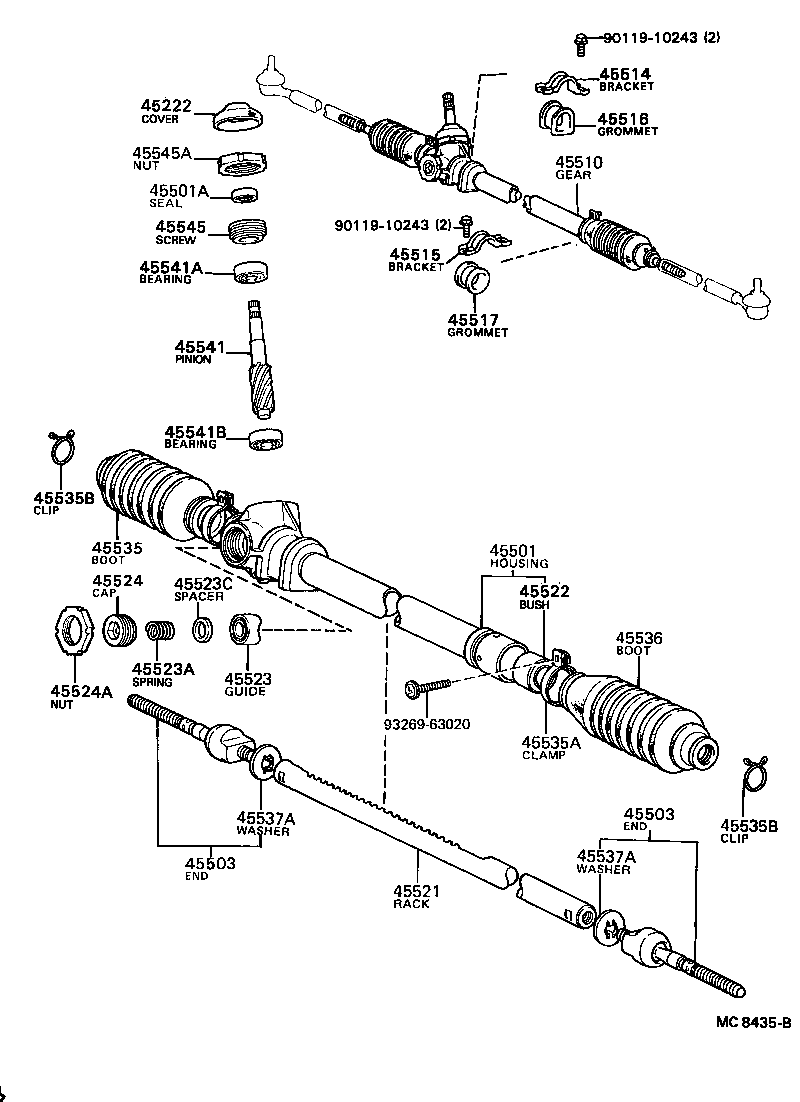

ILLUST NO. 3 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-10030 |
AL2# |
1 | ||
| 45501 - HOUSING SUB-ASSY, STEERING RACK | ||||
| 45501-16131 |
AL2# |
1 | ||
| 45501-16210 |
AL2# |
1 | ||
| 45501A - SEAL, TYPE T OIL(FOR STEERING RACK HOUSING) | ||||
| 90311-15001 |
AL2# |
1 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19025 |
AL2# |
2 | ||
| 45503 - END SUB-ASSY, STEERING RACK | ||||
| 45503-19025 |
AL2# |
2 | ||
| 45510 - GEAR ASSY, STEERING | ||||
| 45510-16070 |
AL2# |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16020 |
AL2# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-16020 |
AL2# |
1 | ||
| 45515-16030 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45515-16030 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16020 |
AL2# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10010 |
AL2# |
1 | ||
| 45517-16030 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45517-16030 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| 45521 - RACK, STEERING | ||||
| 45521-16130 |
AL2# D=24.645-24.665 |
1 | ||
| 45521-16110 |
AL2# D=24.660-24.680 |
1 | ||
| 45522 - BUSH, STEERING RACK | ||||
| 45522-10030 |
AL2# |
1 | ||
| 45522-10021 |
AL2# |
1 | ||
| 45523 - GUIDE, RACK(FOR STEERING GEAR) | ||||
| 45523-16011 |
AL2# |
1 | ||
| 45523A - SPRING(FOR STEERING GEAR RACK GUIDE) | ||||
| 90501-23007 |
AL2# |
1 | ||
| 45523C - SPACER(FOR RACK GUIDE) | ||||
| 90560-23003 |
AL2# |
1 | ||
| 45524 - CAP, STEERING RACK GUIDE SPRING | ||||
| 45524-16010 |
AL2# |
1 | ||
| 45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP) | ||||
| 90179-36001 |
AL2# |
1 | ||
| 45535 - BOOT, STEERING RACK, NO.1 | ||||
| 45535-12011 |
AL2# |
1 | ||
| 45535A - CLAMP(FOR STEERING RACK BOOT) | ||||
| 90461-10273 |
AL2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AL2# |
2 | ||
| 45535B - CLIP(FOR STEERING RACK BOOT) | ||||
| 90467-18003 |
AL2# |
2 | ||
| 45536 - BOOT, STEERING RACK, NO.2 | ||||
| 45536-12011 |
AL2# |
1 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AL2# |
2 | ||
| 45537A - WASHER, CLAW(FOR STEERING RACK END LOCK) | ||||
| 90214-14002 |
AL2# |
2 | ||
| 45541 - PINION, STEERING | ||||
| 45541-16070 |
AL2# |
1 | ||
| 45541A - BEARING, RADIAL BALL(FOR STEERING PINION UPPER) | ||||
| 90363-15003 |
AL2# |
1 | ||
| 45541B - BEARING, RADIAL BALL(FOR STEERING PINION LOWER) | ||||
| 90363-13001 |
AL2# |
1 | ||
| 45545 - SCREW, PINION BEARING ADJUSTING | ||||
| 45545-10010 |
AL2# |
1 | ||
| 45545A - NUT(FOR PINION BEARING ADJUSTING SCREW) | ||||
| 90179-38001 |
AL2# |
1 | ||
| Common parts | ||||
| 90119-10243 | ||||
| 93269-63020 | ||||

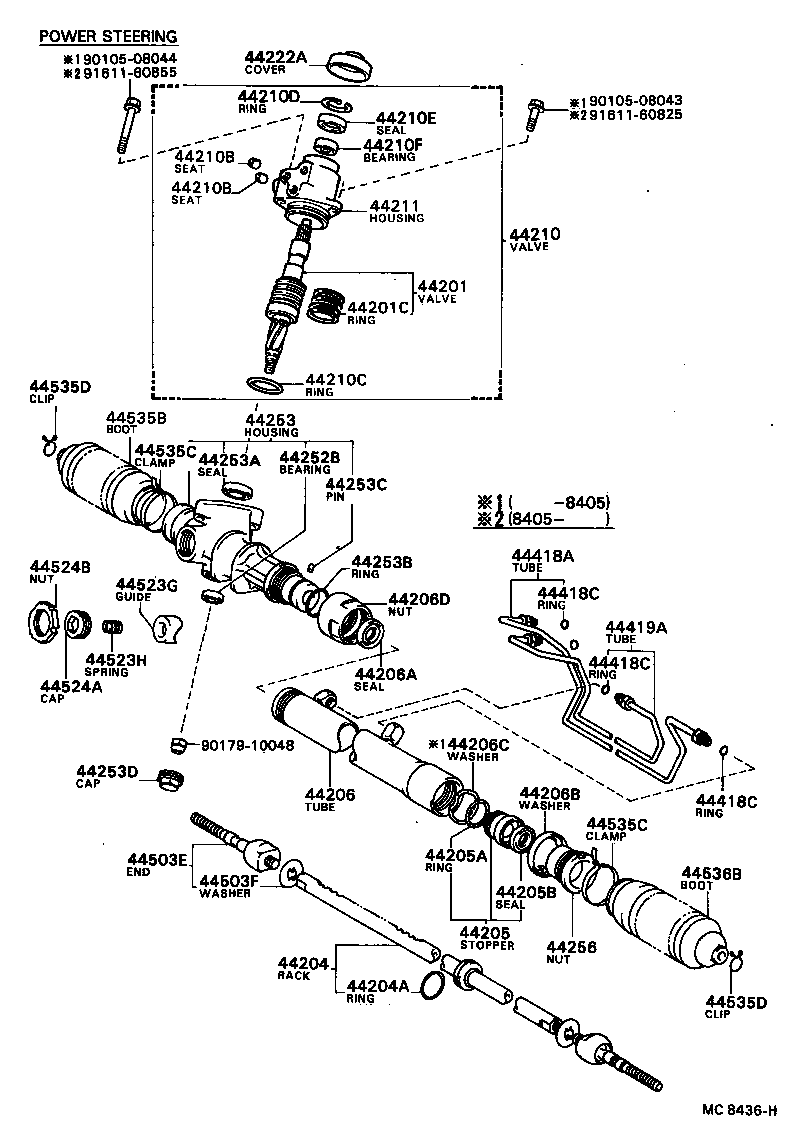

ILLUST NO. 4 OF 4(8205-8301)AL21..GL,SE ; (8301-8408)GL,SE ; (8408- )DLX,GL,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44201 - VALVE SUB-ASSY, POWER STEERING CONTROL | ||||
| 44201-16010 |
AL2#..GL,SE |
1 | ||
| 44201-16010 |
AL21..GL,SE |
1 | ||
| 44201C - RING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90562-33001 |
AL21..GL,SE |
4 | ||
| 90562-33001 |
AL2#..GL,SE |
4 | ||
| 44204 - RACK SUB-ASSY, POWER STEERING | ||||
| 44204-16010 |
AL21..GL,SE |
1 | ||
| 44204-16010 |
AL2#..GL,SE |
1 | ||
| 44204A - RING(FOR RACK STEERING PISTON) | ||||
| 90562-34002 |
AL21..GL,SE |
1 | ||
| 90562-34002 |
AL2#..GL,SE |
1 | ||
| 44205 - STOPPER SUB-ASSY, CYLINDER END | ||||
| 44205-16010 |
AL21..GL,SE |
1 | ||
| 44205-16010 |
AL2#..GL,SE |
1 | ||
| 44205-16011 |
AL2#..GL,SE |
1 | ||
| 44205A - RING, O(FOR CYLINDER END STOPPER) | ||||
| 90301-33004 |
AL21..GL,SE |
1 | ||
| 90301-33004 |
AL2#..GL,SE |
1 | ||
| 44205B - SEAL, OIL(FOR CYLINDER END STOPPER) | ||||
| 90311-24005 |
AL2#..GL,SE |
1 | ||
| 90311-24005 |
AL21..GL,SE |
1 | ||
| 44206 - TUBE SUB-ASSY, POWER STEERING CYLINDER | ||||
| 44206-16010 |
AL21..GL,SE |
1 | ||
| 44206-16010 |
AL2#..GL,SE |
1 | ||
| 44206A - SEAL, OIL(FOR POWER STEERING CYLINDER) | ||||
| 90311-24002 |
AL21..GL,SE |
1 | ||
| 90311-24002 |
AL2#..GL,SE |
1 | ||
| 44206B - WASHER, CLAW(FOR POWER STEERING CYLINDER) | ||||
| 90214-47001 |
AL2#..GL,SE |
1 | ||
| 90214-47001 |
AL21..GL,SE |
1 | ||
| 44206C - WASHER, WAVE(FOR POWER STEERING CYLINDER) | ||||
| 90206-39001 |
AL2#..GL,SE |
1 | ||
| 90206-39001 |
AL21..GL,SE |
1 | ||
| 44206D - NUT(FOR POWER STEERING CYLINDER SET) | ||||
| 90179-45001 |
AL2#..GL,SE |
1 | ||
| 90179-45001 |
AL21..GL,SE |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44210-16011 |
AL2#..GL,SE |
1 | ||
| 44210-16011 |
AL21..GL,SE |
1 | ||
| 44210-16010 |
AL21..GL,SE |
1 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-07003 |
AL21..GL,SE |
2 | ||
| 90410-07003 |
AL2#..GL,SE |
2 | ||
| 44210B - SEAT, UNION(FOR POWER STEERING CONTROL VALVE) | ||||
| 90410-07003 |
AL21..GL,SE |
2 | ||
| 90410-07003 |
AL2#..GL,SE |
2 | ||
| 44210C - RING, O(FOR POWER STEERING CONTROL VALVE) | ||||
| 90301-42001 |
AL2#..GL,SE |
1 | ||
| 90301-42001 |
AL21..GL,SE |
1 | ||
| 44210D - RING, HOLE SNAP(FOR POWER STEERING CONTROL VALVE) | ||||
| 96151-03200 |
AL2#..GL,SE |
1 | ||
| 96151-03200 |
AL21..GL,SE |
1 | ||
| 44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE) | ||||
| 90311-19005 |
AL2#..GL,SE |
1 | ||
| 90311-19005 |
AL21..GL,SE |
1 | ||
| 44210F - BEARING(FOR POWER STEERING CONTROL VALVE) | ||||
| 90364-19005 |
AL2#..GL,SE |
1 | ||
| 90364-19005 |
AL21..GL,SE |
1 | ||
| 44211 - HOUSING, CONTROL VALVE | ||||
| 44211-16011 |
AL2#..GL,SE |
1 | ||
| 44211-16010 |
AL21..GL,SE |
1 | ||
| 44211-16011 |
AL21..GL,SE |
1 | ||
| 44222A - COVER, DUST(FOR POWER STEERING GEAR) | ||||
| 45222-16020 |
AL2#..GL,SE |
1 | ||
| 45222-16020 |
AL21..GL,SE |
1 | ||
| 44252B - BEARING(FOR POWER STEERING PINION) | ||||
| 90363-12006 |
AL21..GL,SE |
1 | ||
| 90363-12006 |
AL2#..GL,SE |
1 | ||
| 44253 - HOUSING, POWER STEERING RACK | ||||
| 44203-16010 |
AL2#..GL,SE |
1 | ||
| 44203-16010 |
AL21..GL,SE |
1 | ||
| 44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING) | ||||
| 90310-23004 |
AL2#..GL,SE |
1 | ||
| 90310-23004 |
AL21..GL,SE |
1 | ||
| 44253B - RING, O(FOR POWER STEERING RACK HOUSING) | ||||
| 90301-33004 |
AL2#..GL,SE |
1 | ||
| 90301-33004 |
AL21..GL,SE |
1 | ||
| 44253C - PIN(FOR POWER STEERING RACK HOUSING) | ||||
| 90256-04002 |
AL21..GL,SE |
1 | ||
| 90256-04002 |
AL2#..GL,SE |
1 | ||
| 44253D - CAP, POWER STEERING RACK HOUSING | ||||
| 44283-16010 |
AL21..GL,SE |
1 | ||
| 44283-16010 |
AL2#..GL,SE |
1 | ||
| 44256 - NUT, CYLINDER END STOPPER | ||||
| 44275-16010 |
AL21..GL,SE |
1 | ||
| 44275-16010 |
AL2#..GL,SE |
1 | ||
| 44418A - TUBE, STEERING RIGHT TURN PRESSURE | ||||
| 44418-16010 |
AL2#..GL,SE |
1 | ||
| 44418-16010 |
AL21..GL,SE |
1 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-05005 |
AL2#..GL,SE |
4 | ||
| 90301-05005 |
AL21..GL,SE |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-05005 |
AL2#..GL,SE |
4 | ||
| 90301-05005 |
AL21..GL,SE |
4 | ||
| 44418C - RING, O(FOR STEERING TURN PRESSURE TUBE) | ||||
| 90301-05005 |
AL2#..GL,SE |
4 | ||
| 90301-05005 |
AL21..GL,SE |
4 | ||
| 44419A - TUBE, STEERING LEFT TURN PRESSURE | ||||
| 44419-16010 |
AL2#..GL,SE |
1 | ||
| 44419-16010 |
AL21..GL,SE |
1 | ||
| 44503E - END SUB-ASSY, STEERING RACK(FOR POWER STEERING) | ||||
| 45503-19025 |
AL21..GL,SE |
2 | ||
| 45503-19025 |
AL2#..GL,SE |
2 | ||
| 44503F - WASHER, CLAW(FOR POWER STEERING RACK END) | ||||
| 90214-14002 |
AL2#..GL,SE |
2 | ||
| 90214-14002 |
AL21..GL,SE |
2 | ||
| 44523G - GUIDE, RACK(FOR POWER STEERING) | ||||
| 45523-16040 |
AL21..GL,SE |
1 | ||
| 45523-16040 |
AL2#..GL,SE |
1 | ||
| 44523H - SPRING(FOR POWER STEERING RACK GUIDE) | ||||
| 90501-20045 |
AL2#..GL,SE |
1 | ||
| 90501-20045 |
AL21..GL,SE |
1 | ||
| 44524A - CAP, RACK GUIDE SPRING(FOR POWER STEERING) | ||||
| 45524-16030 |
AL21..GL,SE |
1 | ||
| 45524-16030 |
AL2#..GL,SE |
1 | ||
| 44524B - NUT(FOR POWER STEERING RACK GUIDE CAP) | ||||
| 90179-36002 |
AL2#..GL,SE |
1 | ||
| 90179-36002 |
AL21..GL,SE |
1 | ||
| 44535B - BOOT, STEERING RACK NO.1(FOR POWER STEERING) | ||||
| 45535-16020 |
AL21..GL,SE |
1 | ||
| 45535-16020 |
AL2#..GL,SE |
1 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AL21..GL,SE |
2 | ||
| 90949-01027 |
AL2#..GL,SE |
2 | ||
| 44535C - CLAMP(FOR POWER STEERING RACK BOOT) | ||||
| 90949-01027 |
AL21..GL,SE |
2 | ||
| 90949-01027 |
AL2#..GL,SE |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AL2#..GL,SE |
2 | ||
| 90467-18003 |
AL21..GL,SE |
2 | ||
| 44535D - CLIP(FOR POWER STEERING RACK BOOT) | ||||
| 90467-18003 |
AL2#..GL,SE |
2 | ||
| 90467-18003 |
AL21..GL,SE |
2 | ||
| 44536B - BOOT, STEERING RACK NO.2(FOR POWER STEERING) | ||||
| 45535-16020 |
AL2#..GL,SE |
1 | ||
| 45535-16020 |
AL21..GL,SE |
1 | ||
| Common parts | ||||
| 90105-08043 | ||||
| 90105-08044 | ||||
| 90179-10048 | ||||
| 91611-60825 | ||||
| 91611-60855 | ||||

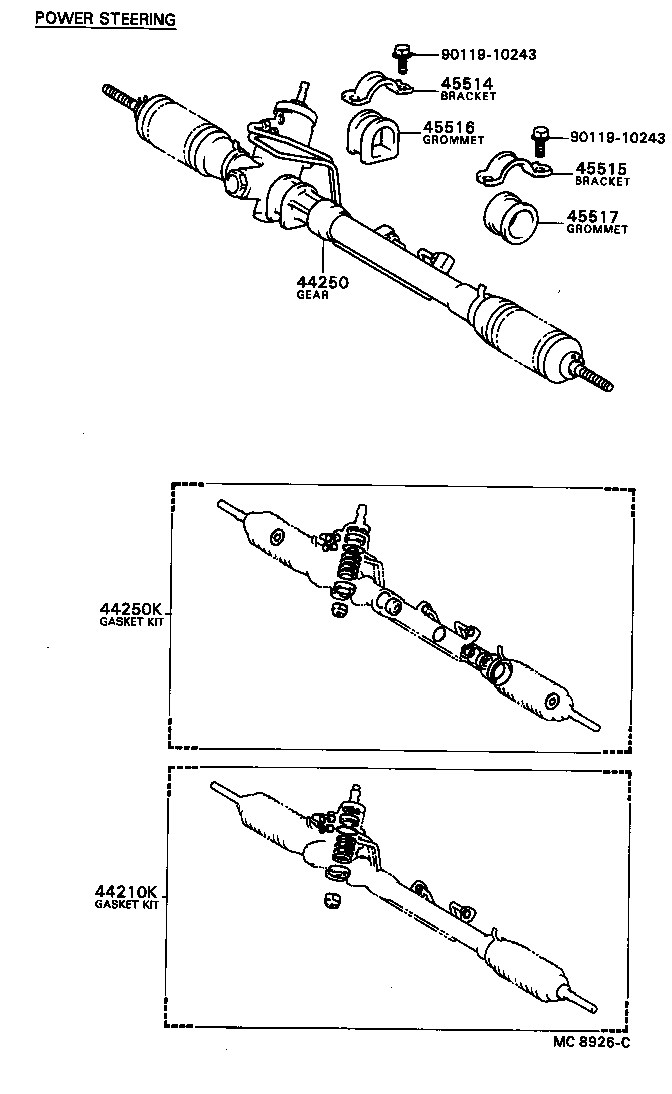

ILLUST NO. 3 OF 4(8205-8301)AL21..GL,SE ; (8301-8408)GL,SE ; (8408- )DLX,GL,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44210K - GASKET KIT, POWER STEERING CONTROL VALVE OVERHAUL | ||||
| 04455-16010 |
AL2#..GL,SE |
1 | ||
| 04455-16010 |
AL21..GL,SE |
1 | ||
| 44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION) | ||||
| 44250-16010 |
AL21..GL,SE |
1 | ||
| 44250-16011 |
AL21..GL,SE |
1 | ||
| 44250-16011 |
AL2#..GL,SE |
1 | ||
| 44250K - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION) | ||||
| 04445-16020 |
AL2#..GL,SE |
1 | ||
| 04445-16010 |
AL2#..GL,SE |
1 | ||
| 04445-16010 |
AL21..GL,SE |
1 | ||
| 45514 - BRACKET, STEERING RACK HOUSING, NO.1 | ||||
| 45514-16020 |
AL2# |
1 | ||
| 45515 - BRACKET, STEERING RACK HOUSING, NO.2 | ||||
| 45515-16020 |
AL2# |
1 | ||
| 45515-16030 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45515-16030 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| 45516 - GROMMET, STEERING RACK HOUSING, NO.1 | ||||
| 45516-16020 |
AL2# |
1 | ||
| 45517 - GROMMET, STEERING RACK HOUSING, NO.2 | ||||
| 45517-10010 |
AL2# |
1 | ||
| 45517-16030 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45517-16030 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| Common parts | ||||
| 90119-10243 | ||||

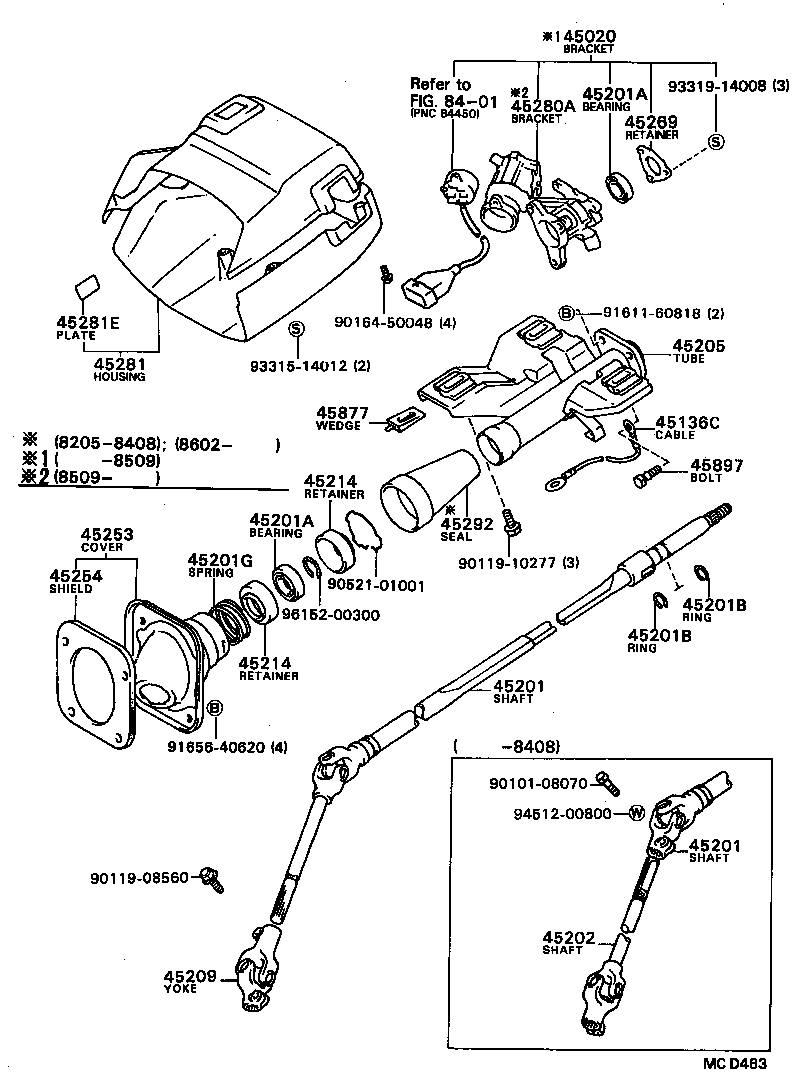

ILLUST NO. 1 OF 4(8205-8408)CTD,DLX,GL,SR ; (8408- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-16020 |
AL2# |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07204 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL21..SE UPR,W/TILT STEERING |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL21..SE UPR,W/TILT STEERING |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AL2# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AL2# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AL2# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AL2# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL2# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-16030 |
AL2# |
1 | ||
| 45202-16050 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45202-16050 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16031 |
AL21..SE |
1 | ||
| 45205-16030 |
AL21..SE |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16030 |
AL2# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16020 |
AL2# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL2# |
1 | ||
| 45281 - HOUSING, STEERING COLUMN | ||||
| 45287-1602003 |
AL21..SE LWR,GRAY,GRAY,TRIM1# |
1 | ||
| 45287-1602006 |
AL21..SE LWR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603003 |
AL21..SE UPR,GRAY,GRAY,TRIM1# |
1 | ||
| 45286-1603006 |
AL21..SE UPR,BROWN,BROWN,TRIM4# |
1 | ||
| 45286-1603002 |
AL21..SE UPR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45287-1602002 |
AL21..SE LWR,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 45281E - PLATE, SAFETY CAUTION | ||||
| 45283-12010 |
AL2# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL2# |
1 | ||
| 45877 - WEDGE, CASTER(FOR STEERING COLUMN TUBE SETTING) | ||||
| 45877-12010 |
AL2# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08560 | ||||
| 90119-10277 | ||||
| 90164-50048 | ||||
| 90521-01001 | ||||
| 91611-60818 | ||||
| 91656-40620 | ||||
| 93315-14012 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||

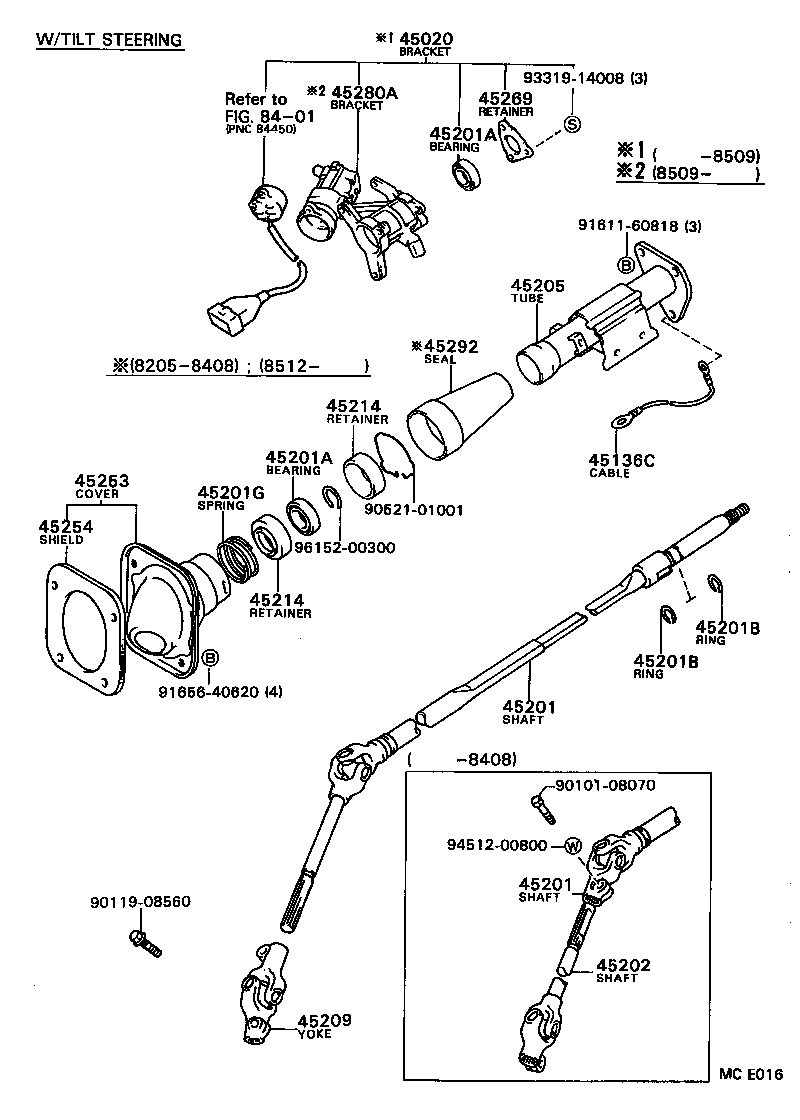

ILLUST NO. 1 OF 4(8205-8408)SE ; (8408- )GL,SR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45020 - BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH | ||||
| 45020-16020 |
AL2# |
1 | ||
| 45136C - CABLE, BOND(FOR HORN EARTH) | ||||
| 90980-07204 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201 - SHAFT SUB-ASSY, STEERING MAIN | ||||
| 45210-16050 |
AL2# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL21..SE UPR,W/TILT STEERING |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18038 |
AL21..SE UPR,W/TILT STEERING |
1 | ||
| 90363-30015 |
AL2# LWR |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AL2# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AL2# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
AL2# 厚さ=1.20,T=1.2 |
2 | ||
| 90520-17196 |
AL2# 厚さ=1.35−1.45,T=1.4 |
2 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-32003 |
AL2# |
1 | ||
| 45202 - SHAFT SUB-ASSY, STEERING INTERMEDIATE | ||||
| 45202-16030 |
AL2# |
1 | ||
| 45202-16050 |
AL21..GL,SE W/POWER STEERING |
1 | ||
| 45202-16050 |
AL2#..GL,SE W/POWER STEERING |
1 | ||
| 45205 - TUBE SUB-ASSY, STEERING COLUMN | ||||
| 45205-16031 |
AL21..SE |
1 | ||
| 45205-16030 |
AL21..SE |
1 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45214 - RETAINER, MAIN SHAFT SPRING | ||||
| 45214-10010 |
AL2# |
2 | ||
| 45253 - COVER, STEERING COLUMN HOLE | ||||
| 45025-16030 |
AL2# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-16020 |
AL2# |
1 | ||
| 45269 - RETAINER, MAIN SHAFT BEARING | ||||
| 45269-35010 |
AL2# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-10010 |
AL2# |
1 | ||
| Common parts | ||||
| 90101-08070 | ||||
| 90119-08560 | ||||
| 90521-01001 | ||||
| 91611-60818 | ||||
| 91656-40620 | ||||
| 93319-14008 | ||||
| 94512-00800 | ||||
| 96152-00300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
