AL21-KHKNS (1982)

Toyota Corolla 2

Production May 1982 - Aug 1984

Engine 3AU

Transmission 4F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8205- )

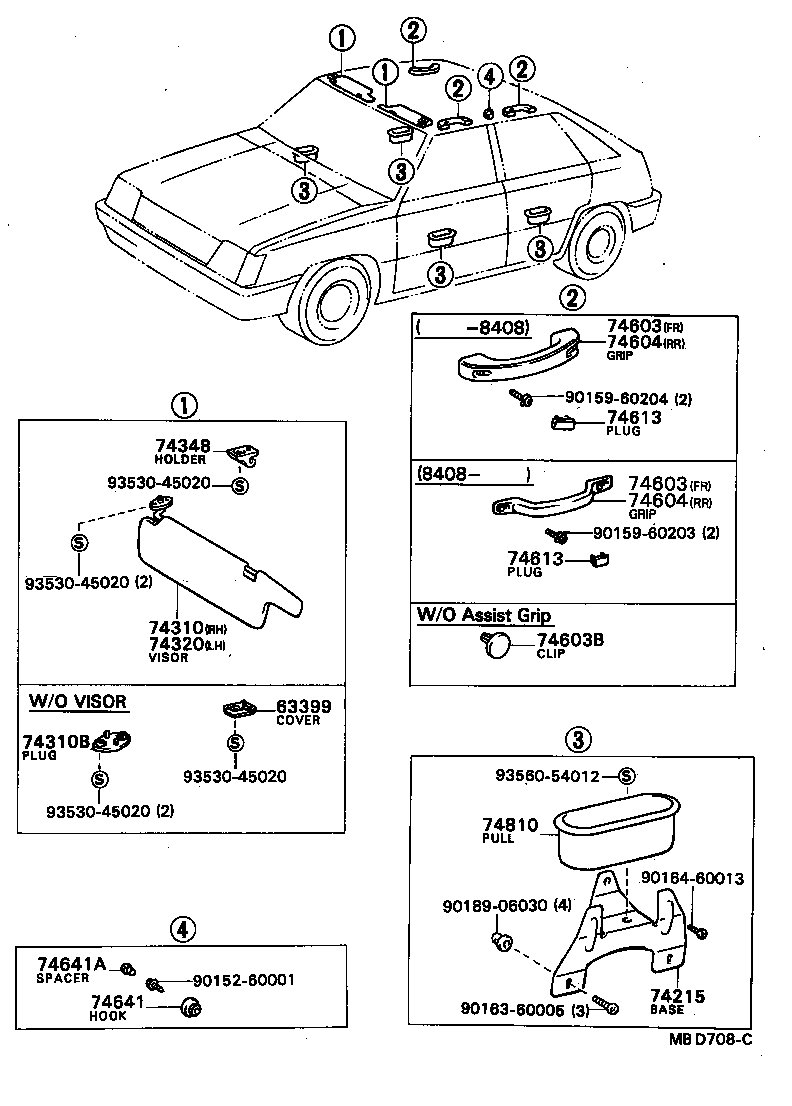

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
74215 - BASE, DOOR ARMREST
74215-16010	AL2#	05/1982 - 04/1986	4
74310 - VISOR ASSY, RH
74310-16120	AL2#..CTD,DLX,GL IVORY	05/1982 - 08/1984	1
74310-16150	AL21..SE,SR	05/1982 - 08/1984	1
74310-16220	AL2#..GL LIME,IVORY	05/1982 - 08/1984	1
74310-16190	AL21..SE,SR W/SUN ROOF,IVORY	05/1982 - 08/1984	1
74320 - VISOR ASSY, LH
74320-16120	AL2#..GL,SE,SR W/MIRROR,IVORY	05/1982 - 08/1984	1
74320-16110	AL2#..DLX,GL,SR IVORY	05/1982 - 08/1984	1
74348 - HOLDER, VISOR
74348-3201008	AL2# IVORY,IVORY	05/1982 - 04/1986	2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002018	AL2#..DLX,GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74610-1002018	AL2#..DLX,GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	1
74603B - CLIP (FOR ASSIST GRIP)
90467-0700718	AL2# IVORY,IVORY	05/1982 - 08/1984	8
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002018	AL2#..GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	2
74604 - GRIP SUB-ASSY, ASSIST, REAR
74610-1002018	AL2#..GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	2
74613 - PLUG, ASSIST GRIP
74617-1401018	AL2#..DLX,GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	6
74613 - PLUG, ASSIST GRIP
74617-1401018	AL2#..DLX,GL,SE,SR IVORY,IVORY	05/1982 - 08/1984	6
74810 - PULL ASSY, DOOR, INSIDE
74811-1601003	AL2# GRAY,GRAY,TRIM1#	05/1982 - 08/1984	4
74811-1601006	AL2# BROWN,BROWN,TRIM4#	05/1982 - 08/1984	4
74811-1601002	AL2# DARK WINE,RED/MAROON,TRIM3#	05/1982 - 08/1984	4
Common parts
90152-60001
90159-60203
90159-60204
90163-60005
90164-60013
90189-06030
93530-45020
93560-54012
