AL21-KHKNS (1982)
Toyota Corolla 2
(8205- )SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

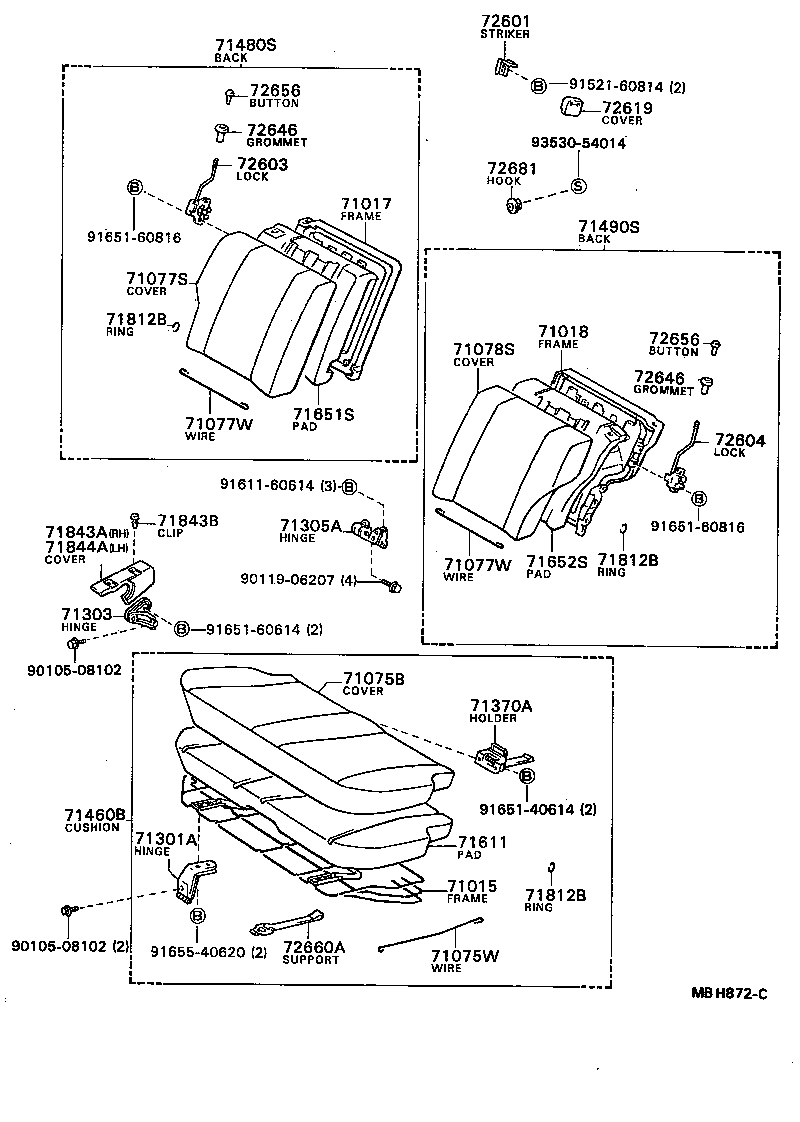

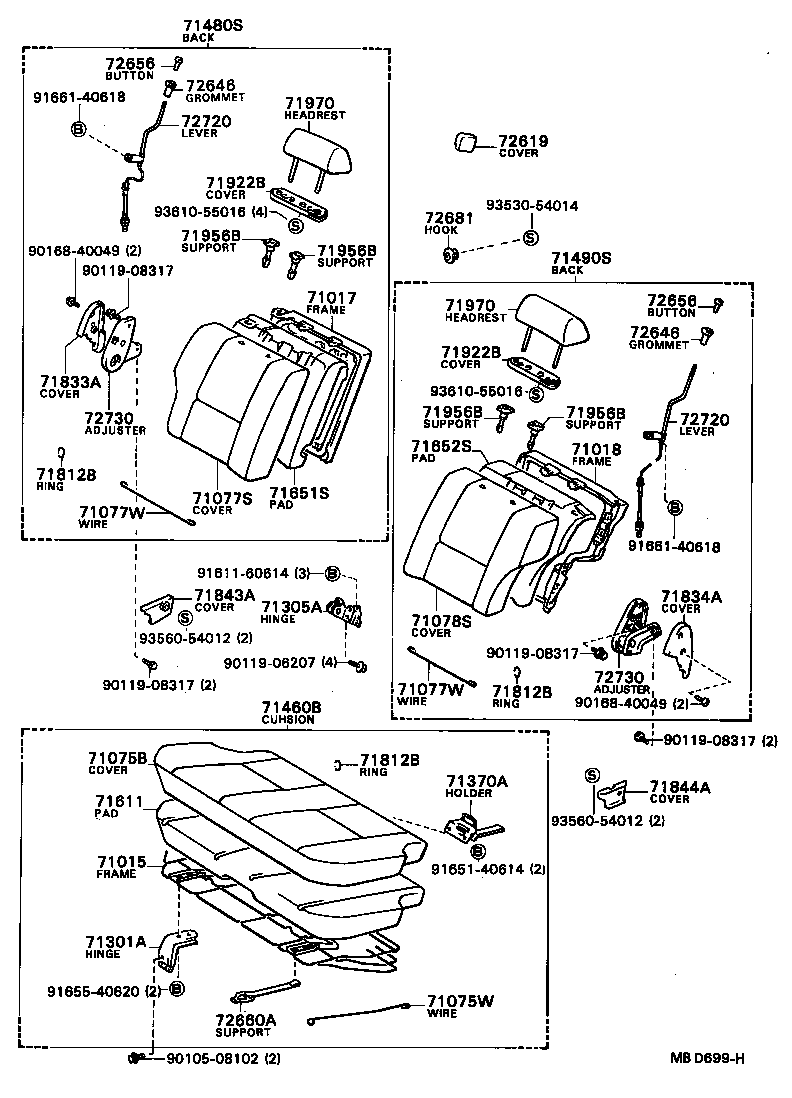

| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AL2# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16030 |
AL2#..GL,SR |
1 | ||
| 71017-16070 |
AL21..SE |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16030 |
AL2#..GL,SR |
1 | ||
| 71018-16040 |
AL21..SE |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1666003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1667006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1667003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1666016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71075-1667002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1666006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1666002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AL2# L=900 |
3 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1650003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1650002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1650016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71077-1651003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1650006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1651002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1651006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20127 |
AL2#..GL,SE,SR L=430 |
2 | ||
| 90580-26013 |
AL2#..GL,SE,SR L=600 |
2 | ||
| 90580-20109 |
AL2#..GL,SE,SR L=330 |
2 | ||
| 90580-20165 |
AL2#..GL,SE,SR L=470 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20127 |
AL2#..GL,SE,SR L=430 |
2 | ||
| 90580-26013 |
AL2#..GL,SE,SR L=600 |
2 | ||
| 90580-20109 |
AL2#..GL,SE,SR L=330 |
2 | ||
| 90580-20165 |
AL2#..GL,SE,SR L=470 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1636002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1636003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1636006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1635016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71078-1635003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1635002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1635006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71301-1601006 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 71301-1601003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16020 |
AL2#..GL,SE,SR |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 71370-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71370-1601006 |
AL2# BROWN,BROWN,TRIM3#,4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1667002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1667003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1667016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71460-1667006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1669006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1669003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1669002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1650006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1650002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1650003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1652006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1652002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1650016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1652003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1636002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1636003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1636006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1638002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1638006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1638003 |
AL21..SE FB,GRAY,GRAY,TRIM3# |
1 | ||
| 71490-1636016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16050 |
AL2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16080 |
AL2#..GL,SE,SR |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16040 |
AL2#..GL,SE,SR |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71833A - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71833-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71833-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71834A - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71834-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71834-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-1602006 |
AL2#..CTD,DLX,GL,SR BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1602002 |
AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602003 |
AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71843-1602002 |
AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843-1602003 |
AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602006 |
AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-1602002 |
AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71844-1602006 |
AL2#..CTD,DLX,GL,SR BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1602003 |
AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602003 |
AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71844-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602006 |
AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1602002 |
AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71922B - COVER, REAR SEAT HEADREST UNDER | ||||
| 71922-2201002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71922-2201015 |
AL21..SE BEIGE,BEIGE |
2 | ||
| 71922-2201003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71922B - COVER, REAR SEAT HEADREST UNDER | ||||
| 71922-2201002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71922-2201015 |
AL21..SE BEIGE,BEIGE |
2 | ||
| 71922-2201003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
AL21..SE ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
AL21..SE ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL21..SE ﾛｯｸ無,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL21..SE ﾛｯｸ無,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL21..SE ﾛｯｸ無,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL21..SE ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
AL21..SE ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
AL21..SE ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL21..SE ﾛｯｸ無,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL21..SE ﾛｯｸ無,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL21..SE ﾛｯｸ無,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL21..SE ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
AL21..SE ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
AL21..SE ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL21..SE ﾛｯｸ無,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL21..SE ﾛｯｸ無,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL21..SE ﾛｯｸ無,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL21..SE ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71956B - SUPPORT, REAR SEAT HEADREST | ||||
| 71930-1006025 |
AL21..SE ﾛｯｸ付,W/LOCK,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71930-1006002 |
AL21..SE ﾛｯｸ付,W/LOCK,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71931-1001025 |
AL21..SE ﾛｯｸ無,BEIGE,BEIGE,TRIM4# |
2 | ||
| 71931-1001013 |
AL21..SE ﾛｯｸ無,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71931-1001002 |
AL21..SE ﾛｯｸ無,DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 71930-1006013 |
AL21..SE ﾛｯｸ付,W/LOCK,GRAY,LIGHT GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71940-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71940-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 71970 - HEADREST ASSY, REAR SEAT | ||||
| 71940-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71940-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
2 | ||
| 71940-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1601002 |
AL2#..DLX,GL,SR LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 72615-1602002 |
AL2#..DLX,GL,SR RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601006 |
AL2#..CTD,DLX,GL,SR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL2#..DLX,GL,SR RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72616-1601003 |
AL2#..DLX,GL,SR LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602002 |
AL21;AL20..5DS;AL20..3DS..GL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601002 |
AL21;AL20..5DS;AL20..3DS..GL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1602006 |
AL2#..CTD,DLX,GL,SR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72616-1601006 |
AL21;AL20..5DS;AL20..3DS..GL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL21;AL20..5DS;AL20..3DS..GL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1601003 |
AL21;AL20..5DS;AL20..3DS..GL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602006 |
AL21;AL20..5DS;AL20..3DS..GL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 72660-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72660-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 72681-1601002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72720 - LEVER ASSY, REAR SEAT RECLINING CONTROL | ||||
| 72053-16010 |
AL21..SE RH |
1 | ||
| 72054-16010 |
AL21..SE LH |
1 | ||
| 72720 - LEVER ASSY, REAR SEAT RECLINING CONTROL | ||||
| 72053-16010 |
AL21..SE RH |
1 | ||
| 72054-16010 |
AL21..SE LH |
1 | ||
| 72730 - ADJUSTER ASSY, REAR SEAT RECLINING | ||||
| 72730-16010 |
AL21..SE RH |
1 | ||
| 72740-16010 |
AL21..SE LH |
1 | ||
| 72730 - ADJUSTER ASSY, REAR SEAT RECLINING | ||||
| 72730-16010 |
AL21..SE RH |
1 | ||
| 72740-16010 |
AL21..SE LH |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 90119-08317 | ||||
| 90168-40049 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91655-40620 | ||||
| 91661-40618 | ||||
| 93530-54014 | ||||
| 93560-54012 | ||||
| 93610-55016 | ||||
(8205- )GL,SR ; (8305- )3DS..3FC..SE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015 - FRAME SUB-ASSY, REAR SEAT CUSHION | ||||
| 71015-16030 |
AL2# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-16030 |
AL2#..GL,SR |
1 | ||
| 71017-16070 |
AL21..SE |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-16030 |
AL2#..GL,SR |
1 | ||
| 71018-16040 |
AL21..SE |
1 | ||
| 71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE) | ||||
| 71075-1666003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1667006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1667003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71075-1666016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71075-1667002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075-1666006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71075-1666002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71075W - WIRE, REAR SEAT CUSHION COVER | ||||
| 90580-20015 |
AL2# L=900 |
3 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-1650003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1650002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1650016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71077-1651003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71077-1650006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077-1651002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71077-1651006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20127 |
AL2#..GL,SE,SR L=430 |
2 | ||
| 90580-26013 |
AL2#..GL,SE,SR L=600 |
2 | ||
| 90580-20109 |
AL2#..GL,SE,SR L=330 |
2 | ||
| 90580-20165 |
AL2#..GL,SE,SR L=470 |
2 | ||
| 71077W - WIRE, REAR SEAT BACK COVER | ||||
| 90580-20127 |
AL2#..GL,SE,SR L=430 |
2 | ||
| 90580-26013 |
AL2#..GL,SE,SR L=600 |
2 | ||
| 90580-20109 |
AL2#..GL,SE,SR L=330 |
2 | ||
| 90580-20165 |
AL2#..GL,SE,SR L=470 |
2 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-1636002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1636003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1636006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71078-1635016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71078-1635003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71078-1635002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71078-1635006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71301A - HINGE SUB-ASSY, REAR SEAT CUSHION | ||||
| 71301-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 71301-1601006 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 71301-1601003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 71303 - HINGE SUB-ASSY, REAR SEAT BACK | ||||
| 71303-16010 |
AL2#..CTD,DLX,GL,SR |
2 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-16020 |
AL2#..GL,SE,SR |
1 | ||
| 71370A - HOLDER ASSY, REAR SEAT CUSHION | ||||
| 71370-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 71370-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71370-1601006 |
AL2# BROWN,BROWN,TRIM3#,4# |
1 | ||
| 71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE) | ||||
| 71460-1667002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71460-1667003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1667016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM3# |
1 | ||
| 71460-1667006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1669006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71460-1669003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71460-1669002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-1650006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1650002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1650003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71480-1652006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1652002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71480-1650016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM4# |
1 | ||
| 71480-1652003 |
AL21..SE FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-1636002 |
AL2#..GL FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1636003 |
AL2#..GL FB,GRAY,GRAY,TRIM1# |
1 | ||
| 71490-1636006 |
AL2#..GL FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1638002 |
AL21..SE FB,DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71490-1638006 |
AL21..SE FB,BROWN,BROWN,TRIM4# |
1 | ||
| 71490-1638003 |
AL21..SE FB,GRAY,GRAY,TRIM3# |
1 | ||
| 71490-1636016 |
AL2#..GL FB,LIME,BROWN,BROWN,TRIM4# |
1 | ||
| 71611 - PAD, REAR SEAT CUSHION | ||||
| 71611-16050 |
AL2# |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-16080 |
AL2#..GL,SE,SR |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-16040 |
AL2#..GL,SE,SR |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71812B - CLIP(FOR REAR SEAT CUSHION COVER) | ||||
| 90468-18071 |
AL2# |
1 | ||
| 71843A - COVER, REAR SEAT RECLINING, NO.2 RH | ||||
| 71843-1602006 |
AL2#..CTD,DLX,GL,SR BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71843-1602002 |
AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602003 |
AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71843-1602002 |
AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71843-1602003 |
AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
1 | ||
| 71843-1602006 |
AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71843B - CLIP, REAR SEAT RECLINING COVER | ||||
| 90467-0914426 |
AL2#..CTD,DLX,GL,SR BROWN,BROWN,TRIM4# |
4 | ||
| 90467-0914402 |
AL2#..DLX,GL,SR DARK WINE,RED/MAROON,TRIM3# |
4 | ||
| 90467-0914413 |
AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
4 | ||
| 71844A - COVER, REAR SEAT RECLINING, NO.2 LH | ||||
| 71844-1602002 |
AL2#..DLX,GL,SR DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 71844-1602006 |
AL2#..CTD,DLX,GL,SR BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1602003 |
AL2#..DLX,GL,SR GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602003 |
AL21;AL20..5DS;AL20..3DS..GL GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 71844-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
1 | ||
| 71844-1602006 |
AL21;AL20..5DS;AL20..3DS..GL BROWN,BROWN,TRIM4# |
1 | ||
| 71844-1602002 |
AL21;AL20..5DS;AL20..3DS..GL DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72601 - STRIKER SUB-ASSY, REAR SEAT LOCK | ||||
| 72601-16040 |
AL2#..CTD,DLX,GL,SR |
2 | ||
| 72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH | ||||
| 72630-16060 |
AL2#..CTD,DLX,GL,SR |
1 | ||
| 72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH | ||||
| 72640-16040 |
AL2#..CTD,DLX,GL,SR |
1 | ||
| 72619 - COVER, REAR SEAT BACK LOCK STRIKER | ||||
| 72616-1601002 |
AL2#..DLX,GL,SR LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1601003 |
AL21..SE GRAY,GRAY,TRIM1# |
2 | ||
| 72615-1602002 |
AL2#..DLX,GL,SR RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601006 |
AL2#..CTD,DLX,GL,SR LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL2#..DLX,GL,SR RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1601002 |
AL21..SE DARK WINE,RED/MAROON,TRIM3# |
2 | ||
| 72616-1601003 |
AL2#..DLX,GL,SR LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602002 |
AL21;AL20..5DS;AL20..3DS..GL RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72616-1601002 |
AL21;AL20..5DS;AL20..3DS..GL LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 72615-1602006 |
AL2#..CTD,DLX,GL,SR RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1601006 |
AL21..SE BROWN,BROWN,TRIM4# |
2 | ||
| 72616-1601006 |
AL21;AL20..5DS;AL20..3DS..GL LH,BROWN,BROWN,TRIM4# |
1 | ||
| 72615-1602003 |
AL21;AL20..5DS;AL20..3DS..GL RH,GRAY,GRAY,TRIM1# |
1 | ||
| 72616-1601003 |
AL21;AL20..5DS;AL20..3DS..GL LH,GRAY,GRAY,TRIM1# |
1 | ||
| 72615-1602006 |
AL21;AL20..5DS;AL20..3DS..GL RH,BROWN,BROWN,TRIM4# |
1 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72646 - GROMMET, REAR SEAT BACK STOP BUTTON | ||||
| 72655-2002003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72655-2002002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72655-2002036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72656-2001036 |
AL2# BROWN,BROWN,TRIM4# |
2 | ||
| 72656-2001003 |
AL2# GRAY,GRAY,TRIM1# |
2 | ||
| 72656-2001002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
2 | ||
| 72660A - SUPPORT ASSY, REAR SEAT CUSHION | ||||
| 72660-1601006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 72660-1601002 |
AL2# DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 72660-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 72681 - HOOK, REAR SEAT BACK LOCK, LOWER | ||||
| 72681-1601003 |
AL2# GRAY,GRAY,TRIM1# |
1 | ||
| 72681-1601006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 72681-1601002 |
AL2# DARK WINE,DARK WINE,TRIM3# |
1 | ||
| Common parts | ||||
| 90105-08102 | ||||
| 90119-06207 | ||||
| 91521-60814 | ||||
| 91611-60614 | ||||
| 91651-40614 | ||||
| 91651-60614 | ||||
| 91651-60816 | ||||
| 91655-40620 | ||||
| 93530-54014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
