AL21-KHKNS (1982)

Toyota Corolla 2

Production May 1982 - Aug 1984
Engine 3AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

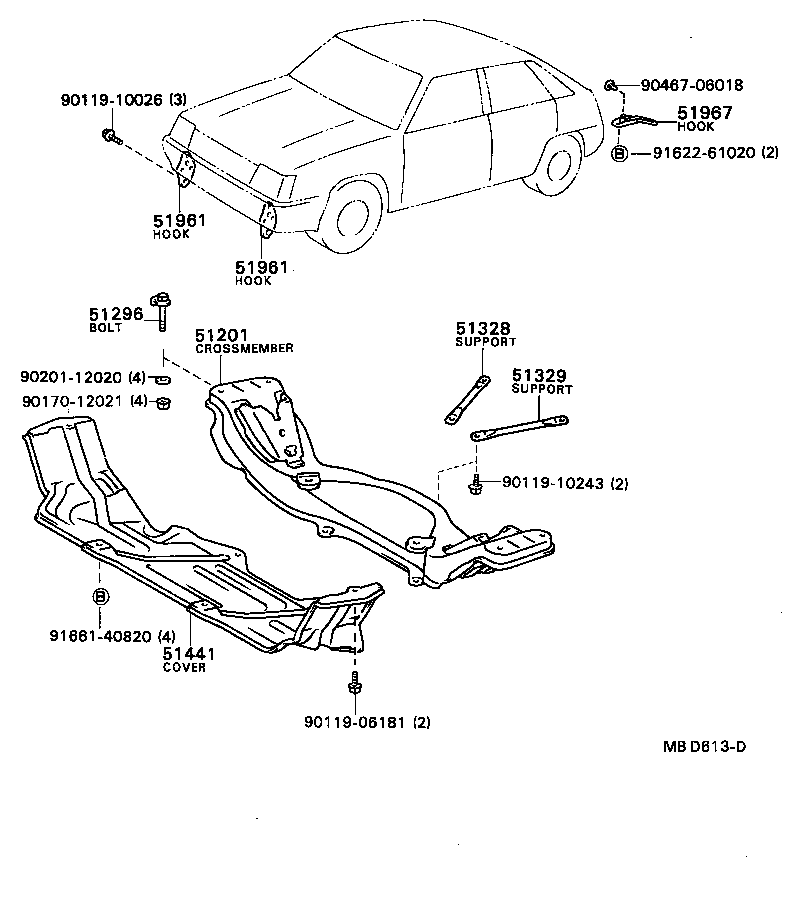

Click highlighted areas on diagram

diagram 51201 51296 51328 51329 51441 51961 51961 51967 9011906181 9011910026 9011910243 9017012021 9020112020 9046706018 9162261020 9166140820
Part # Description Qty Price
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-16050

AL21..GL,SE

W/POWER STEERING

 1
51201-16030

AL2#

 1
51296 - BOLT, FRONT SUSPENSION MEMBER MOUNTING
51296-22020

AL2#

 4
51328 - SUPPORT, FRONT SUSPENSION MEMBER, RH
51328-16010

AL2#

 1
51329 - SUPPORT, FRONT SUSPENSION MEMBER, LH
51329-16010

AL2#

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-16020

AL2#

 1
51441-16021

AL21;AL20..5DS;AL20..3DS..GL

 1
51961 - HOOK, NO.1
51963-16020

AL2#

 2
51961 - HOOK, NO.1
51963-16020

AL2#

 2
Common parts
90119-06181
90119-10026
90119-10243
90170-12021
90201-12020
90467-06018
91622-61020
91661-40820
