AL21-KHHSS (1984)

Toyota Corolla 2

Production Aug 1984 - Apr 1986
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8408- )

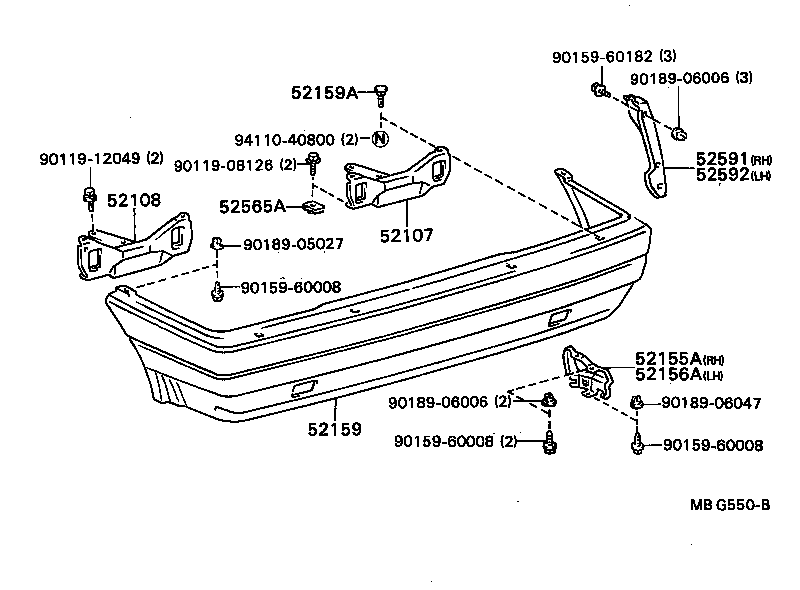

Click highlighted areas on diagram

diagram 52107 52108 52155A 52156A 52159 52159A 52565A 52591 52592 9011908126 9011912049 9015960008 9015960008 9015960008 9015960182 9018905027 9018906006 9018906006 9018906047 9411040800
Part # Description Qty Price
52107 - STAY SUB-ASSY, REAR BUMPER, RH
52015-16050

AL2#

 1
52015-16130

AL2#

 1
52108 - STAY SUB-ASSY, REAR BUMPER, LH
52016-16050

AL2#

 1
52016-16120

AL2#

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-16020

AL2#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-16020

AL2#

 1
52159 - COVER, REAR BUMPER
52159-16160

AL2#

BLACK

 1
52159-1603003

AL2#

DARK GRAY,GRAY

 1
52159A - BOLT(FOR REAR BUMPER COVER)
90112-0803201

AL2#

BLACK,BLACK

 4
90112-0803213

AL2#

DARK GRAY,GRAY

 4
52565A - RETAINER, REAR BUMPER, LOWER
52565-16020

AL2#

 4
52591 - SEAL, REAR BUMPER SIDE, RH
52591-16040

AL2#

 1
52592 - SEAL, REAR BUMPER SIDE, LH
52592-16030

AL2#

 1
Common parts
90119-08126
90119-12049
90159-60008
90159-60182
90189-05027
90189-06006
90189-06047
94110-40800
