AL21-KHHNS (1982)
Toyota Corolla 2
Production
May 1982
-
Aug 1984
Engine
3AU
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8205- )

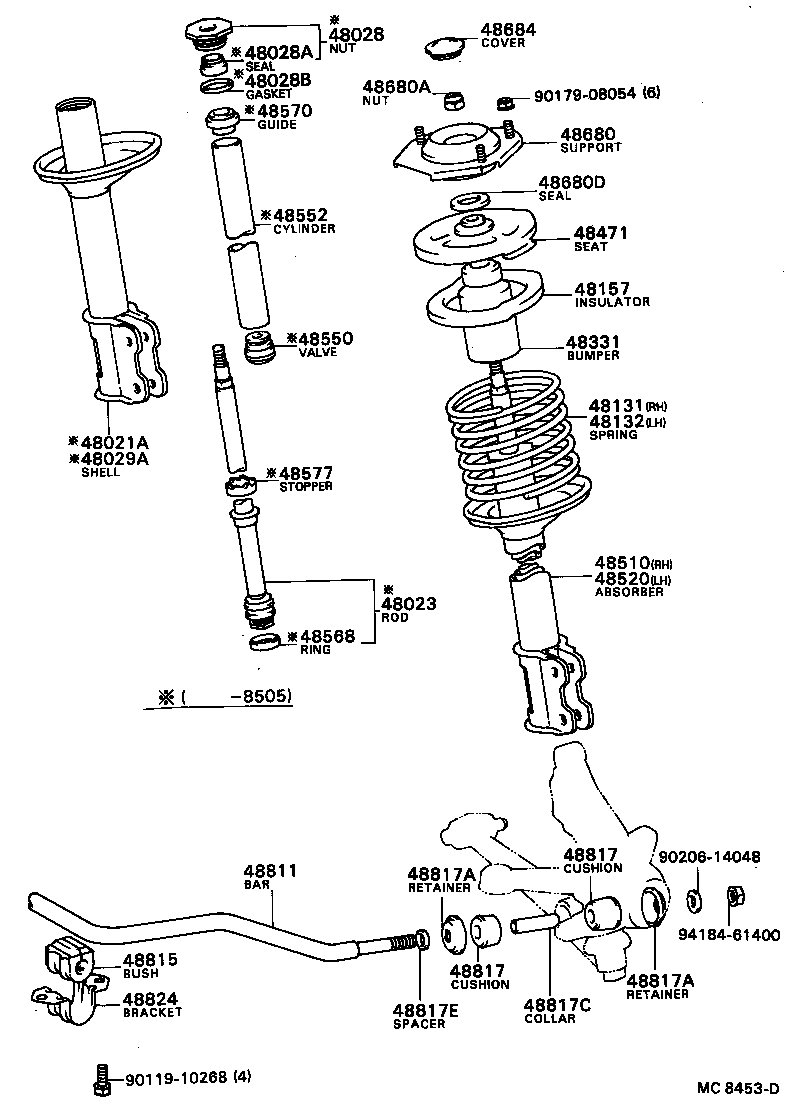

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48021A - SHELL SUB-ASSY, FRONT SHOCK ABSORBER, RH | ||||
| 48021-16030 |
AL2# |
1 | ||
| 48023 - ROD SUB-ASSY, SHOCK ABSORBER PISTON (FOR FRONT) | ||||
| 48023-16030 |
AL2#..CTD,DLX,GL,SE |
2 | ||
| 48028 - NUT SUB-ASSY, SHOCK ABSORBER RING | ||||
| 48028-10020 |
AL2# |
2 | ||
| 48028A - SEAL, OIL(FOR SHOCK ABSORBER RING NUT) | ||||
| 90316-20006 |
AL2# |
2 | ||
| 48028B - GASKET(FOR SHOCK ABSORBER RING NUT) | ||||
| 90430-36002 |
AL2# |
2 | ||
| 48029A - SHELL SUB-ASSY, FRONT SHOCK ABSORBER, LH | ||||
| 48021-16030 |
AL2# |
1 | ||
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-16150 |
AL2#..CTD,DLX,GL,SE |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-16150 |
AL2#..CTD,DLX,GL,SE |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-16020 |
AL2# |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-16030 |
AL2# |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-16020 |
AL2# |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-16040 |
AL2#..CTD,DLX,GL,SE |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-16040 |
AL2#..CTD,DLX,GL,SE |
1 | ||
| 48550 - VALVE ASSY, SHOCK ABSORBER BASE | ||||
| 48550-16010 |
AL2#..CTD,DLX,GL,SE |
2 | ||
| 48550-12019 |
AL2# |
2 | ||
| 48552 - CYLINDER, SHOCK ABSORBER(FOR FRONT) | ||||
| 48552-16030 |
AL2# |
2 | ||
| 48568 - RING, SHOCK ABSORBER PISTON | ||||
| 48568-12020 |
AL2# |
2 | ||
| 48570 - GUIDE ASSY, SHOCK ABSORBER ROD | ||||
| 48022-10020 |
AL2# |
2 | ||
| 48577 - STOPPER, SHOCK ABSORBER REBOUND | ||||
| 48577-10010 |
AL2# |
2 | ||
| 48680 - SUPPORT ASSY, FRONT SUSPENSION | ||||
| 48609-16040 |
AL2# |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AL2# |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AL2# |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-32010 |
AL2# |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-16090 |
AL2# |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-16090 |
AL2# |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48674-16030 |
AL2# FR |
2 | ||
| 48675-16040 |
AL2# RR |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48674-16030 |
AL2# FR |
2 | ||
| 48675-16040 |
AL2# RR |
2 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02056 |
AL2# |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02056 |
AL2# |
4 | ||
| 48817C - COLLAR(FOR STABILIZER BAR) | ||||
| 90387-14007 |
AL2# |
2 | ||
| 48817E - SPACER(FOR STABILIZER BAR) | ||||
| 90560-14005 |
AL2# |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-16020 |
AL2# |
2 | ||
| Common parts | ||||
| 90119-10268 | ||||
| 90179-08054 | ||||
| 90206-14048 | ||||
| 94184-61400 | ||||
