AL21-KHHES (1982)

Toyota Corolla 2

Production May 1982 - Aug 1984
Engine 3AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

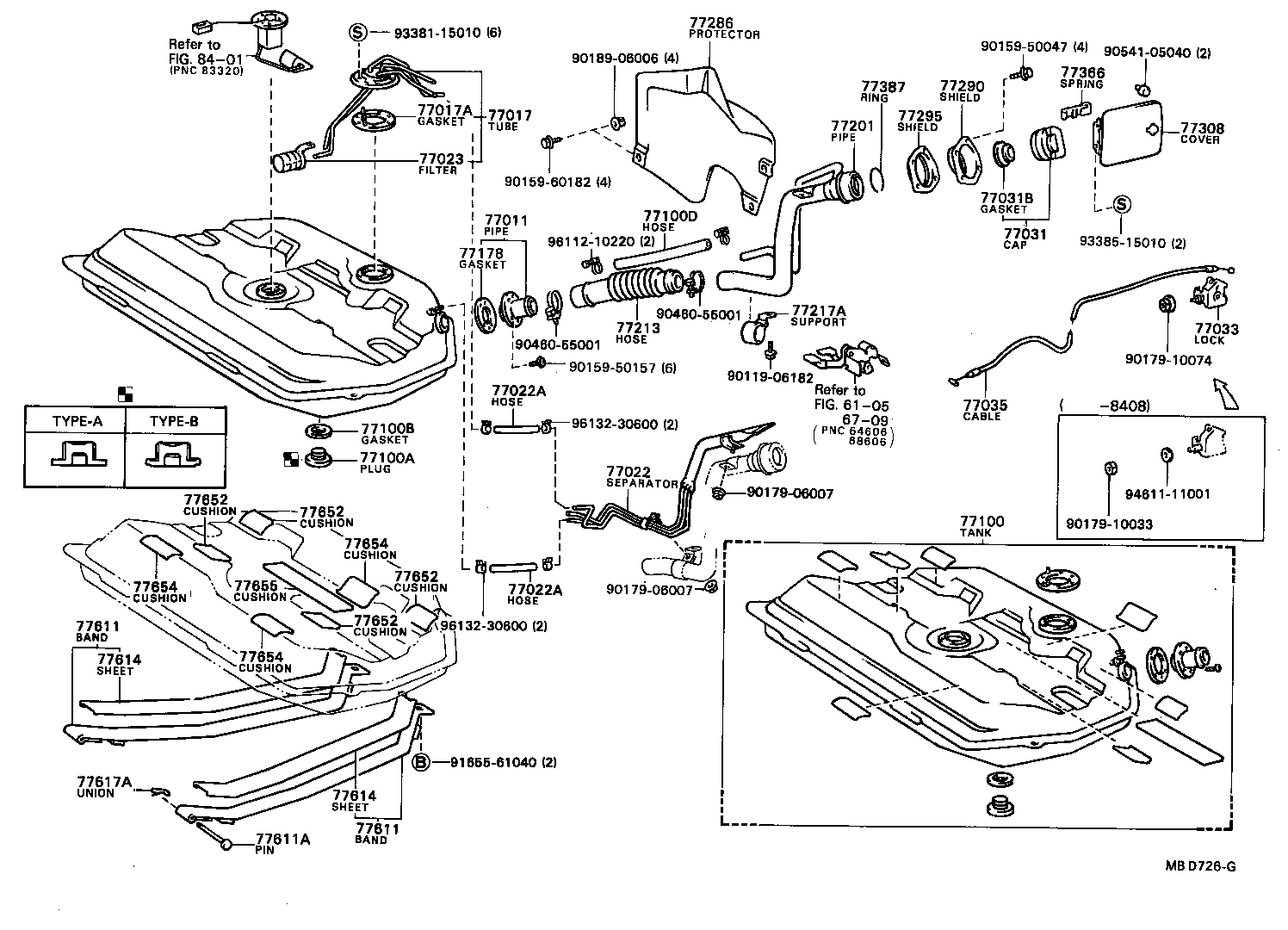

ILLUST NO. 1 OF 2(8205- )

Click highlighted areas on diagram

diagram 6105 6709 77011 77017 77017A 77022 77022A 77022A 77023 77031 77031B 77033 77035 77100 77100A 77100B 77100D 77178 77201 77213 77217A 77286 77290 77295 77308 77366 77387 77611 77611 77611A 77614 77614 77617A 77652 77652 77652 77652 77654 77654 77654 77655 8401 9011906182 9015950047 9015950157 9015960182 9017906007 9017906007 9017910033 9017910074 9018906006 9046055001 9046055001 9054105040 9165561040 9338115010 9338515010 9461111001 9611210220 9613230600 9613230600
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-32010

AL2#

 1
77017 - TUBE SUB-ASSY, FUEL AND EVAPORATION VENT
77017-16030

AL2#

 1
77017A - GASKET, FUEL TANK VENT
77178-10010

AL2#

 1
77022 - SEPARATOR SUB-ASSY, FUEL EVAPORATIVE
77022-16010

AL2#

 1
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020

AL2#

*H,L=130

 2
77022A - HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR)
95332-06020

AL2#

*H,L=130

 2
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-12050

AL2#

 1
77031 - CAP ASSY, FUEL TANK
77310-12100

AL2#

 1
77031B - GASKET (FOR FUEL TANK CAP)
77316-12050

AL2#

 1
77033 - LOCK SUB-ASSY, FUEL TANK CAP
77037-24010

AL2#..DLX,GL,SE,SR

 1
77037-14010

AL2#..DLX,GL,SE,SR

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-16010

AL2#..DLX,GL,SE,SR

 1
77100 - TANK ASSY, FUEL
77001-19145

AL2#

 1
77100A - PLUG(FOR FUEL TANK)
90341-20003

AL2#

TYPE A

 1
90341-20004

AL2#

TYPE B

 1
77100B - GASKET(FOR FUEL TANK)
90430-20006

AL2#

TYPE A

 1
90430-20007

AL2#

TYPE B

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77259-16010

AL2#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020

AL2#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-16030

AL2#

 1
77213 - HOSE, FUEL TANK SUB INLET
77213-16030

AL2#

 1
77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2
77217-16010

AL2#

 1
77286 - PROTECTOR, FUEL TANK INLET PIPE
77277-16030

AL2#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-16010

AL2#

 1
77295 - SHIELD, FUEL FILLER PIPE
77293-16010

AL2#

 1
77308 - COVER SUB-ASSY, FUEL INLET BOX
77350-16050

AL2#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-24010

AL2#

 1
77387 - RING, FUEL INLET BOX
77391-14020

AL2#

 1
77611 - BAND, FUEL TANK
77601-16020

AL2#

RH

 1
77602-16020

AL2#

LH

 1
77611 - BAND, FUEL TANK
77601-16020

AL2#

RH

 1
77602-16020

AL2#

LH

 1
77611A - PIN (FOR FUEL TANK BAND)
90240-08020

AL2#

 2
77614 - SEAT, FUEL TANK BAND
77681-16020

AL2#

 2
77614 - SEAT, FUEL TANK BAND
77681-16020

AL2#

 2
77617A - UNION, AUXILIARY FUEL BAND
77617-12010

AL2#

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-16020

AL2#

60 X 60

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-16020

AL2#

60 X 60

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-16020

AL2#

60 X 60

 2
77652 - CUSHION, FUEL TANK, NO.1
77651-16020

AL2#

60 X 60

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-16050

AL2#

60 X 80

 3
77654-16010

AL2#

80 X 80

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-16050

AL2#

60 X 80

 3
77654-16010

AL2#

80 X 80

 2
77654 - CUSHION, FUEL TANK, NO.2
77652-16050

AL2#

60 X 80

 3
77654-16010

AL2#

80 X 80

 2
77655 - CUSHION, FUEL TANK, NO.3
77653-16020

AL2#

60 X 220

 1
Common parts
90119-06182
90159-50047
90159-50157
90159-60182
90179-06007
90179-10033
90179-10074
90189-06006
90460-55001
90541-05040
91655-61040
93381-15010
93385-15010
94611-11001
96112-10220
96132-30600
Linked diagrams
6105
6709
8401

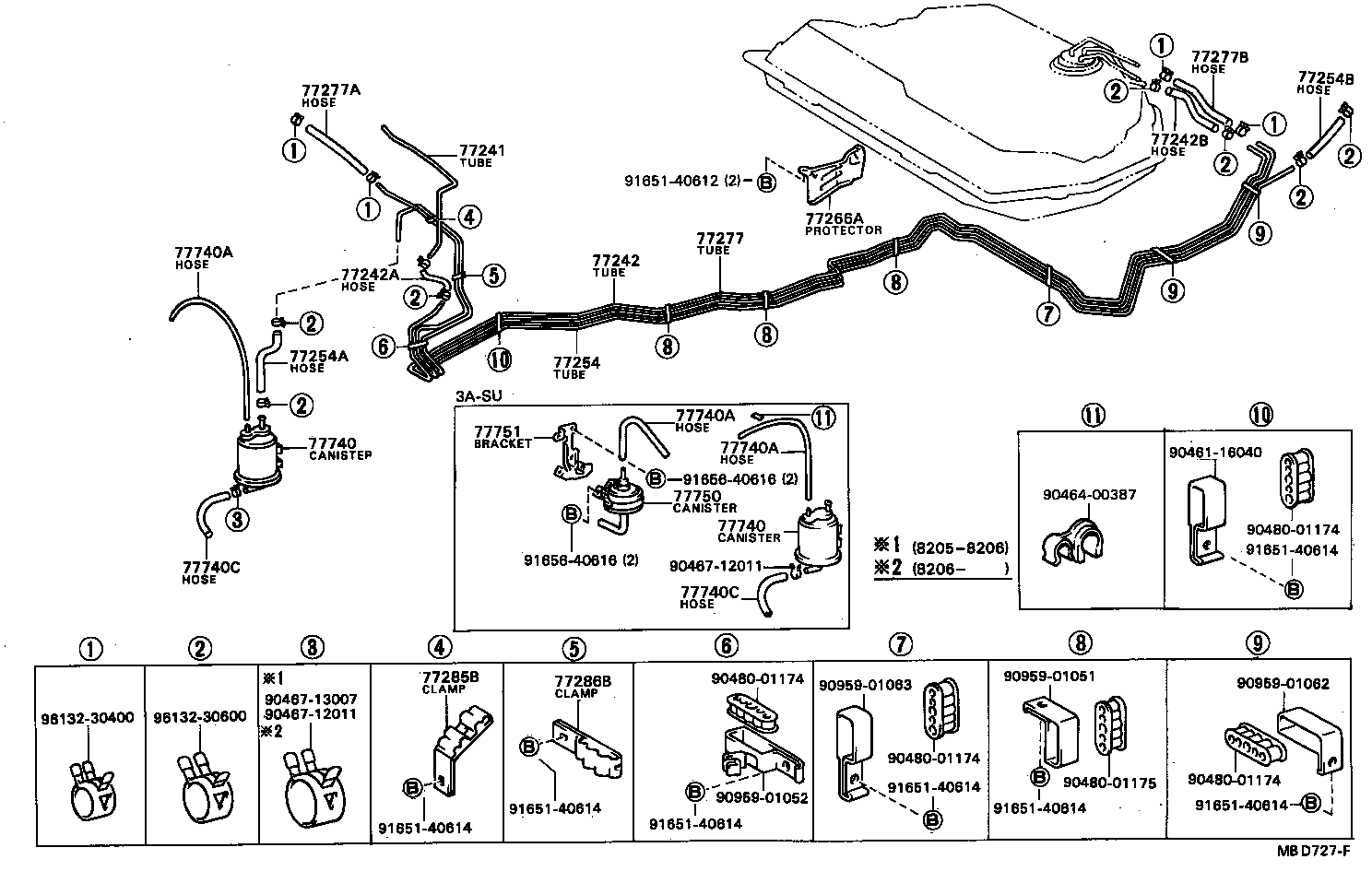

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

diagram 77241 77242 77242A 77242B 77254 77254A 77254B 77266A 77277 77277A 77277B 77285B 77286B 77740 77740 77740A 77740A 77740A 77740C 77740C 77750 77751 9046116040 9046400387 9046712011 9046712011 9046713007 9048001174 9048001174 9048001174 9048001174 9048001175 9095901051 9095901052 9095901062 9095901063 9165140612 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165140614 9165640616 9165640616 9613230400 9613230600
Part # Description Qty Price
77241 - TUBE, FUEL MAIN, NO.1
77252-16040

AL2#

 1
77242 - TUBE, FUEL MAIN, NO.2
77251-16030

AL2#

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-06020

AL2#

*H,L=200

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95332-06020

AL2#

*H,L=130

 1
77254 - TUBE, FUEL EMISSION, NO.1
77261-16030

AL2#

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06020

AL2#

*H,L=140

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
95332-06020

AL2#

*H,L=120

 1
77277 - TUBE, FUEL RETURN, NO.1
77255-16030

AL2#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95332-04040

AL2#

*H,L=380

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-04020

AL2#

*H,L=160

 1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-16030

AL2#

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-16030

AL2#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-60050

AL2#

 1
77740 - CANISTER ASSY, CHARCOAL
77704-60050

AL2#

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AL2#

*H,L=240,ﾏｰｸ=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AL2#

*H,L=240,ﾏｰｸ=#*

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-19930

AL2#

*H,L=240,ﾏｰｸ=#*

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95332-08030

AL2#

*H,L=220,内径=7.6

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95332-08030

AL2#

*H,L=220,内径=7.6

 1
Common parts
90461-16040
90464-00387
90467-12011
90467-13007
90480-01174
90480-01175
90959-01051
90959-01052
90959-01062
90959-01063
91651-40612
91651-40614
91656-40616
96132-30400
96132-30600
