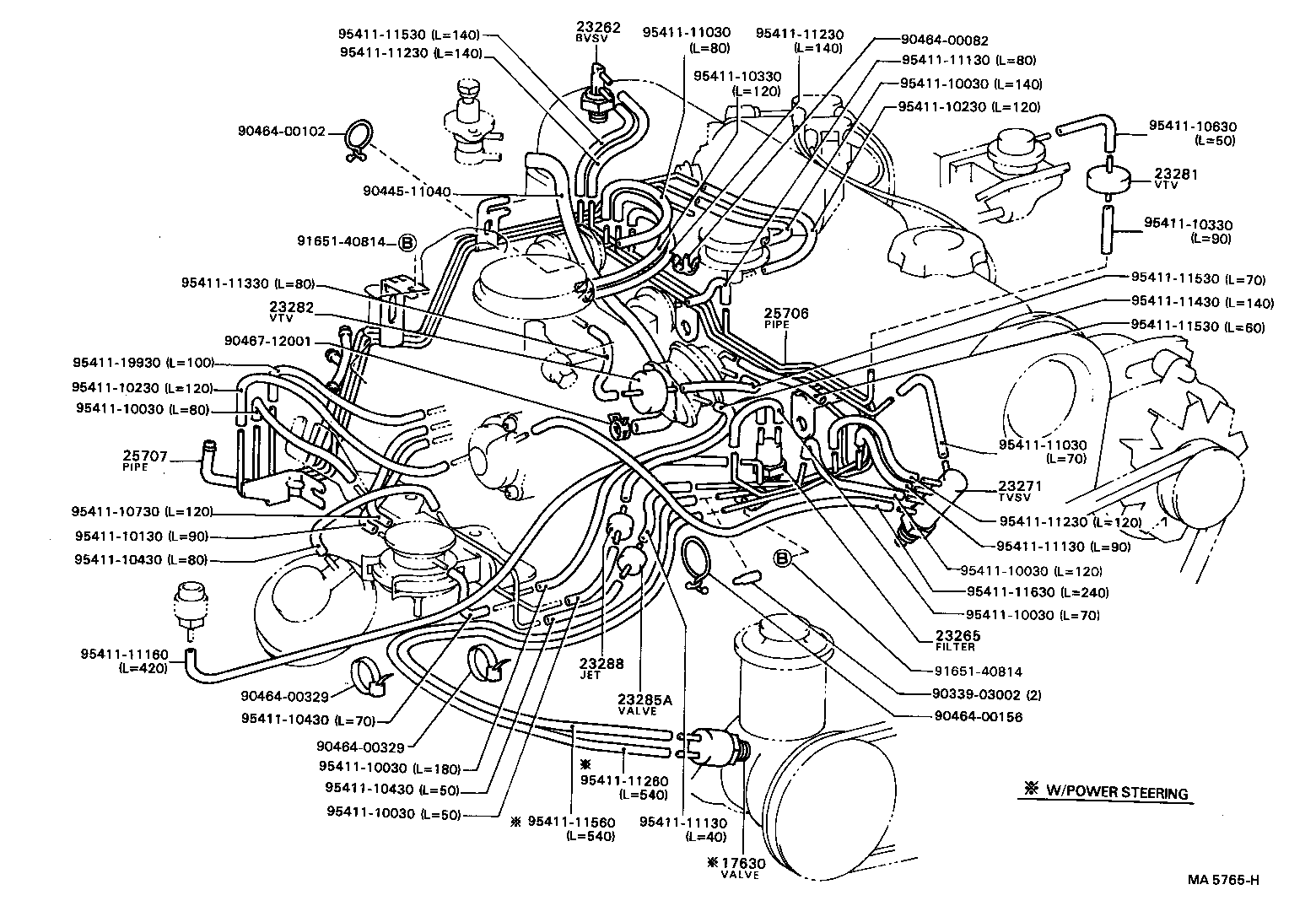

Toyota Corolla 2 AL21 VACUUM PIPING

Part #	Description	Period	Qty
17630 - VALVE ASSY, AIR CONTROL
17630-15021	2AU,3AU..AL2#..GL,SE W/PS	09/1983 - 08/1984	1
17630-15020	2AU,3AU..AL2#..GL,SE W/PS	01/1983 - 09/1983	1
17630-15020	3AU..AL21..GL,SE W/PS	09/1982 - 01/1983	1
17630-15010	3AU..AL21..GL,SE W/PS	05/1982 - 09/1982	1
23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1
90925-05052	2AU,3AU..AL2#	05/1982 - 08/1982	1
90925-05069	2AU,3AU..AL2#	08/1982 - 08/1984	1
23265 - FILTER, GAS, NO.1
90917-11023	2AU,3A#..AL2#	05/1982 - 08/1984	1
23271 - VALVE, THERMOSTATIC VACUUM SWITCHING, NO.1
90925-02076	2AU,3AU..AL2#	05/1982 - 08/1984	1
23281 - VALVE, VACUUM TRANSMITTING, NO.1
90925-01084	2AU,3A#..AL2#	05/1982 - 03/1983	1
90925-01095	2AU,3A#..AL2#	03/1983 - 08/1984	1
23282 - VALVE, VACUUM TRANSMITTING, NO.2
90925-01095	2AU,3AU..AL2#..3FC	03/1983 - 08/1984	1
90925-01091	2AU,3AU..AL2#	05/1982 - 03/1983	1
23285A - VALVE, CHECK, NO.1
90917-10049	2AU,3A#..AL2#	05/1982 - 04/1986	1
23288 - JET, NO.1
90925-04013	2AU,3AU..AL2#	05/1982 - 04/1986	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-15120	2AU,3AU..AL2#	05/1982 - 08/1984	1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-15101	2AU,3AU..AL2#	11/1982 - 08/1984	1
25707-15100	2AU,3AU..AL2#	05/1982 - 11/1982	1
Common parts
90339-03002
90445-11040
90464-00082
90464-00102
90464-00156
90464-00329
90467-12001
91651-40814
95411-10030
95411-10130
95411-10230
95411-10330
95411-10430
95411-10630
95411-10730
95411-11030
95411-11130
95411-11160
95411-11230
95411-11260
95411-11330
95411-11430
95411-11530
95411-11560
95411-11630
95411-19930

AL21-KHHES (1982)
