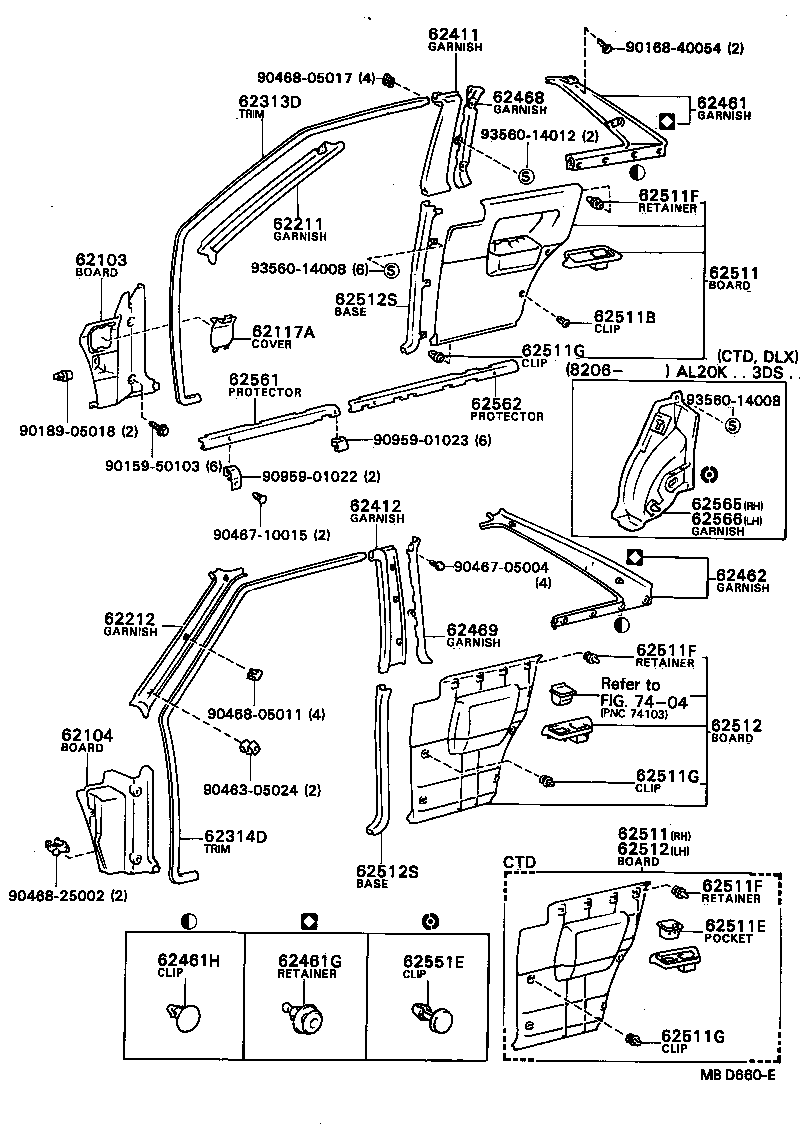

AL21-KGMSH (1982)
Toyota Corolla 2
(8205- )3DS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62103 - BOARD SUB-ASSY, COWL SIDE TRIM, RH | ||||
| 62101-1604002 |
AL2#..DLX,GL,SE,SR DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62101-1604006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 62101-1604003 |
AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
1 | ||
| 62104 - BOARD SUB-ASSY, COWL SIDE TRIM, LH | ||||
| 62102-1604003 |
AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
1 | ||
| 62102-1604002 |
AL2#..DLX,GL,SE,SR DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62102-1604006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 62117A - COVER, COWL SIDE TRIM SERVICE HOLE | ||||
| 55545-1606002 |
AL2#..DLX,GL,SE,SR DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 55545-1606003 |
AL2#..DLX,GL,SE,SR GRAY,GRAY,TRIM1# |
1 | ||
| 55545-1606006 |
AL2# BROWN,BROWN,TRIM4# |
1 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-16020 |
AL2# IVORY |
1 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-16020 |
AL2# IVORY |
1 | ||
| 62313D - TRIM, FRONT DOOR OPENING, RH | ||||
| 62313-1603002 |
AL2#..3DS..(DLX,GL,SE,SR) DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62313-1603006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1603003 |
AL2#..3DS..(DLX,GL,SE,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62314D - TRIM, FRONT DOOR OPENING, LH | ||||
| 62313-1603002 |
AL2#..3DS..(DLX,GL,SE,SR) DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62313-1603006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62313-1603003 |
AL2#..3DS..(DLX,GL,SE,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62411-1605003 |
AL2#..3DS GRAY,GRAY,TRIM1# |
1 | ||
| 62411-1605002 |
AL2#..3DS DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62411-1605006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62412-1605002 |
AL2#..3DS DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62412-1605003 |
AL2#..3DS GRAY,GRAY,TRIM1# |
1 | ||
| 62412-1605006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62461 - GARNISH, ROOF SIDE TRIM, RH | ||||
| 62471-16070 |
AL2#..3DS IVORY |
1 | ||
| 62461G - RETAINER, DOOR TRIM | ||||
| 67771-12020 |
AL2#..3DS |
4 | ||
| 62461H - CLIP (FOR ROOF SIDE INNER GARNISH) | ||||
| 90467-0501608 |
AL2# IVORY,IVORY |
6 | ||
| 62462 - GARNISH, ROOF SIDE TRIM, LH | ||||
| 62472-16070 |
AL2#..3DS IVORY |
1 | ||
| 62468 - GARNISH, CENTER PILLAR, REAR RH | ||||
| 62468-1601002 |
AL2#..3DS DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62468-1601006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62468-1601003 |
AL2#..3DS GRAY,GRAY,TRIM1# |
1 | ||
| 62469 - GARNISH, CENTER PILLAR, REAR LH | ||||
| 62469-1601003 |
AL2#..3DS GRAY,GRAY,TRIM1# |
1 | ||
| 62469-1601002 |
AL2#..3DS DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62469-1601006 |
AL2#..3DS BROWN,BROWN,TRIM4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1634002 |
AL21..3DS..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62510-1634006 |
AL21..3DS..SE BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1635002 |
AL2#..3DS..(DLX,GL,SR) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62510-1634003 |
AL21..3DS..SE GRAY,GRAY,TRIM1# |
1 | ||
| 62510-1635003 |
AL2#..3DS..(DLX,GL,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62510-1635006 |
AL2#..3DS..(CTD,DLX,GL,SR) BROWN,BROWN,TRIM4# |
1 | ||
| 62511 - BOARD, QUARTER INSIDE TRIM, RH | ||||
| 62510-1634002 |
AL21..3DS..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62510-1634006 |
AL21..3DS..SE BROWN,BROWN,TRIM4# |
1 | ||
| 62510-1635002 |
AL2#..3DS..(DLX,GL,SR) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62510-1634003 |
AL21..3DS..SE GRAY,GRAY,TRIM1# |
1 | ||
| 62510-1635003 |
AL2#..3DS..(DLX,GL,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62510-1635006 |
AL2#..3DS..(CTD,DLX,GL,SR) BROWN,BROWN,TRIM4# |
1 | ||
| 62511B - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-0601726 |
AL2#..3DS BROWN,BROWN,TRIM4# |
4 | ||
| 90467-0601702 |
AL2#..3DS DARK WINE,DARK WINE,TRIM3# |
4 | ||
| 90467-0601713 |
AL2#..3DS GRAY,GRAY,TRIM1# |
4 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL2#..3DS |
8 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL2#..3DS |
8 | ||
| 62511F - RETAINER (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 67771-12020 |
AL2#..3DS |
8 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL2#..3DS |
4 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL2#..3DS |
4 | ||
| 62511G - CLIP (FOR QUARTER INSIDE TRIM BOARD) | ||||
| 90467-10019 |
AL2#..3DS |
4 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1628003 |
AL2#..3DS..(DLX,GL,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62520-1628006 |
AL2#..3DS..(DLX,GL,SR) BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1629002 |
AL21..3DS..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62520-1628002 |
AL2#..3DS..(DLX,GL,SR) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62520-1629003 |
AL21..3DS..SE GRAY,GRAY,TRIM1# |
1 | ||
| 62520-1629006 |
AL21..3DS..SE BROWN,BROWN,TRIM4# |
1 | ||
| 62512 - BOARD, QUARTER INSIDE TRIM, LH | ||||
| 62520-1628003 |
AL2#..3DS..(DLX,GL,SR) GRAY,GRAY,TRIM1# |
1 | ||
| 62520-1628006 |
AL2#..3DS..(DLX,GL,SR) BROWN,BROWN,TRIM4# |
1 | ||
| 62520-1629002 |
AL21..3DS..SE DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62520-1628002 |
AL2#..3DS..(DLX,GL,SR) DARK WINE,RED/MAROON,TRIM3# |
1 | ||
| 62520-1629003 |
AL21..3DS..SE GRAY,GRAY,TRIM1# |
1 | ||
| 62520-1629006 |
AL21..3DS..SE BROWN,BROWN,TRIM4# |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1601002 |
AL2#..3DS..(DLX,GL,SE,SR) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62517-1601003 |
AL2#..3DS..(DLX,GL,SE,SR) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 62517-1601006 |
AL2#..3DS RH,BROWN,BROWN,TRIM4# |
1 | ||
| 62518-1601003 |
AL2#..3DS..(DLX,GL,SE,SR) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 62518-1601002 |
AL2#..3DS..(DLX,GL,SE,SR) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62518-1601006 |
AL2#..3DS LH,BROWN,BROWN,TRIM4# |
1 | ||
| 62512S - BASE, QUARTER TRIM, FRONT | ||||
| 62517-1601002 |
AL2#..3DS..(DLX,GL,SE,SR) RH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62517-1601003 |
AL2#..3DS..(DLX,GL,SE,SR) RH,GRAY,GRAY,TRIM1# |
1 | ||
| 62517-1601006 |
AL2#..3DS RH,BROWN,BROWN,TRIM4# |
1 | ||
| 62518-1601003 |
AL2#..3DS..(DLX,GL,SE,SR) LH,GRAY,GRAY,TRIM1# |
1 | ||
| 62518-1601002 |
AL2#..3DS..(DLX,GL,SE,SR) LH,DARK WINE,DARK WINE,TRIM3# |
1 | ||
| 62518-1601006 |
AL2#..3DS LH,BROWN,BROWN,TRIM4# |
1 | ||
| 62561 - PROTECTOR, ROCKER PANEL, INNER FRONT | ||||
| 62561-16010 |
AL2# RH |
1 | ||
| 62562-16010 |
AL2# LH |
1 | ||
| 62562 - PROTECTOR, ROCKER PANEL, INNER REAR | ||||
| 62564-16010 |
AL2# LH |
1 | ||
| 62563-16010 |
AL2# RH |
1 | ||
| Common parts | ||||
| 90159-50103 | ||||
| 90168-40054 | ||||
| 90189-05018 | ||||
| 90463-05024 | ||||
| 90467-05004 | ||||
| 90467-10015 | ||||
| 90468-05011 | ||||
| 90468-05017 | ||||
| 90468-25002 | ||||
| 90959-01022 | ||||
| 90959-01023 | ||||
| 93560-14008 | ||||
| 93560-14012 | ||||
| Linked diagrams | ||||
| 7404 | ||||
