AL21-KGMES (1982)

Toyota Corolla 2

Production May 1982 - Aug 1984
Engine 3AU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8205- )

Click highlighted areas on diagram

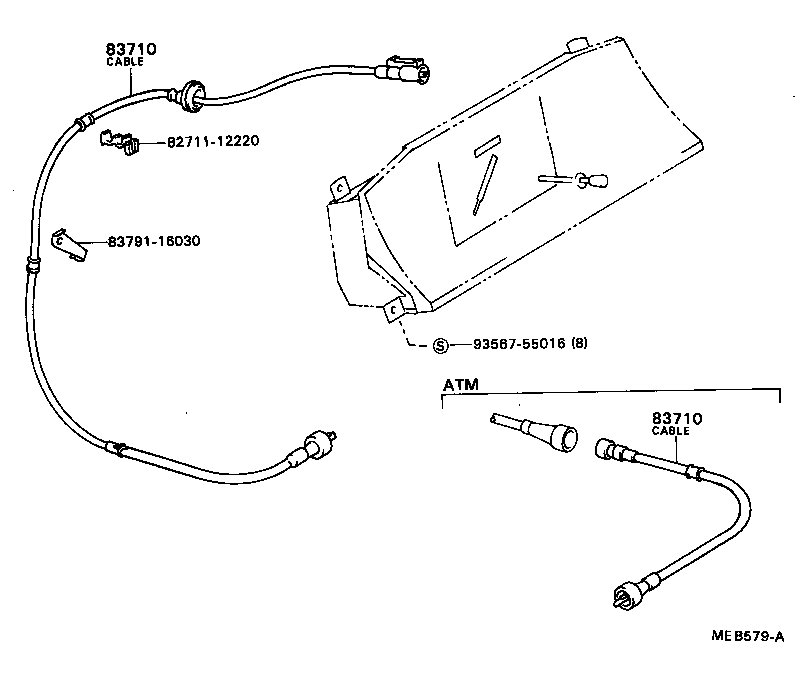

diagram 8271112220 83710 83710 8379116030 9356755016
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16060

AL2#..MTM

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-16060

AL2#..MTM

 1
Common parts
82711-12220
83791-16030
93567-55016

ILLUST NO. 1 OF 2(8205- )SE,SR

Click highlighted areas on diagram

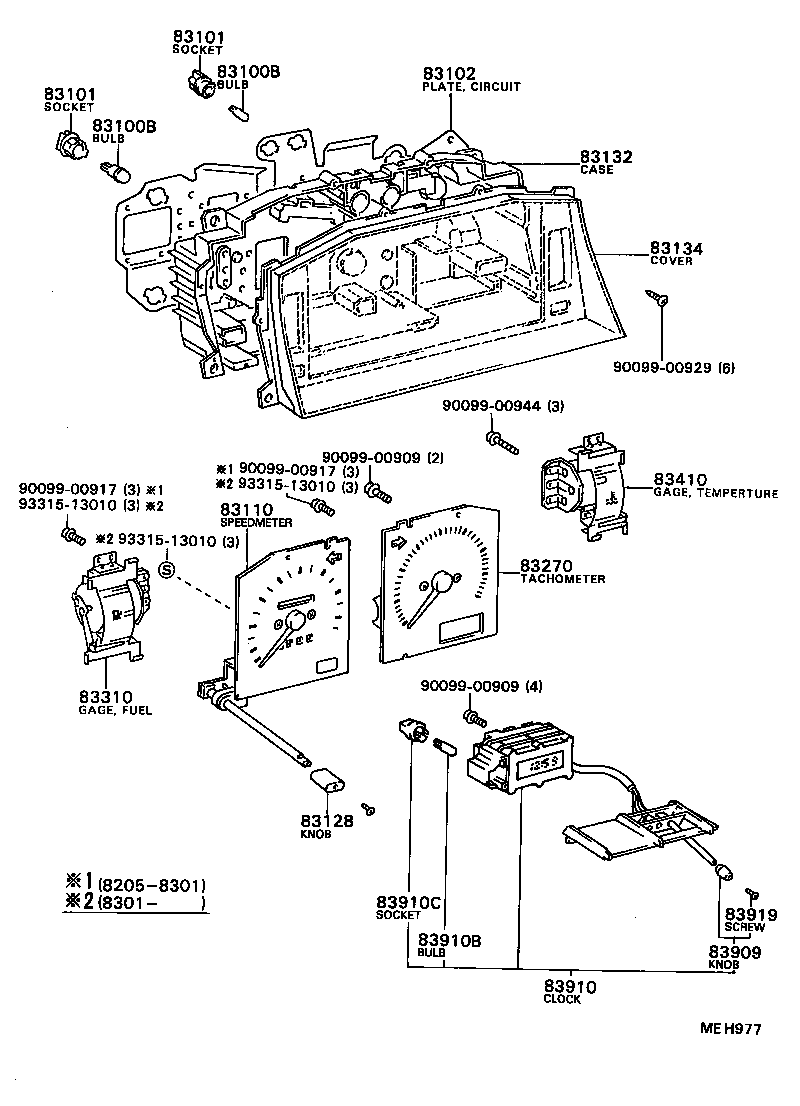

diagram 83100B 83100B 83101 83101 83102 83110 83128 83132 83134 83270 83310 83410 83909 83910 83910B 83910C 83919 9009900909 9009900909 9009900917 9009900917 9009900929 9009900944 9331513010 9331513010 9331513010
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AL2#

12V 3.4W,12V 3.4W

 7
83109-28010

AL21..SE

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 3
90981-11018

AL2#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 3
83100B - BULB, COMBINATION METER, NO.1
99132-12034

AL2#

12V 3.4W,12V 3.4W

 7
83109-28010

AL21..SE

12V 3.4W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ付き,12V 3.4W,W/GREEN CAP

 3
90981-11018

AL2#

12V 1.2W ｿｹｯﾄ無し,12V 1.4W

 3
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

AL2#

12V 1.4W

 3
83101-14030

AL21..DLX,SE,SR;AL20..4F..(CTD,DLX);AL2#..3FC..(DLX,GL)

12V 3.4W

 7
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-14040

AL2#

12V 1.4W

 3
83101-14030

AL21..DLX,SE,SR;AL20..4F..(CTD,DLX);AL2#..3FC..(DLX,GL)

12V 3.4W

 7
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-16570

AL21..5F..SE

 1
83110 - SPEEDOMETER ASSY
83110-16320

AL21..5F..SE

 1
83128 - KNOB, TRIP COUNTER
83128-16090

AL21..SE,SR

 1
83132 - CASE, COMBINATION METER
83132-16470

AL21..SE,SR

 1
83134 - COVER, COMBINATION METER, NO.1
83133-16450

AL21..SE,SR

 1
83133-16650

AL21..SE,SR

 1
83270 - TACHOMETER ASSY, ENGINE
83242-16130

AL21..SE

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-16350

AL21..SE

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-16270

AL21..SE

 1
83909 - KNOB, CLOCK
83909-16050

AL21..SE,SR

DIGITAL

 1
83910 - CLOCK ASSY
83910-16100

AL21..SE

DIGITAL

 1
83910-16101

AL21..SE

DIGITAL

 1
83919 - SCREW, CLOCK
83919-12230

AL21..SE,SR

DIGITAL

 1
Common parts
90099-00909
90099-00917
90099-00929
90099-00944
93315-13010
