AL20-KHKNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205-8408)

Click highlighted areas on diagram

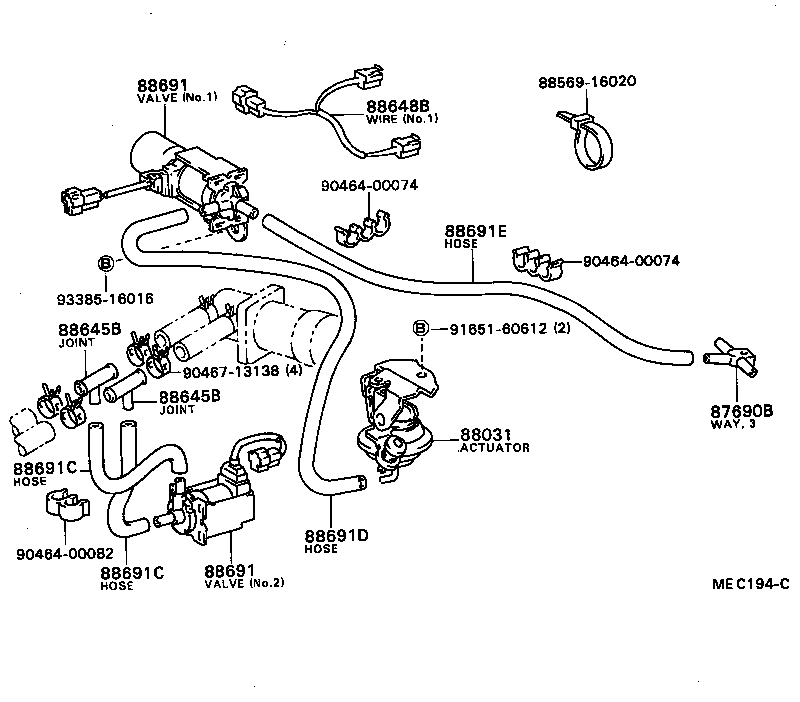

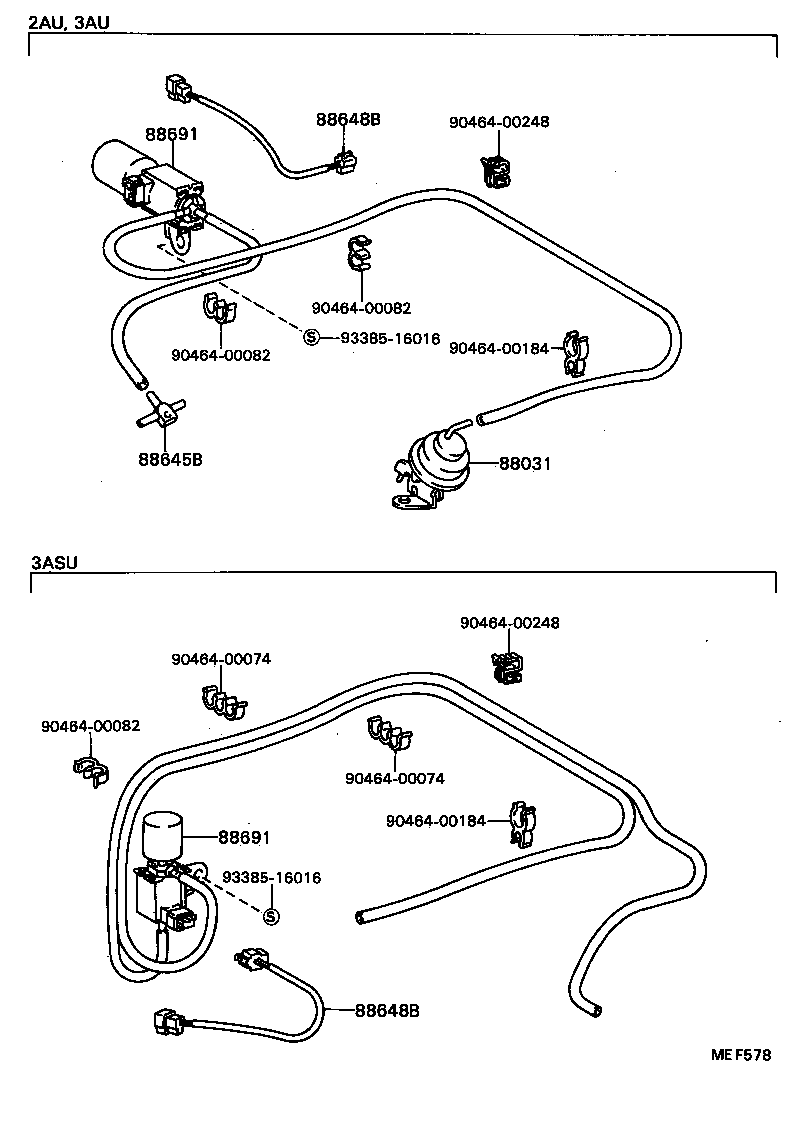

diagram 87690B 88031 8856916020 88645B 88645B 88648B 88691 88691 88691C 88691C 88691D 88691E 9046400074 9046400074 9046400082 9046713138 9165160612 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL2#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..CTD,DLX,GL,SE

 1
88031-16051

AL20

 1
88031-16050

AL20

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AL2#

 1
88894-16020

AL2#

 2
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AL2#

 1
88894-16020

AL2#

 2
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AL2#

*H,L=120,ﾏｰｸ=#*

 1
95411-10030

AL20

*H,L=120,ﾏｰｸ=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-19930

AL2#

*H,L=120,ﾏｰｸ=#*

 1
95411-10030

AL20

*H,L=120,ﾏｰｸ=#0

 1
88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2
95411-19960

AL2#..CTD,DLX,GL,SE

*H,L=450,ﾏｰｸ=#*

 1
88691E - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3
95411-10060

AL2#..CTD,DLX,GL,SE

*H,L=510,ﾏｰｸ=#0

 1
Common parts
88569-16020
90464-00074
90464-00082
90467-13138
91651-60612
93385-16016

(8205-8408)

Click highlighted areas on diagram

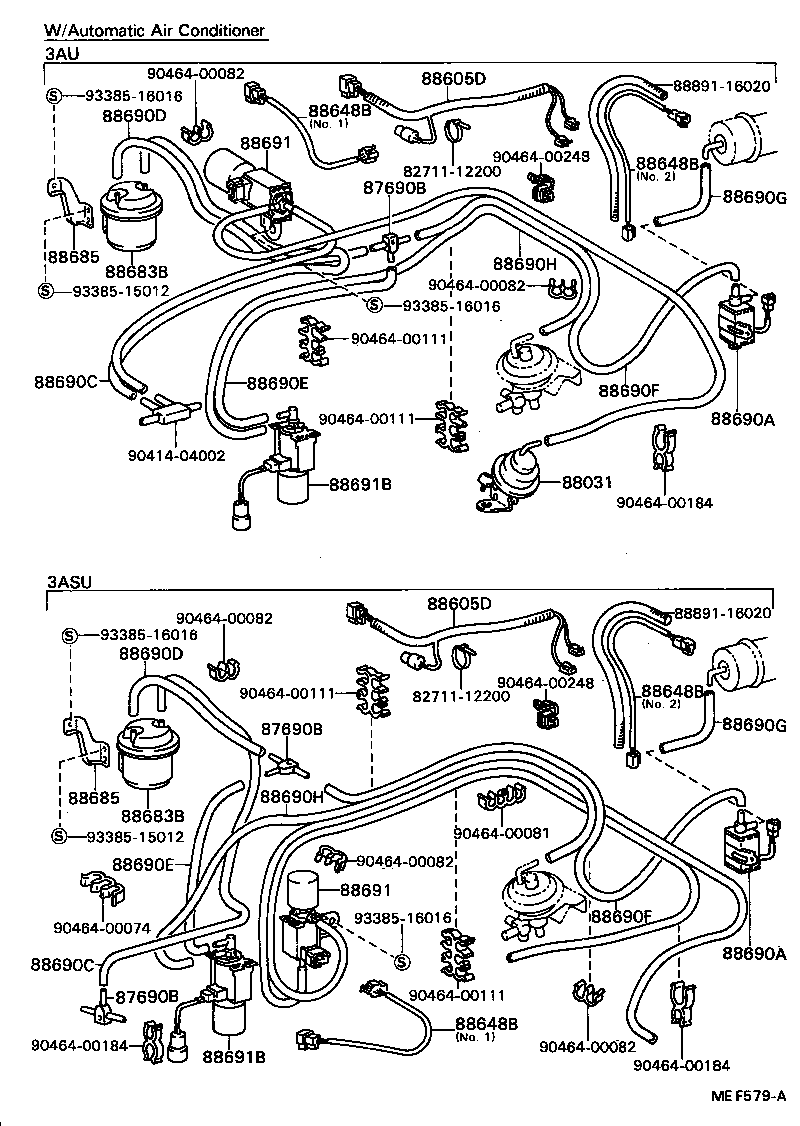

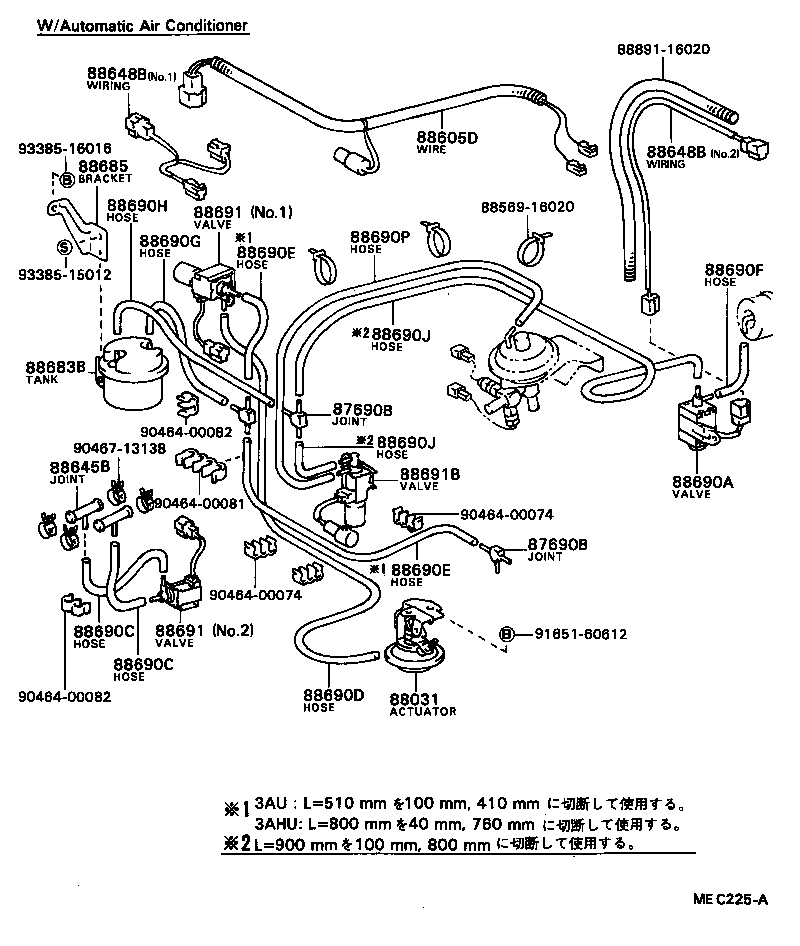

diagram 87690B 87690B 88031 8856916020 88605D 88645B 88648B 88648B 88683B 88685 88690A 88690C 88690C 88690D 88690E 88690E 88690F 88690G 88690H 88690J 88690J 88690P 88691 88691 88691B 8889116020 9046400074 9046400074 9046400081 9046400082 9046400082 9046713138 9165160612 9338515012 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL2#

 1
87690B - WAY, 3
90413-04005

AL2#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..CTD,DLX,GL,SE

 1
88031-16051

AL20

 1
88031-16050

AL20

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AL2#

 1
88894-16020

AL2#

 2
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
Common parts
88569-16020
88891-16020
90464-00074
90464-00081
90464-00082
90467-13138
91651-60612
93385-15012
93385-16016

(8408- )

Click highlighted areas on diagram

diagram 88031 88645B 88648B 88648B 88691 88691 9046400074 9046400074 9046400082 9046400082 9046400082 9046400184 9046400184 9046400248 9046400248 9338516016 9338516016
Part # Description Qty Price
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..CTD,DLX,GL,SE

 1
88031-16051

AL20

 1
88031-16050

AL20

 1
88645B - JOINT, NO.1 (FOR IDLE UP DIVICE)
90413-04005

AL2#

 1
88894-16020

AL2#

 2
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
Common parts
90464-00074
90464-00082
90464-00184
90464-00248
93385-16016

(8408- )

Click highlighted areas on diagram

diagram 8271112200 8271112200 87690B 87690B 87690B 88031 88605D 88605D 88648B 88648B 88648B 88648B 88683B 88683B 88685 88685 88690A 88690A 88690C 88690C 88690D 88690D 88690E 88690E 88690F 88690F 88690G 88690G 88690H 88690H 88691 88691 88691B 88691B 8889116020 8889116020 9041404002 9046400074 9046400081 9046400082 9046400082 9046400082 9046400082 9046400082 9046400111 9046400111 9046400111 9046400111 9046400184 9046400184 9046400184 9046400248 9046400248 9338515012 9338515012 9338516016 9338516016 9338516016 9338516016
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AL2#

 1
87690B - WAY, 3
90413-04005

AL2#

 1
87690B - WAY, 3
90413-04005

AL2#

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AL2#..CTD,DLX,GL,SE

 1
88031-16051

AL20

 1
88031-16050

AL20

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88648B - WIRING, COOLER, NO.1
88648-16110

AL2#

NO.1

 1
88648-16090

AL2#

NO.1

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-12040

AL2#..CTD,DLX,GL,SE

NO.2

 1
88691-87101

AL2#

NO.1

 1
88690-16100

AL2#..3FC,4F

 1
Common parts
82711-12200
88891-16020
90414-04002
90464-00074
90464-00081
90464-00082
90464-00111
90464-00184
90464-00248
93385-15012
93385-16016
