AL20-KHKNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

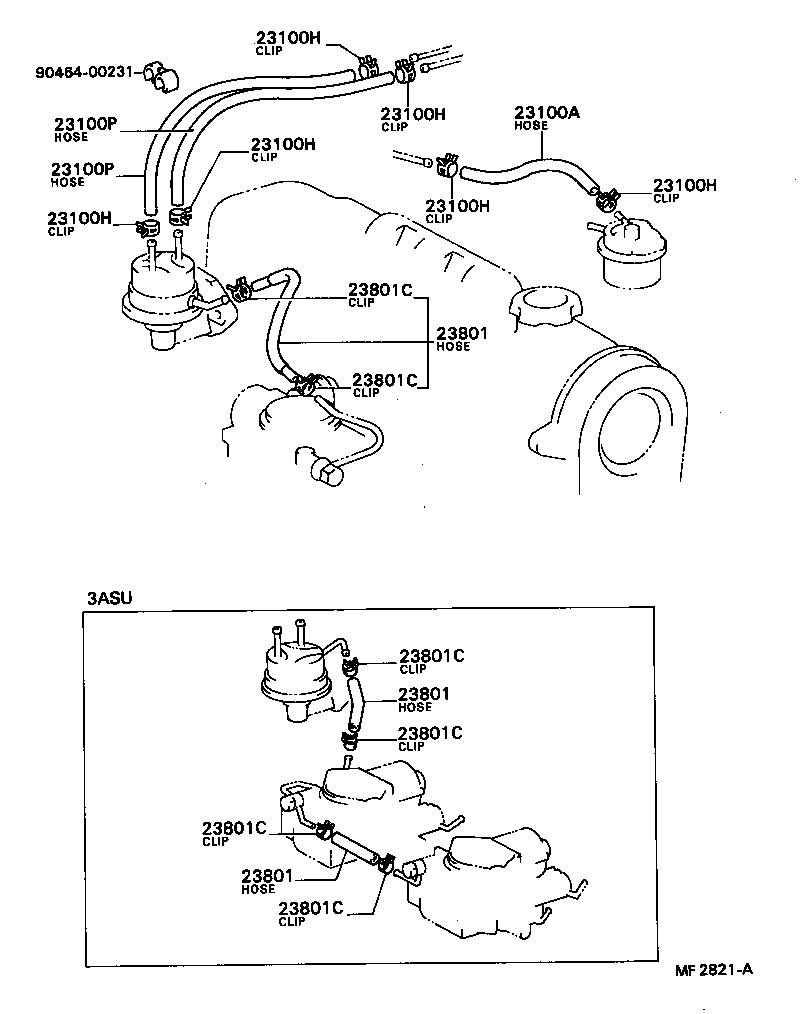

Click highlighted areas on diagram

diagram 23100A 23100H 23100H 23100H 23100H 23100H 23100H 23100P 23100P 23801 23801 23801 23801C 23801C 23801C 23801C 23801C 23801C 9046400231
Part # Description Qty Price
23100A - HOSE, FUEL
95332-06020

2AU,3A#..AL2#

*H,L=140

 1
95332-06020

2AU,3A#..AL2#

*H,L=150

 1
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100H - CLIP(FOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

MAIN

 4
96132-30400

2AU,3A#..AL2#

RETURN

 2
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
95332-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
23100P - HOSE(FOR FUEL PUMP TO FUEL TUBE)
95332-04040

2AU,3A#..AL2#

*H,L=360,RETURN

 1
95332-06040

2AU,3A#..AL2#

*H,L=360,MAIN

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15030

2AU,3AU..AL2#

 1
23271-15010

2AU,3AU..AL2#

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15030

2AU,3AU..AL2#

 1
23271-15010

2AU,3AU..AL2#

 1
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23271-15030

2AU,3AU..AL2#

 1
23271-15010

2AU,3AU..AL2#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
96132-30600

2AU,3A#..AL2#

 4
Common parts
90464-00231
