AL20-KHKDS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

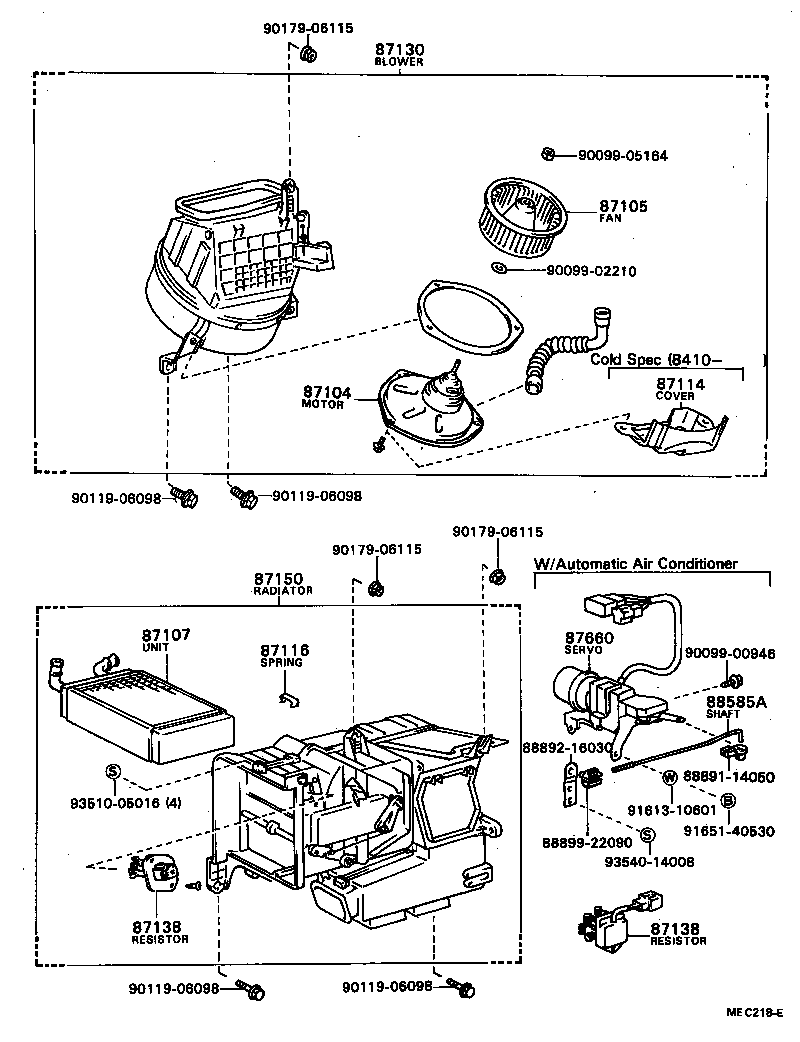

Click highlighted areas on diagram

diagram 87104 87105 87107 87114 87116 87130 87138 87138 87150 87660 88585A 8889114050 8889216030 8889922090 9009900946 9009902210 9009905164 9011906098 9011906098 9011906098 9011906098 9017906115 9017906115 9017906115 9161310601 9165140530 9351005016 9354014008
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-16100

AL2#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

AL2#

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-16110

AL2#

COLD SPEC

 1
87107-16060

AL2#

 1
87107-16100

AL2#

 1
87107-16070

AL2#

COLD SPEC

 1
87114 - COVER, HEATER
87137-16010

AL2#

COLD SPEC

 1
87116 - SPRING, HEATER CASE FASTENING
87116-14010

AL2#

 7
87130 - BLOWER ASSY, HEATER, FRONT
87130-16030

AL2#

 1
87130-16080

AL2#

COLD SPEC

 1
87138 - RESISTOR, HEATER BLOWER
87138-16090

AL2#

 1
87138 - RESISTOR, HEATER BLOWER
87138-16090

AL2#

 1
87150 - RADIATOR ASSY, HEATER
87150-16070

AL2#

 1
87150-16130

AL2#

COLD SPEC

 1
87150-16120

AL2#

 1
87150-16080

AL2#

COLD SPEC

 1
Common parts
88891-14050
88892-16030
88899-22090
90099-00946
90099-02210
90099-05164
90119-06098
90179-06115
91613-10601
91651-40530
93510-05016
93540-14008
