AL20-KGKRS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

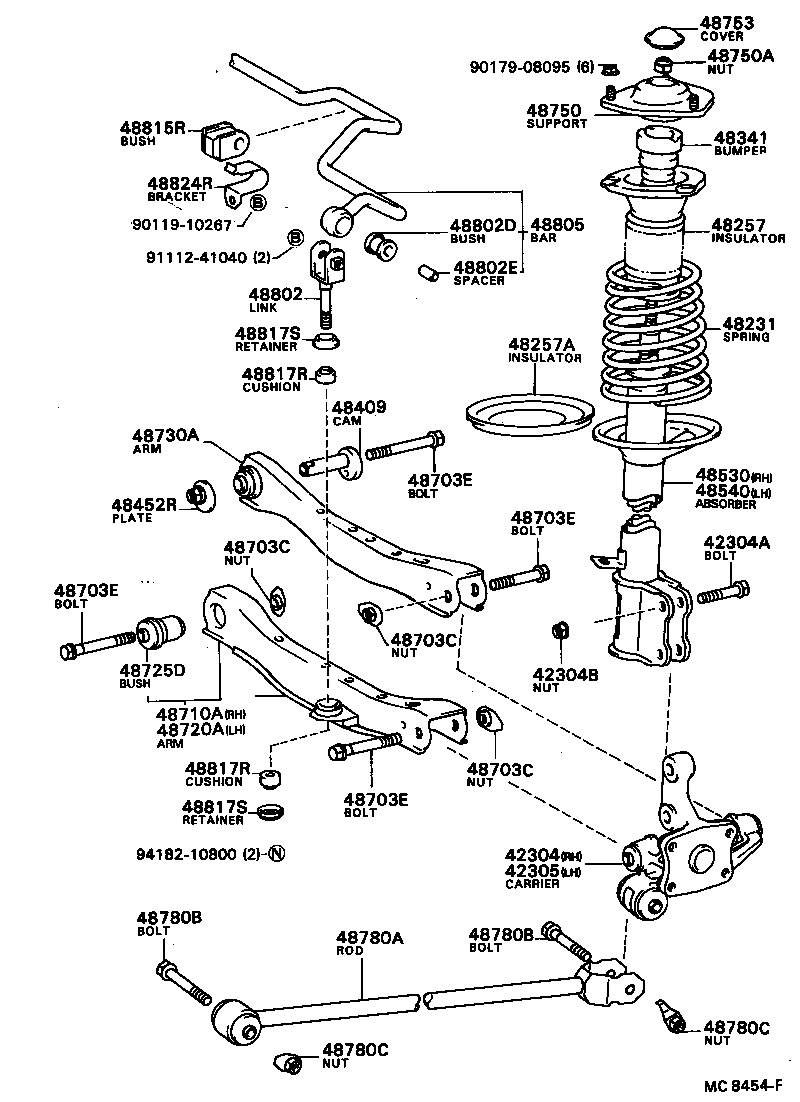

Click highlighted areas on diagram

diagram 42304 42304A 42304B 42305 48231 48257 48257A 48341 48409 48452R 48530 48540 48703C 48703C 48703C 48703E 48703E 48703E 48703E 48710A 48720A 48725D 48730A 48750 48750A 48753 48780A 48780B 48780B 48780C 48780C 48802 48802D 48802E 48805 48815R 48817R 48817R 48817S 48817S 48824R 9011910267 9017908095 9111241040 9418210800
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-16010

AL2#

 1
42304A - BOLT (FOR REAR AXLE CARRIER)
90105-12102

AL2#

 4
90105-12042

AL2#

 4
42304B - NUT (FOR REAR AXLE CARRIER)
90179-12025

AL2#

 4
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-16010

AL2#

 1
48231 - SPRING, COIL, REAR
48231-16091

AL2#..CTD,DLX,GL,SE

 2
48231-16091

AL2#

 2
48231-16090

AL2#..CTD,DLX,GL,SE

 2
48257 - INSULATOR, REAR COIL SPRING
48257-32030

AL2#

 2
48257-32010

AL2#

 2
48257A - INSULATOR, REAR COIL SPRING, LOWER
48258-16010

AL2#

 2
48341 - BUMPER, REAR SPRING
48341-16010

AL2#

 2
48409 - CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST
48409-32010

AL2#

 2
48452R - PLATE, REAR SUSPENSION TOE ADJUST, NO.2
48452-32010

AL2#

 2
48530 - ABSORBER ASSY, SHOCK, REAR RH
48530-16010

AL2#..CTD,DLX,GL,SE

 1
48530-16011

AL2#..CTD,DLX,GL,SE

 1
48530-16051

AL2#..CTD,DLX,GL,SE

 1
48540 - ABSORBER ASSY, SHOCK, REAR LH
48540-16010

AL2#..CTD,DLX,GL,SE

 1
48540-16051

AL2#..CTD,DLX,GL,SE

 1
48540-16011

AL2#..CTD,DLX,GL,SE

 1
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12033

AL2#

NO.1 ARM X BODY

 2
90179-12023

AL2#

NO.1 ARM X CARRIPER

 2
90179-12028

AL2#

NO.2 ARM X CARRIPER

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12033

AL2#

NO.1 ARM X BODY

 2
90179-12023

AL2#

NO.1 ARM X CARRIPER

 2
90179-12028

AL2#

NO.2 ARM X CARRIPER

 2
48703C - NUT(FOR REAR SUSPENSION ARM)
90179-12033

AL2#

NO.1 ARM X BODY

 2
90179-12023

AL2#

NO.1 ARM X CARRIPER

 2
90179-12028

AL2#

NO.2 ARM X CARRIPER

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12038

AL2#

*12−1.25PX72−25,NO.1 ARM

 4
90105-10052

AL2#

NO.2 ARM X BODY

 2
90105-12037

AL2#

NO.2 ARM X CARRIER

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12038

AL2#

*12−1.25PX72−25,NO.1 ARM

 4
90105-10052

AL2#

NO.2 ARM X BODY

 2
90105-12037

AL2#

NO.2 ARM X CARRIER

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12038

AL2#

*12−1.25PX72−25,NO.1 ARM

 4
90105-10052

AL2#

NO.2 ARM X BODY

 2
90105-12037

AL2#

NO.2 ARM X CARRIER

 2
48703E - BOLT(FOR REAR SUSPENSION ARM)
90105-12038

AL2#

*12−1.25PX72−25,NO.1 ARM

 4
90105-10052

AL2#

NO.2 ARM X BODY

 2
90105-12037

AL2#

NO.2 ARM X CARRIER

 2
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-16011

AL20

 1
48710-16010

AL2#..CTD,DLX,GL,SE

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-16010

AL2#..CTD,DLX,GL,SE

 1
48710-16011

AL20

 1
48725D - BUSH, REAR SUSPENSION ARM, NO.3
48725-32080

AL2#

 1
48730A - ARM ASSY, REAR SUSPENSION, NO.2
48730-16010

AL2#

 2
48730-16011

AL2#

 2
48750 - SUPPORT ASSY, REAR SUSPENSION
48750-16020

AL2#

 2
48750-12020

AL2#

 2
48750A - NUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)
94182-11400

AL2#

 2
48753 - COVER, REAR SUSPENSION SUPPORT
48753-16010

AL2#

 2
48780A - ROD ASSY, STRUT, REAR
48780-16010

AL2#

 2
48780B - BOLT(FOR STRUT ROD)
90105-12035

AL2#

 4
48780B - BOLT(FOR STRUT ROD)
90105-12035

AL2#

 4
48780C - NUT(FOR STRUT ROD)
90179-12033

AL2#

ROD X BODY

 2
90179-12023

AL2#

ROD X CARRIPER

 2
48780C - NUT(FOR STRUT ROD)
90179-12033

AL2#

ROD X BODY

 2
90179-12023

AL2#

ROD X CARRIPER

 2
Common parts
90119-10267
90179-08095
91112-41040
94182-10800
