AL20-KGKNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

Click highlighted areas on diagram

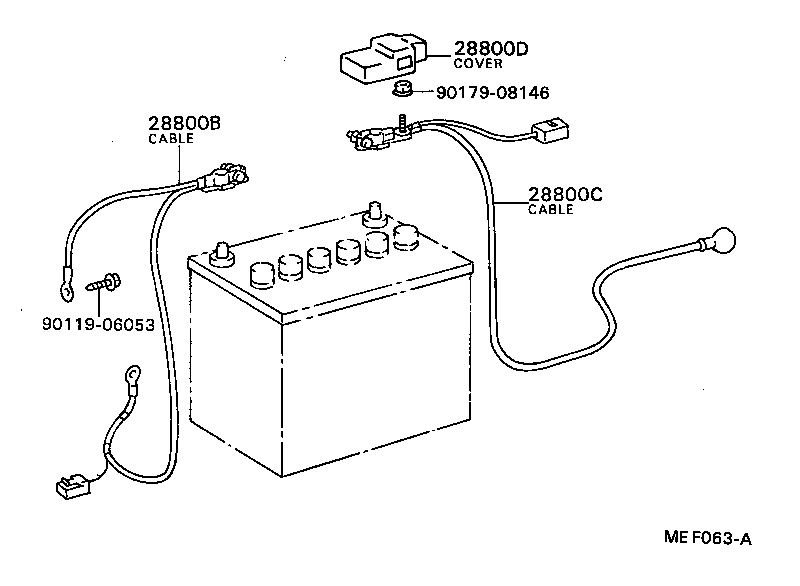

diagram 28800B 28800C 28800D 9011906053 9017908146
Part # Description Qty Price
28800B - CABLE, BATTERY TO GROUND
82123-16010

2AU,3AU..AL2#

 1
82123-16010

2AU,3A#..AL2#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-16020

2AU,3A#..AL2#

STARTER=12V 1.0KW

 1
82122-16010

2AU,3A#..AL2#

STARTER=12V 0.6KW,0.8KW

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12150

2AU,3A#..AL2#

 1
Common parts
90119-06053
90179-08146
