AL20-KGKNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )

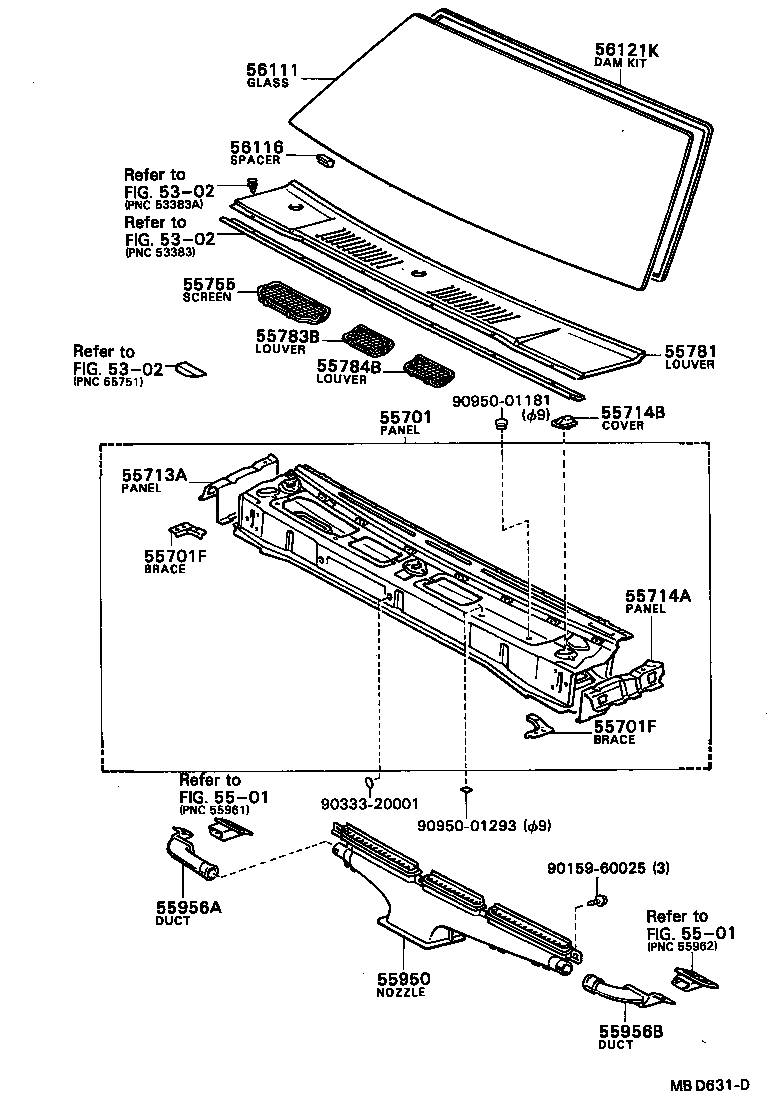

Click highlighted areas on diagram

diagram 5302 5302 5302 5501 5501 55701 55701F 55701F 55713A 55714A 55714B 55755 55781 55783B 55784B 55950 55956A 55956B 56111 56116 56121K 9015960025 9033320001 9095001181 9095001293
Part # Description Qty Price
55701 - PANEL SUB-ASSY, COWL
55700-16030

AL2#

 1
55701F - BRACE, COWL TOP TO APRON
55715-16020

AL2#

RH

 1
55716-16020

AL2#

LH

 1
55701F - BRACE, COWL TOP TO APRON
55715-16020

AL2#

RH

 1
55716-16020

AL2#

LH

 1
55713A - PANEL, COWL TOP SIDE, RH
55713-16020

AL2#

 1
55714A - PANEL, COWL TOP SIDE, LH
55714-16020

AL2#

 1
55714B - COVER, COWL SIDE PANEL HOLE, LH
55729-16010

AL2#

 1
55755 - SCREEN, HEATER AIR DUCT
55756-16020

AL2#

 1
55781 - LOUVER, COWL VENTILATOR
55781-16030

AL2#

 1
55781-16010

AL2#

 1
55783B - LOUVER, COWL TOP VENTILATOR, CENTER NO.1
55783-16030

AL2#

 1
55784B - LOUVER, COWL TOP VENTILATOR, CENTER NO.2
55784-16010

AL2#

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-16021

AL2#

 1
55950-16020

AL2#

 1
55956A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55970-16010

AL2#

 1
55956B - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55980-16010

AL2#

 1
56111 - GLASS, WINDSHIELD
56111-16060

AL2#..GL,SE,SR

*TZT,T=5.0,*TZT,T=5.0

 1
56111-16060

AL2#..DLX,GL,SE,SR

*TZT,T=5.0,*TZT,T=5.0

 1
56111-16100

AL2#..DLX,GL,SR

*TL,T=5.3,*TL,T=5.3

 1
56111-16060

AL2#..DLX,GL,SR

*TZT,T=5.0,*TZT,T=5.0

 1
56116 - SPACER, WINDSHIELD GLASS
56116-16030

AL2#

 2
56116-16020

AL2#

 2
56121K - DAM KIT, WINDSHIELD GLASS
04562-30040

AL2#

 1
04562-30030

AL2#

 1
Common parts
90159-60025
90333-20001
90950-01181
90950-01293
Linked diagrams
5302
5501
