AL20-KGKNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8205- )MTM

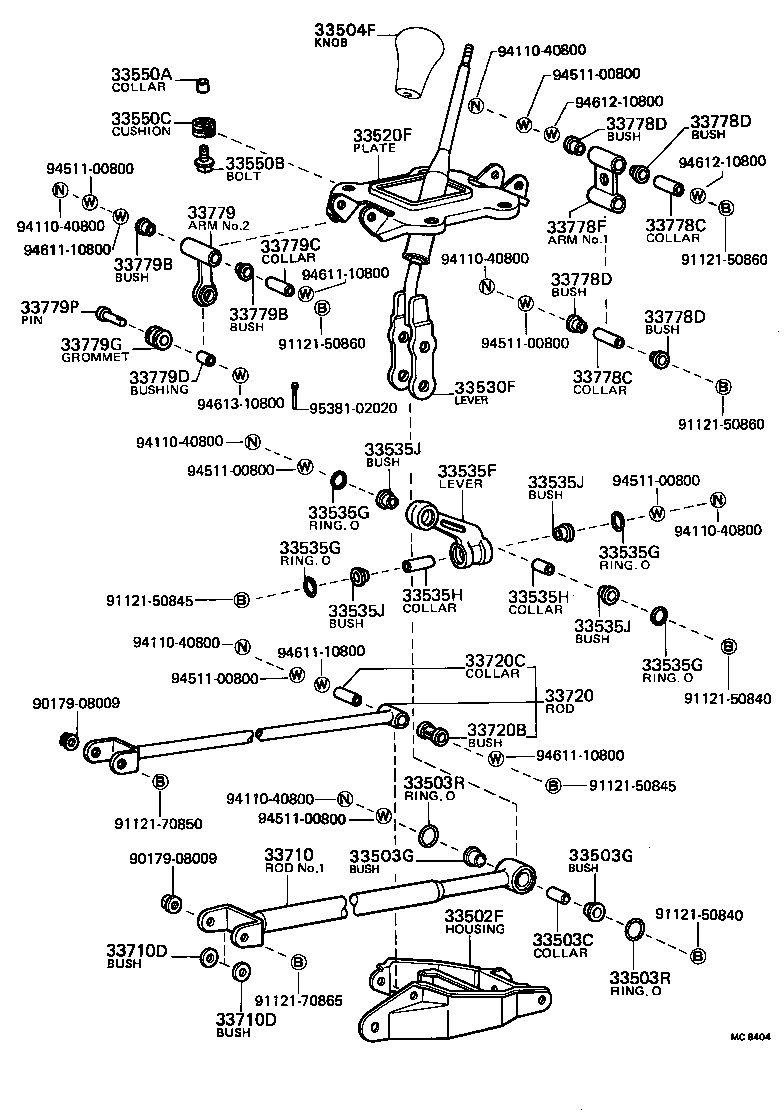

Click highlighted areas on diagram

diagram 33502F 33503C 33503G 33503G 33503R 33503R 33504F 33520F 33530F 33535F 33535G 33535G 33535G 33535G 33535H 33535H 33535J 33535J 33535J 33535J 33550A 33550B 33550C 33710 33710D 33710D 33720 33720B 33720C 33778C 33778C 33778D 33778D 33778D 33778D 33778F 33779 33779B 33779B 33779C 33779D 33779G 33779P 9017908009 9017908009 9112150840 9112150840 9112150845 9112150845 9112150860 9112150860 9112150860 9112170850 9112170865 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9451100800 9461110800 9461110800 9461110800 9461110800 9461210800 9461210800 9461310800 9538102020
Part # Description Qty Price
33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT)
33502-16010

AL2#..MTM

 1
33503C - COLLAR(FOR SHIFT LEVER SUB-ASSY)
90387-08010

AL2#..MTM

 1
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

AL2#..MTM

 2
33503G - BUSH(FOR SHIFT LEVER)
90389-11002

AL2#..MTM

 2
33503R - RING, O(FOR SHIFT LEVER SUB-ASSY)
96711-24018

AL2#..MTM

 2
33503R - RING, O(FOR SHIFT LEVER SUB-ASSY)
96711-24018

AL2#..MTM

 2
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-1404002

AL2#..4F

DARK WINE,RED/MAROON,TRIM3#

 1
33504-1404003

AL2#..4F

GRAY,GRAY,TRIM1#

 1
33504-1404006

AL2#..4F

BROWN,BROWN,TRIM4#

 1
33504-1404013

AL20..4F

GRAY,GRAY,TRIM1#

 1
33504-1404002

AL20..4F..GL

DARK WINE,RED/MAROON,TRIM3#

 1
33504-1404033

AL20..4F

GRAY,GRAY,TRIM1#

 1
33520F - PLATE, SHIFT LEVER
33521-16010

AL2#..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-16030

AL2#..MTM

 1
33535F - LEVER, CONTROL SELECT (FOR FLOOR SHIFT)
33535-16010

AL2#..MTM

 1
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96711-24018

AL2#..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96711-24018

AL2#..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96711-24018

AL2#..MTM

 4
33535G - RING, 0 (FOR CONTROL SELECT LEVER)
96711-24018

AL2#..MTM

 4
33535H - COLLAR (FOR CONTROL SELECT LEVER)
90387-08010

AL2#..MTM

L=22

 1
90387-08009

AL2#..MTM

L=30

 1
33535H - COLLAR (FOR CONTROL SELECT LEVER)
90387-08010

AL2#..MTM

L=22

 1
90387-08009

AL2#..MTM

L=30

 1
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL2#..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL2#..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL2#..MTM

 4
33535J - BUSH (FOR CONTROL SELECT LEVER)
90389-11002

AL2#..MTM

 4
33550A - COLLAR FOR FLOOR SHIFT)
90387-06003

AL2#..MTM

 4
33550B - BOLT, W/WASHER (FOR FLOOR SHIFT)
90119-06182

AL2#..MTM

 4
33550C - CUSHION(FOR FLOOR SHIFT)
90541-13002

AL2#..MTM

 4
33710 - ROD ASSY, GEAR SHIFTING, NO.1
33710-16020

AL2#..MTM

 1
33710D - BUSH (FOR SHIFTING ROD, NO.1)
90386-11005

AL2#..MTM

 2
33710D - BUSH (FOR SHIFTING ROD, NO.1)
90386-11005

AL2#..MTM

 2
33720 - ROD ASSY, SHIFT LEVER HOUSING
33770-16020

AL2#..MTM

 1
33720B - BUSH (FOR SHIFT LEVER HOUSING ROD)
90385-10004

AL2#..MTM

 1
33720C - COLLAR (FOR SHIFT LEVER HOUSING ROD)
90387-08012

AL2#..MTM

 1
33778C - COLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)
90387-08011

AL2#..MTM

 2
33778C - COLLAR(FOR SHIFT LEVER HOUSING ARM, NO.1)
90387-08011

AL2#..MTM

 2
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL2#..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL2#..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL2#..MTM

 4
33778D - BUSH(FOR SHIFT LEVER HOUSING ARM, NO.1)
90386-11002

AL2#..MTM

 4
33778F - ARM, SHIFT LEVER HOUSING, NO.1
33778-16010

AL2#..MTM

 1
33779 - ARM, SHIFT LEVER HOUSING, NO.2
33779-16010

AL2#..MTM

 1
33779B - BUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-11002

AL2#..MTM

 2
33779B - BUSH (FOR SHIFT LEVER HOUSING ARM, NO.2)
90386-11002

AL2#..MTM

 2
33779C - COLLAR (FOR SHIFT LEVER HOUSING ARM, NO.2)
90387-08011

AL2#..MTM

 1
33779D - BUSHING, NO.1 (FOR SHIFT LEVER HOUSING ARM, NO.2)
90389-08005

AL2#..MTM

 1
33779G - GROMMET (FOR SHIFT LEVER HOUSING ARM, NO.2)
90480-17177

AL2#..MTM

 1
33779P - PIN, W/HOLE (FOR SHIFT LEVER HOUSING ARM, NO.2)
90240-08015

AL2#..MTM

 1
Common parts
90179-08009
91121-50840
91121-50845
91121-50860
91121-70850
91121-70865
94110-40800
94511-00800
94611-10800
94612-10800
94613-10800
95381-02020
