AL20-KGKDS (1982)
Toyota Corolla 2
ILLUST NO. 3 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AL2# L=30X40 |
1 | ||
| 81980-16010 |
AL2# L=29.5X28.7 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-07011 |
AL2# 30A,緑,30A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-07011 |
AL2# 30A,緑,30A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 74555-16130 |
AL2# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AL2# 30A,TOKAIRIKA |
2 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA |
2 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-32020 |
AL2# 30A,TOKAIRIKA |
2 | ||
| 82650-20011 |
AL2# 30A,MATSUSHITA |
2 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AL2# |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AL2# HEAD LAMP |
1 | ||
| 90987-02002 |
AL2# TAIL LAMP |
1 | ||
| 90987-01003 |
AL2# |
2 | ||
| 86640 - CHIME ASSY | ||||
| 86640-16040 |
AL2# |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-16050 |
AL2#..MTM..(CTD,DLX,GL,SE) |
1 | ||
| 89550-16140 |
AL20..4F |
1 | ||
| Common parts | ||||
| 91651-40612 | ||||
| 91651-40620 | ||||
| 93560-55012 | ||||
| 93567-55014 | ||||
| 93568-55014 | ||||

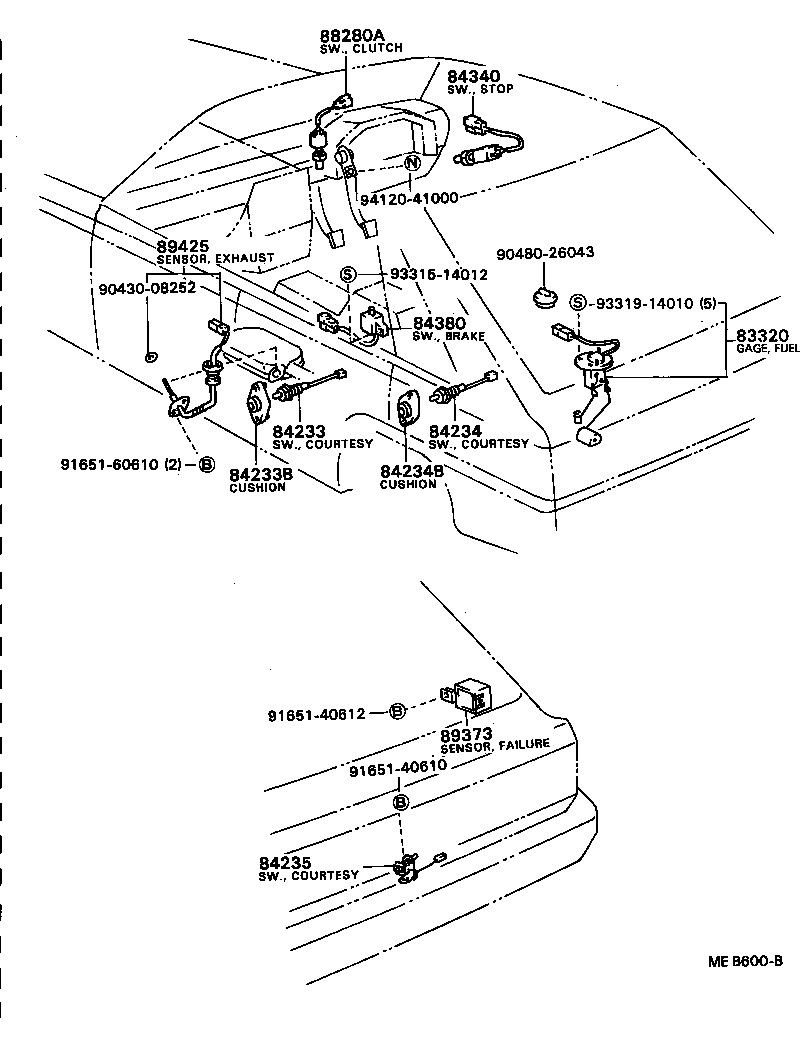

ILLUST NO. 4 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19615 |
AL2#..CTD,DLX,GL |
1 | ||
| 83320-19695 |
AL2#..CTD,DLX,GL |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
AL2# |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-22010 |
AL2# |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-16020 |
AL2# |
1 | ||
| 84231-16021 |
AL2# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AL2# TOKAIRIKA |
1 | ||
| 84340-32010 |
AL2# |
1 | ||
| 84340-30030 |
AL2# MATSUSHITA |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84550-24010 |
AL2# |
1 | ||
| 84550-16010 |
AL2# |
1 | ||
| 88280A - SWITCH ASSY, CLUTCH | ||||
| 88280-16010 |
AL2#..MTM..(CTD,DLX,GL,SE) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-19305 |
AL2# MATSUSHITA |
1 | ||
| 89425-19255 |
AL2# |
1 | ||
| 89425-19345 |
AL2# DENSO |
1 | ||
| Common parts | ||||
| 90430-08252 | ||||
| 90480-26043 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91651-60610 | ||||
| 93315-14012 | ||||
| 93319-14010 | ||||
| 94120-41000 | ||||

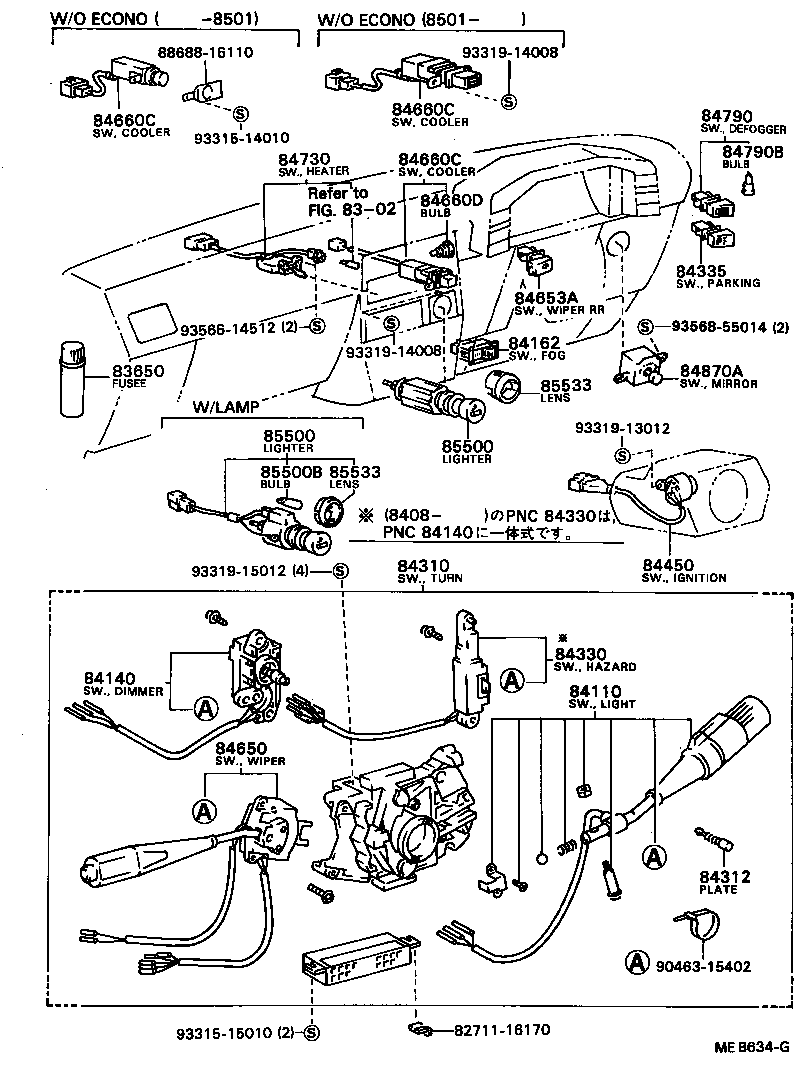

ILLUST NO. 2 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83650 - FUSEE | ||||
| 90986-01003 |
AL2# |
1 | ||
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19385 |
AL2# TOKAIRIKA |
1 | ||
| 84112-19365 |
AL2#..CTD,DLX,GL,SR MATSUSHITA |
1 | ||
| 84112-19675 |
AL20 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19175 |
AL2# TOKAIRIKA |
1 | ||
| 84140-19155 |
AL2#..CTD,DLX,GL,SR MATSUSHITA |
1 | ||
| 84140-19345 |
AL20 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-16080 |
AL20;AL21..DLX |
1 | ||
| 84310-16170 |
AL20 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AL20 MATSUSHITA |
1 | ||
| 84312-32020 |
AL2#..CTD,DLX,GL,SR MATSUSHITA |
1 | ||
| 84312-32010 |
AL2# TOKAIRIKA |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19145 |
AL2# TOKAIRIKA |
1 | ||
| 84332-19125 |
AL2#..CTD,DLX,GL,SR MATSUSHITA |
1 | ||
| 84335 - SWITCH ASSY, PARKING LAMP | ||||
| 84330-16021 |
AL2# |
1 | ||
| 84330-16020 |
AL2# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-16020 |
AL2# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-19585 |
AL20;AL21..DLX MATSUSHITA |
1 | ||
| 84652-19635 |
AL20;AL21..DLX TOKAIRIKA |
1 | ||
| 84652-19585 |
AL20 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-16021 |
AL2#..DLX,GL,SR |
1 | ||
| 84653-16020 |
AL2# |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16040 |
AL20 W/O ECONO |
1 | ||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660-16041 |
AL20 W/O ECONO |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16040 |
AL20 W/O ECONO |
1 | ||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660-16041 |
AL20 W/O ECONO |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-16040 |
AL20 W/O ECONO |
1 | ||
| 84660-16020 |
AL2# W/ECONO |
1 | ||
| 84660-16041 |
AL20 W/O ECONO |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-32010 |
AL2# |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-16030 |
AL2# |
1 | ||
| 84732-16031 |
AL20 |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-16030 |
AL2#..DLX,GL,SE,SR |
1 | ||
| 84790-16031 |
AL2# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10170 |
AL2# 12V 1.12W |
1 | ||
| 84999-10110 |
AL2#..DLX,GL,SE,SR 12V 1.12W |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-32010 |
AL2#..GL,SE |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16060 |
AL2#..DLX,GL,SR W/O LAMP |
1 | ||
| 85500-10090 |
AL20..DLX,GL W/O LAMP |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-16060 |
AL2#..DLX,GL,SR W/O LAMP |
1 | ||
| 85500-10090 |
AL20..DLX,GL W/O LAMP |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
AL2#..DLX,GL,SR |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-10010 |
AL2#..DLX,GL,SR |
1 | ||
| Common parts | ||||
| 82711-16170 | ||||
| 88688-16110 | ||||
| 90463-15402 | ||||
| 93315-14010 | ||||
| 93315-15010 | ||||
| 93319-13012 | ||||
| 93319-14008 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

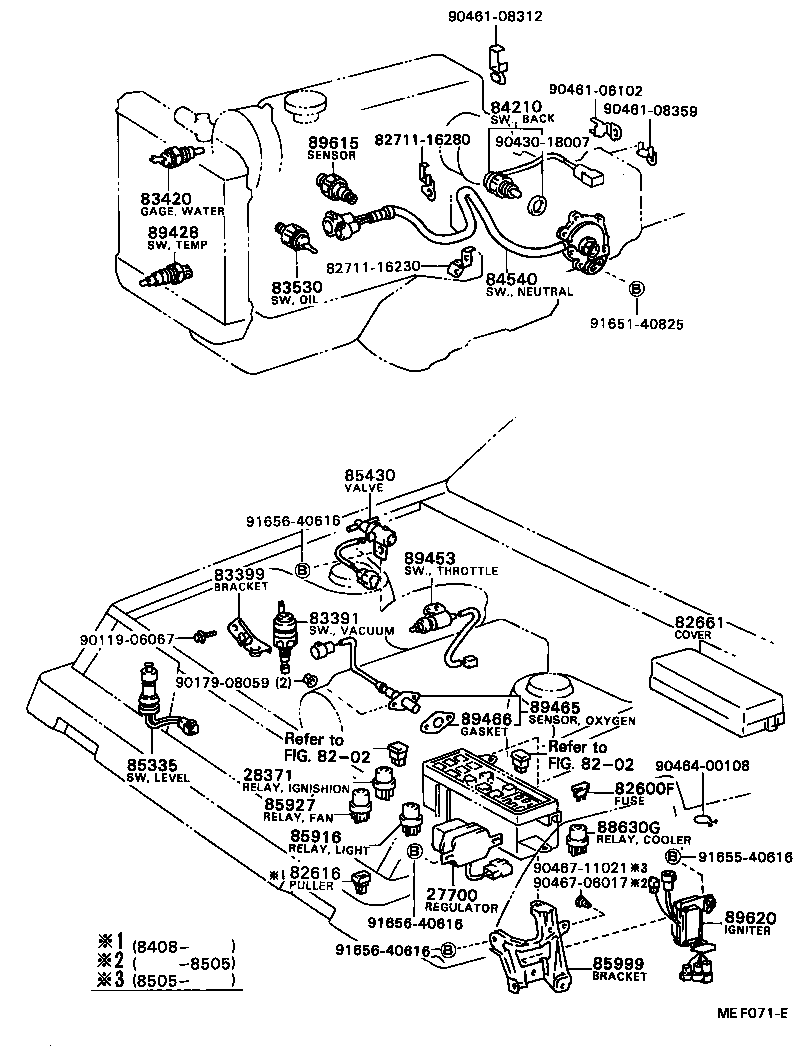

ILLUST NO. 1 OF 4(8205- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27700 - REGULATOR ASSY, GENERATOR | ||||
| 27700-15020 |
2AU,3A#..AL2# |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02002 |
2AU,3A#..AL2# |
1 | ||
| 90987-02004 |
2AU,3A#..AL2# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
AL2# 10A,10A |
1 | ||
| 90982-07011 |
AL2# 30A,緑,30A |
1 | ||
| 90982-09004 |
AL2# 20A,黄,20A |
2 | ||
| 90982-09003 |
AL2# 15A,15A |
8 | ||
| 90982-09005 |
AL2# 7.5A,7.5A |
8 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AL2# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-16060 |
AL2# |
1 | ||
| 82661-16100 |
AL2# |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16030 |
AL2# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16010 |
AL2# |
1 | ||
| 83420-20020 |
AL2# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-12040 |
AL2# |
1 | ||
| 83530-30080 |
AL2# |
1 | ||
| 83530-14040 |
AL2# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-16010 |
AL2#..MTM |
1 | ||
| 84210-16030 |
AL2#..MTM |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
AL2# HEAD LAMP |
1 | ||
| 90987-02002 |
AL2# TAIL LAMP |
1 | ||
| 90987-01003 |
AL2# |
2 | ||
| 85927 - RELAY, COOLING FAN | ||||
| 90987-03001 |
AL2# |
1 | ||
| 85999 - BRACKET, COMBINATION RELAY | ||||
| 85999-16030 |
AL2# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-01003 |
AL2# |
1 | ||
| 90987-02004 |
AL2# |
1 | ||
| 89428 - SWITCH, TEMPERATURE DETECT, NO.2 | ||||
| 89428-15030 |
AL2# |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-14010 |
AL2# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29085 |
AL2# |
1 | ||
| 89465-19065 |
AL2#..3FC,4F |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AL21..3AHU;AL21..3FC..SR;AL2#..CTD,DLX,GL,SE |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-16010 |
AL20..4F..DLX W/KNOCK CONTROL |
1 | ||
| 89615-16010 |
AL20..3DS..4F..DLX W/KNOCK CONTROL |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89620-16090 |
AL20..4F..DLX W/KNOCK CONTROL |
1 | ||
| 89620-16090 |
AL20..3DS..4F..DLX W/KNOCK CONTROL |
1 | ||
| Common parts | ||||
| 82711-16230 | ||||
| 82711-16280 | ||||
| 90119-06067 | ||||
| 90179-08059 | ||||
| 90430-18007 | ||||
| 90461-06102 | ||||
| 90461-08312 | ||||
| 90461-08359 | ||||
| 90464-00108 | ||||
| 90467-06017 | ||||
| 90467-11021 | ||||
| 91651-40825 | ||||
| 91655-40616 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
