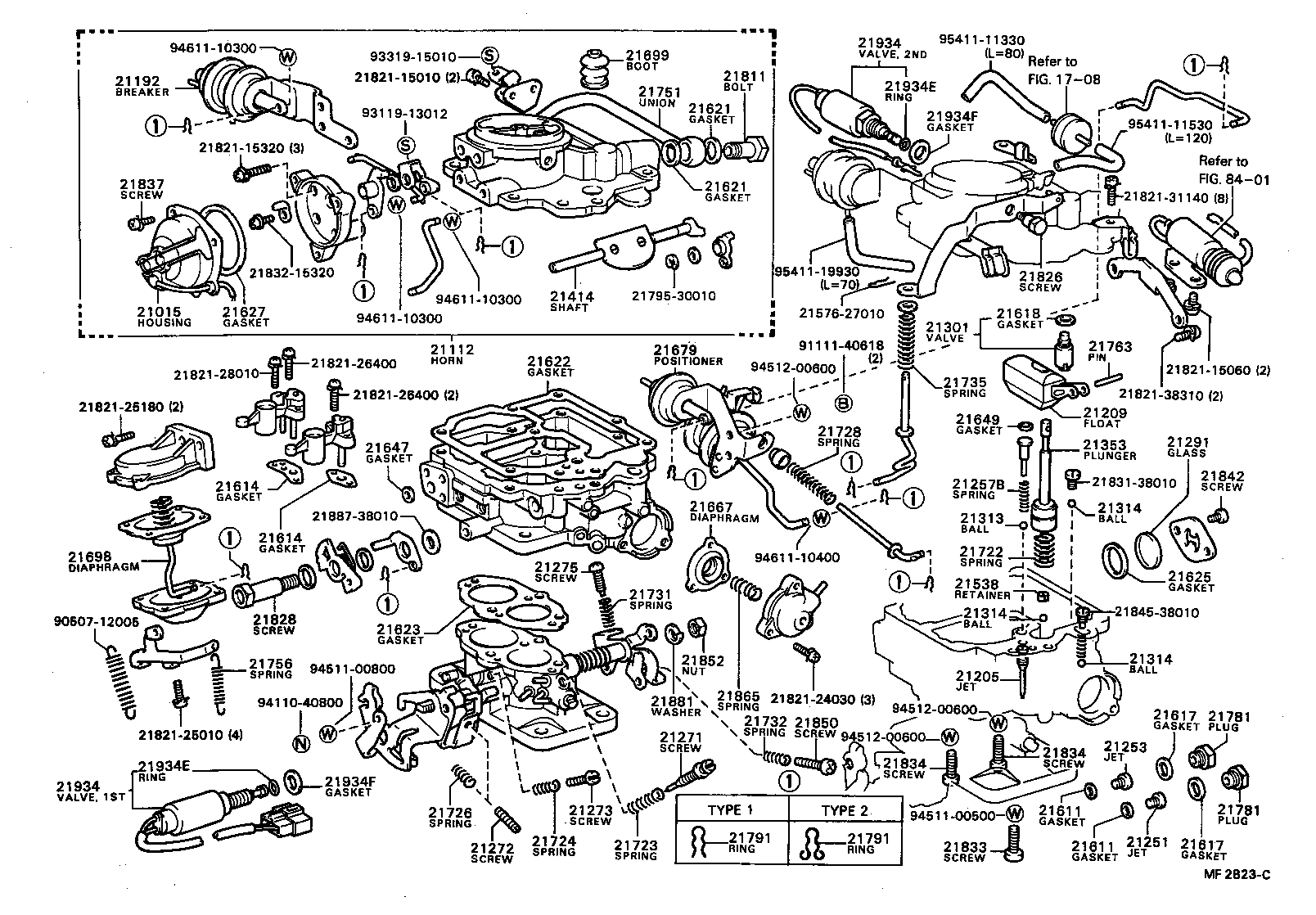

AL20-KGKDS (1982)
Toyota Corolla 2
(8205-8408)2AU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21015 - HOUSING SUB-ASSY, COIL | ||||
| 21015-15230 |
2AU,3AU..AL2# |
1 | ||
| 21112 - HORN, AIR | ||||
| 21112-15270 |
2AU,3AU..AL2# |
1 | ||
| 21112-15271 |
2AU,3AU..AL2# |
1 | ||
| 21192 - BREAKER | ||||
| 21192-15020 |
2AU,3AU..AL2# |
1 | ||
| 21205 - JET SUB-ASSY, SLOW | ||||
| 21205-15010 |
2AU,3AU..AL2# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
2AU,3A#..AL2# |
2 | ||
| 21209-15020 |
2AU,3AU..AL2# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-15460 |
2AU,3A#..AL2# |
2 | ||
| 21251-15461 |
2AU,3A#..AL2# |
2 | ||
| 90999-41103 |
2AU,3AU..AL2# ID=1.03 |
1 | ||
| 21251-11090 |
2AU,3A#..AL2# |
2 | ||
| 21253 - JET, 2ND MAIN | ||||
| 90999-42156 |
2AU,3AU..AL2# ID=1.56 |
1 | ||
| 21257B - SPRING(FOR PUMP JET) | ||||
| 21864-38010 |
2AU,3AU..AL2# |
1 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-25201 |
2AU,3AU..AL2# |
1 | ||
| 21271-15230 |
2AU,3AU..AL2# |
1 | ||
| 21271-15370 |
2AU,3AU..AL2# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-40122 |
2AU,3A#..AL2# |
1 | ||
| 21828-25180 |
2AU,3AU..AL2# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
2AU,3AU..AL2# |
1 | ||
| 21273-11090 |
2AU,3AU..AL2# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-26030 |
2AU,3AU..AL2# |
1 | ||
| 21275-11090 |
2AU,3A#..AL2# |
2 | ||
| 21275-15460 |
2AU,3A#..AL2# |
2 | ||
| 21291 - GLASS, LEVEL GAGE | ||||
| 21291-34320 |
2AU,3AU..AL2# |
1 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-15250 |
2AU,3A#..AL2# |
2 | ||
| 21301-15020 |
2AU,3AU..AL2# |
1 | ||
| 21313 - BALL, STEEL, NO.1(FOR DISCHARGE WEIGHT) | ||||
| 21313-11020 |
2AU,3AU..AL2# |
1 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AU,3AU..AL2# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AU,3AU..AL2# |
3 | ||
| 21314 - BALL, STEEL, NO.2(FOR PUMP PLUNGER) | ||||
| 21314-11020 |
2AU,3AU..AL2# |
3 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-44101 |
2AU,3AU..AL2# |
1 | ||
| 21353-33010 |
2AU,3AU..AL2# |
1 | ||
| 21414 - SHAFT, CHOKE | ||||
| 21054-15320 |
2AU,3AU..AL2# |
1 | ||
| 21054-15230 |
2AU,3AU..AL2# |
1 | ||
| 21538 - RETAINER, BALL CHECK | ||||
| 21538-31010 |
2AU,3A#..AL2# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AU,3AU..AL2# |
2 | ||
| 21611-15250 |
2AU,3A#..AL2# |
2 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AU,3AU..AL2# |
2 | ||
| 21611-15250 |
2AU,3A#..AL2# |
2 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33080 |
2AU,3AU..AL2# 2ND |
1 | ||
| 21614-33010 |
2AU,3AU..AL2# 1ST |
1 | ||
| 21614 - GASKET, VENTURI | ||||
| 21614-33080 |
2AU,3AU..AL2# 2ND |
1 | ||
| 21614-33010 |
2AU,3AU..AL2# 1ST |
1 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AU,3AU..AL2# |
2 | ||
| 21617 - GASKET, MAIN PASSAGE PLUG | ||||
| 21617-30010 |
2AU,3AU..AL2# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2AU,3A#..AL2# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AU,3A#..AL2# |
4 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AU,3A#..AL2# |
4 | ||
| 21622 - GASKET, AIR HORN | ||||
| 21622-26510 |
2AU,3AU..AL2# |
1 | ||
| 21623 - GASKET, BODY FLANGE | ||||
| 21623-15230 |
2AU,3AU..AL2# |
1 | ||
| 21625 - GASKET, LEVEL GAGE | ||||
| 21655-60200 |
2AU,3AU..AL2# |
1 | ||
| 21627 - GASKET, COIL HOUSING | ||||
| 21627-28090 |
2AU,3AU..AL2# |
1 | ||
| 21647 - GASKET, DIAPHRAGM HOUSING CAP | ||||
| 21649-33080 |
2AU,3AU..AL2# |
1 | ||
| 21649 - GASKET(FOR PUMP DISCHARGE WEIGHT STOPPER) | ||||
| 21641-33011 |
2AU,3AU..AL2# |
1 | ||
| 21667 - DIAPHRAGM | ||||
| 21667-38310 |
2AU,3AU..AL2# |
1 | ||
| 21679 - POSITIONER | ||||
| 21679-15271 |
2AU,3AU..AL2# |
1 | ||
| 21679-15270 |
2AU,3AU..AL2# |
1 | ||
| 21698 - DIAPHRAGM | ||||
| 21669-15230 |
2AU,3AU..AL2# |
1 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2AU,3A#..AL2# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2AU,3A#..AL2# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21724-51011 |
2AU,3A#..AL2# |
2 | ||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21723-38010 |
2AU,3AU..AL2# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21726-15251 |
2AU,3A#..AL2# |
1 | ||
| 21723-15260 |
2AU,3AU..AL2# |
1 | ||
| 21728 - SPRING, THROTTLE VALVE RETURN | ||||
| 21756-25181 |
2AU,3AU..AL2# |
1 | ||
| 21731 - SPRING, DASH POT OR POSITIONER ADJUSTING | ||||
| 21723-21030 |
2AU,3A#..AL2# |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-60010 |
2AU,3A#..AL2# |
1 | ||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15270 |
2AU,3AU..AL2# |
1 | ||
| 21735-15250 |
2AU,3A#..AL2# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-15011 |
2AU,3AU..AL2# |
1 | ||
| 21894-15371 |
2AU,3AU..AL2# |
1 | ||
| 21894-15081 |
2AU,3AU..AL2# |
1 | ||
| 21894-15370 |
2AU,3AU..AL2# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15010 |
2AU,3AU..AL2#..MTM |
1 | ||
| 21756-15250 |
2AU,3A#..AL2# |
2 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2AU,3A#..AL2# |
2 | ||
| 21763-26350 |
2AU,3AU..AL2# |
1 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15460 |
2AU,3A#..AL2# |
2 | ||
| 21781-15230 |
2AU,3AU..AL2# |
2 | ||
| 21781-11090 |
2AU,3A#..AL2# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15460 |
2AU,3A#..AL2# |
2 | ||
| 21781-15230 |
2AU,3AU..AL2# |
2 | ||
| 21781-11090 |
2AU,3A#..AL2# |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2AU,3AU..AL2# TYPE 2 |
3 | ||
| 21791-60010 |
2AU,3A#..AL2# TYPE 1 |
10 | ||
| 21791-60010 |
2AU,3A#..AL2# |
3 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2AU,3AU..AL2# TYPE 2 |
3 | ||
| 21791-60010 |
2AU,3A#..AL2# TYPE 1 |
10 | ||
| 21791-60010 |
2AU,3A#..AL2# |
3 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2AU,3A#..AL2# |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2AU,3AU..AL2# |
1 | ||
| 21826-24470 |
2AU,3A#..AL2# |
1 | ||
| 21828 - SCREW, 1ST IDLE SET | ||||
| 21845-15230 |
2AU,3AU..AL2# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2AU,3A#..AL2# |
2 | ||
| 21833-33010 |
2AU,3A#..AL2# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AU,3AU..AL2# |
2 | ||
| 21834 - SCREW, SET, NO.2(FOR CARBURETOR BODY SET) | ||||
| 21844-26400 |
2AU,3AU..AL2# |
2 | ||
| 21837 - SCREW, COIL HOUSING SET | ||||
| 21821-25010 |
2AU,3AU..AL2# |
3 | ||
| 21842 - SCREW, SET(FOR CARBURETOR LEVEL GAGE CLAMP SET) | ||||
| 21842-33010 |
2AU,3AU..AL2# |
2 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21276-11090 |
2AU,3A#..AL2# |
1 | ||
| 21844-15230 |
2AU,3AU..AL2# |
1 | ||
| 21852 - NUT, THROTTLE LEVER SET | ||||
| 21852-30010 |
2AU,3AU..AL2# |
1 | ||
| 21865 - SPRING | ||||
| 21865-15230 |
2AU,3AU..AL2# |
1 | ||
| 21881 - WASHER, LOCK(FOR THROTTLE SHAFT) | ||||
| 21881-60010 |
2AU,3AU..AL2# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-15230 |
2AU,3AU..AL2# 1ST |
1 | ||
| 21072-15230 |
2AU,3AU..AL2# 2ND |
1 | ||
| 21062-15370 |
2AU,3AU..AL2# |
1 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-15230 |
2AU,3AU..AL2# 1ST |
1 | ||
| 21072-15230 |
2AU,3AU..AL2# 2ND |
1 | ||
| 21062-15370 |
2AU,3AU..AL2# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AU,3AU..AL2# |
2 | ||
| 21656-15250 |
2AU,3A#..AL2# |
2 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AU,3AU..AL2# |
2 | ||
| 21656-15250 |
2AU,3A#..AL2# |
2 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2AU,3A#..AL2# |
2 | ||
| 21649-38010 |
2AU,3AU..AL2# |
2 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2AU,3A#..AL2# |
2 | ||
| 21649-38010 |
2AU,3AU..AL2# |
2 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21795-30010 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-15320 | ||||
| 21821-24030 | ||||
| 21821-25010 | ||||
| 21821-25180 | ||||
| 21821-26400 | ||||
| 21821-28010 | ||||
| 21821-31140 | ||||
| 21821-38310 | ||||
| 21831-38010 | ||||
| 21832-15320 | ||||
| 21845-38010 | ||||
| 21887-38010 | ||||
| 90507-12005 | ||||
| 91111-40618 | ||||
| 93119-13012 | ||||
| 93319-15010 | ||||
| 94110-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94512-00600 | ||||
| 94611-10300 | ||||
| 94611-10400 | ||||
| 95411-11330 | ||||
| 95411-11530 | ||||
| 95411-19930 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 8401 | ||||
(8408- )2AU,3AU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 21069 - DASH POT SUB-ASSY | ||||
| 21679-15370 |
2AU,3AU..AL2# |
1 | ||
| 21104 - CHAMBER SUB-ASSY, SUCTION | ||||
| 21014-15370 |
2AU,3AU..AL2# |
1 | ||
| 21014-15371 |
2AU,3AU..AL2# |
1 | ||
| 21127 - BOWL, FLOAT | ||||
| 21127-15370 |
2AU,3AU..AL2# |
1 | ||
| 21139 - ADAPTER(FOR CARBURETOR CONNECTING PIPE) | ||||
| 21139-11090 |
2AU,3A#..AL2# |
1 | ||
| 21209 - FLOAT SUB-ASSY | ||||
| 21209-11090 |
2AU,3A#..AL2# |
2 | ||
| 21209-15020 |
2AU,3AU..AL2# |
1 | ||
| 21251 - JET, 1ST MAIN | ||||
| 21251-15460 |
2AU,3A#..AL2# |
2 | ||
| 21251-15461 |
2AU,3A#..AL2# |
2 | ||
| 90999-41103 |
2AU,3AU..AL2# ID=1.03 |
1 | ||
| 21251-11090 |
2AU,3A#..AL2# |
2 | ||
| 21271 - SCREW, IDLE ADJUSTING | ||||
| 21271-25201 |
2AU,3AU..AL2# |
1 | ||
| 21271-15230 |
2AU,3AU..AL2# |
1 | ||
| 21271-15370 |
2AU,3AU..AL2# |
1 | ||
| 21272 - SCREW, 1ST IDLE ADJUSTING | ||||
| 21273-40122 |
2AU,3A#..AL2# |
1 | ||
| 21828-25180 |
2AU,3AU..AL2# |
1 | ||
| 21273 - SCREW, THROTTLE ADJUSTING | ||||
| 21844-33010 |
2AU,3AU..AL2# |
1 | ||
| 21273-11090 |
2AU,3AU..AL2# |
1 | ||
| 21275 - SCREW, ADJUSTING | ||||
| 21844-26030 |
2AU,3AU..AL2# |
1 | ||
| 21275-11090 |
2AU,3A#..AL2# |
2 | ||
| 21275-15460 |
2AU,3A#..AL2# |
2 | ||
| 21301 - VALVE SUB-ASSY, NEEDLE | ||||
| 21301-15250 |
2AU,3A#..AL2# |
2 | ||
| 21301-15020 |
2AU,3AU..AL2# |
1 | ||
| 21353 - PLUNGER, PUMP | ||||
| 21353-44101 |
2AU,3AU..AL2# |
1 | ||
| 21353-33010 |
2AU,3AU..AL2# |
1 | ||
| 21386 - COMPENSATOR | ||||
| 21386-15370 |
2AU,3AU..AL2# |
1 | ||
| 21499 - ROD, PUSH(FOR CARBURETOR) | ||||
| 21499-15370 |
2AU,3AU..AL2# |
1 | ||
| 21611 - GASKET, MAIN JET | ||||
| 21611-22010 |
2AU,3AU..AL2# |
2 | ||
| 21611-15250 |
2AU,3A#..AL2# |
2 | ||
| 21612 - GASKET, POWER VALVE | ||||
| 21612-15250 |
2AU,3A#..AL2# |
2 | ||
| 21618 - GASKET, NEEDLE VALVE SEAT | ||||
| 21618-14010 |
2AU,3A#..AL2# |
2 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AU,3A#..AL2# |
4 | ||
| 21621 - GASKET, UNION NIPPLE | ||||
| 21633-24030 |
2AU,3A#..AL2# |
4 | ||
| 21641B - GASKET, COMPENSATOR | ||||
| 21641-11090 |
2AU,3AU..AL2# |
1 | ||
| 21642A - GASKET, FLOAT BOWL | ||||
| 21642-11090 |
2AU,3AU..AL2# |
1 | ||
| 21647A - GASKET, ADAPTER | ||||
| 21647-11090 |
2AU,3A#..AL2# |
1 | ||
| 21652 - RING, O(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21652-15250 |
2AU,3A#..AL2# |
2 | ||
| 21655 - RING, O(FOR LIFTER ROD) | ||||
| 21655-60010 |
2AU,3A#..AL2# |
2 | ||
| 21655A - RING, O(FOR SLOW JET) | ||||
| 21655-15250 |
2AU,3A#..AL2# |
2 | ||
| 21658 - RING, O(FOR MAIN GUIDE UPPER) | ||||
| 21658-15250 |
2AU,3A#..AL2# |
2 | ||
| 21699 - BOOT(FOR PUMP PLUNGER) | ||||
| 21699-28150 |
2AU,3A#..AL2# |
1 | ||
| 21699B - BOOT(FOR COMPENSATOR) | ||||
| 21699-11090 |
2AU,3A#..AL2# |
2 | ||
| 21712 - BUSH, SLIDING ROD | ||||
| 21712-38010 |
2AU,3A#..AL2# |
1 | ||
| 21722 - SPRING, PUMP DAMPING | ||||
| 21722-22010 |
2AU,3A#..AL2# |
1 | ||
| 21723 - SPRING, IDLE ADJUSTING | ||||
| 21724-51011 |
2AU,3A#..AL2# |
2 | ||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21724 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21723-38010 |
2AU,3AU..AL2# |
1 | ||
| 21726 - SPRING, 1ST IDLE ADJUSTING | ||||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21726-15251 |
2AU,3A#..AL2# |
1 | ||
| 21723-15260 |
2AU,3AU..AL2# |
1 | ||
| 21729 - SPRING, 1ST THROTTLE BACK | ||||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21732 - SPRING, THROTTLE ADJUSTING | ||||
| 21723-60010 |
2AU,3A#..AL2# |
1 | ||
| 21723-21030 |
2AU,3AU..AL2# |
1 | ||
| 21735 - SPRING, PUMP ARM | ||||
| 21735-15270 |
2AU,3AU..AL2# |
1 | ||
| 21735-15250 |
2AU,3A#..AL2# |
1 | ||
| 21751 - UNION, NIPPLE | ||||
| 21894-15011 |
2AU,3AU..AL2# |
1 | ||
| 21894-15371 |
2AU,3AU..AL2# |
1 | ||
| 21894-15081 |
2AU,3AU..AL2# |
1 | ||
| 21894-15370 |
2AU,3AU..AL2# |
1 | ||
| 21756 - SPRING, BACK(FOR THROTTLE SHAFT) | ||||
| 21756-15010 |
2AU,3AU..AL2#..MTM |
1 | ||
| 21756-15250 |
2AU,3A#..AL2# |
2 | ||
| 21763 - PIN, FLOAT LEVER | ||||
| 21763-38010 |
2AU,3A#..AL2# |
2 | ||
| 21763-26350 |
2AU,3AU..AL2# |
1 | ||
| 21765 - PIN(FOR PUMP PLUNGER) | ||||
| 21765-15250 |
2AU,3A#..AL2# |
2 | ||
| 21769 - PIN(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21769-15250 |
2AU,3A#..AL2# |
2 | ||
| 21781 - PLUG, MAIN PASSAGE(FOR CARBURETOR JET) | ||||
| 21781-15460 |
2AU,3A#..AL2# |
2 | ||
| 21781-15230 |
2AU,3AU..AL2# |
2 | ||
| 21781-11090 |
2AU,3A#..AL2# |
2 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
2AU,3A#..AL2# NO.1 |
2 | ||
| 21672-15250 |
2AU,3A#..AL2# NO.2 |
2 | ||
| 21785A - PLUG, PLATE(FOR SUCTION CHANBER ADJUSTING) | ||||
| 21785-11090 |
2AU,3A#..AL2# NO.1 |
2 | ||
| 21672-15250 |
2AU,3A#..AL2# NO.2 |
2 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2AU,3AU..AL2# TYPE 2 |
3 | ||
| 21791-60010 |
2AU,3A#..AL2# TYPE 1 |
10 | ||
| 21791-60010 |
2AU,3A#..AL2# |
3 | ||
| 21791 - RING, SNAP, NO.1(FOR CARBURETOR LINK) | ||||
| 21791-13010 |
2AU,3AU..AL2# TYPE 2 |
3 | ||
| 21791-60010 |
2AU,3A#..AL2# TYPE 1 |
10 | ||
| 21791-60010 |
2AU,3A#..AL2# |
3 | ||
| 21811 - BOLT, UNION NIPPLE | ||||
| 21811-11060 |
2AU,3A#..AL2# |
2 | ||
| 21826 - SCREW, PUMP ARM SET | ||||
| 21826-31012 |
2AU,3AU..AL2# |
1 | ||
| 21826-24470 |
2AU,3A#..AL2# |
1 | ||
| 21833 - SCREW, SET, NO.1(FOR CARBURETOR BODY SET) | ||||
| 21833-31012 |
2AU,3A#..AL2# |
2 | ||
| 21833-33010 |
2AU,3A#..AL2# |
2 | ||
| 21843 - SCREW OR PIN (FOR DASH POT OR POSITIONER LEVER) | ||||
| 21273-60151 |
2AU,3AU..AL2# |
1 | ||
| 21850 - SCREW, THROTTLE SWITCH ADJUSTING | ||||
| 21276-11090 |
2AU,3A#..AL2# |
1 | ||
| 21844-15230 |
2AU,3AU..AL2# |
1 | ||
| 21869 - SPRING(FOR MAIN JET) | ||||
| 21869-15250 |
2AU,3A#..AL2# |
2 | ||
| 21934 - SOLENOID, THROTTLE VALVE | ||||
| 21062-15230 |
2AU,3AU..AL2# 1ST |
1 | ||
| 21072-15230 |
2AU,3AU..AL2# 2ND |
1 | ||
| 21062-15370 |
2AU,3AU..AL2# |
1 | ||
| 21934E - RING, O(FOR SOLENOID VALVE) | ||||
| 21655-44101 |
2AU,3AU..AL2# |
2 | ||
| 21656-15250 |
2AU,3A#..AL2# |
2 | ||
| 21934F - GASKET | ||||
| 21633-15250 |
2AU,3A#..AL2# |
2 | ||
| 21649-38010 |
2AU,3AU..AL2# |
2 | ||
| Common parts | ||||
| 21576-27010 | ||||
| 21821-15010 | ||||
| 21821-15060 | ||||
| 21821-31140 | ||||
| 21821-34380 | ||||
| 90079-11001 | ||||
| 93319-15010 | ||||
| 94120-40800 | ||||
| 94511-00500 | ||||
| 94511-00800 | ||||
| 94612-10600 | ||||
| 95411-10330 | ||||
| Linked diagrams | ||||
| 2102 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
