AL20-KGHNS (1982)

Toyota Corolla 2

Production May 1982 - Apr 1986
Engine 2AU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8205- )3FC

Click highlighted areas on diagram

diagram 35118 35119 9011910025 9011910266 9161161025 9161161025
Part # Description Qty Price
35118 - PLATE, STIFENER, RH (ATM)
33118-16010

AL2#..3FC

 1
35119 - PLATE, STIFENER, LH (ATM)
33119-16030

AL2#..3FC

 1
Common parts
90119-10025
90119-10266
91611-61025

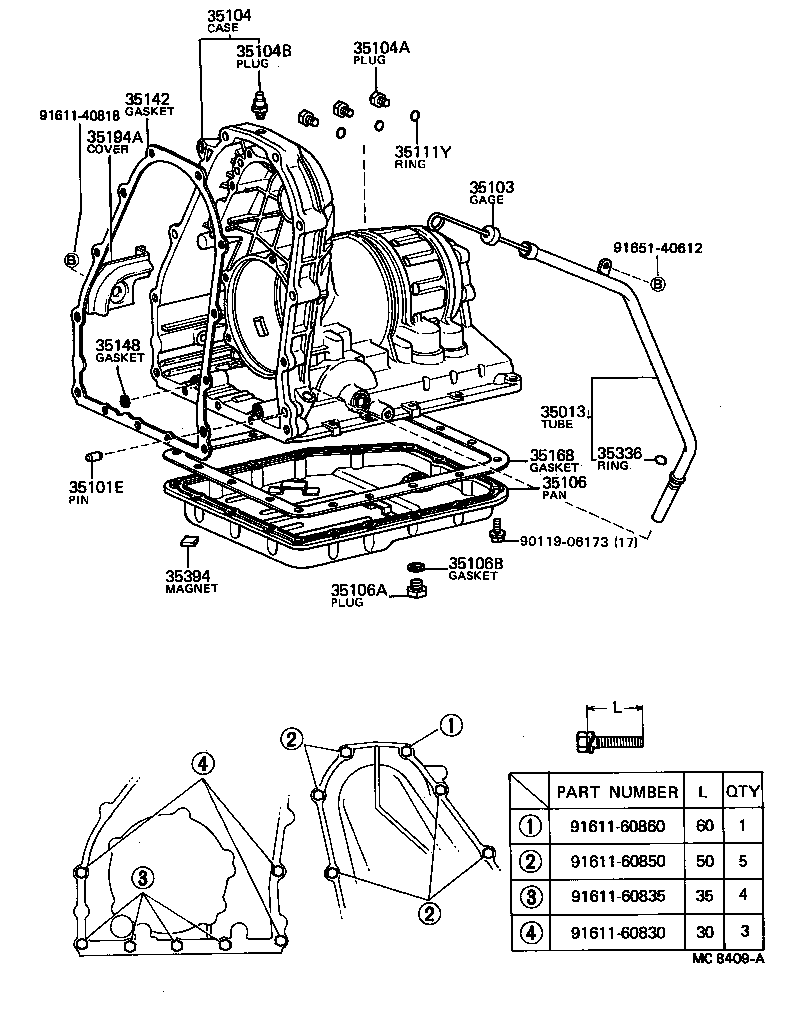

ILLUST NO. 2 OF 2(8205- )3FC

Click highlighted areas on diagram

diagram 35013 35101E 35103 35104 35104A 35104B 35106 35106A 35106B 35111Y 35142 35148 35168 35194A 35336 35394 9011906173 9161140818 9161160830 9161160835 9161160850 9161160860 9165140612
Part # Description Qty Price
35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35013-16012

AL2#..3FC

 1
35101E - PIN, STRAIGHT (FOR AUTOMATIC TRANSMISSION CASE)
90250-10232

AL2#..3FC

 1
35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103-16020

AL2#..3FC

 1
35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION
35104-16013

AL2#..3FC

 1
35104-16012

AL2#..3FC

 1
35104A - PLUG, AUTOMATIC TRANSMISSION CASE
90341-08001

AL2#..3FC

 3
35104B - PLUG, BREATHER, NO.1 (ATM)
90930-03001

AL2#..3FC

 1
35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL
35106-16010

AL2#..3FC

 1
35106A - PLUG SUB-ASSY, DRAIN (ATM)
90341-18049

AL2#..3FC

 1
35106B - GASKET, DRAIN PLUG (ATM)
12157-10010

AL2#..3FC

 1
35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-06196

AL2#..3FC

 3
35142 - GASKET, TRANSMISSION CASE(ATM)
35142-16010

AL2#..3FC

 1
35148 - GASKET, GOVERNOR APPLY, NO.1
35148-16010

AL2#..3FC

 2
35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN
35168-16010

AL2#..3FC

 1
35194A - COVER, TRANSMISSION CASE DUST
35194-16010

AL2#..3FC

 1
35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173

AL2#..3FC

 1
35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION)
35394-30011

AL2#..3FC

 2
Common parts
90119-06173
91611-40818
91611-60830
91611-60835
91611-60850
91611-60860
91651-40612
