ZWE214W-AWXEB (2019)

Toyota Corolla

Production Sep 2019 - Sep 9999
Engine 2ZRFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1909- )ZWE21#..WG

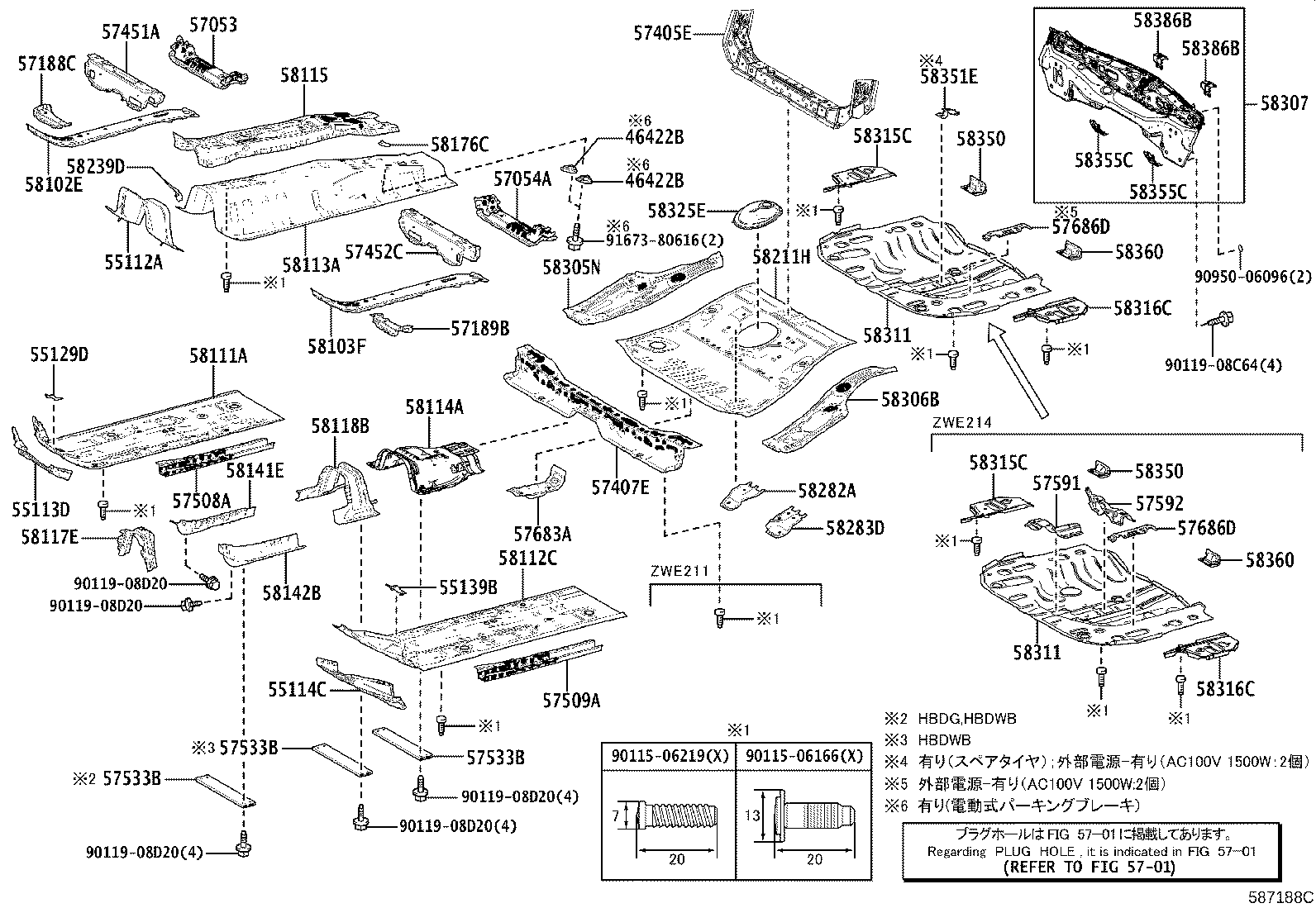

Click highlighted areas on diagram

diagram 46422B 46422B 55112A 55113D 55114C 55129D 55139B 5701 57053 57054A 57188C 57189B 57405E 57407E 57451A 57452C 57508A 57509A 57533B 57533B 57533B 57591 57592 57683A 57686D 57686D 58102E 58103F 58111A 58112C 58113A 58114A 58115 58117E 58118B 58141E 58142B 58176C 58211H 58239D 58282A 58283D 58305N 58306B 58307 58311 58311 58315C 58315C 58316C 58316C 58325E 58350 58350 58351E 58355C 58355C 58360 58360 58386B 58386B 9011506166 9011506219 9011908C64 9011908D20 9011908D20 9011908D20 9011908D20 9011908D20 9095006096 9167380616
Part # Description Qty Price
46422B - CAP, PARKING BRAKE CABLE, CASING
46422-12011

NRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB

 2
46422B - CAP, PARKING BRAKE CABLE, CASING
46422-12011

NRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB

 2
55112A - PANEL, DASH, NO.2
55112-47040

MZEA12,NRE210,ZRE212,ZWE21#

 1
55113D - PANEL, DASH, LOWER RH
55113-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
55113-47021

MZEA12,NRE210,ZRE212,ZWE21#

 1
55114C - PANEL, DASH, LOWER LH
55114-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
55129D - COVER, DASH PANEL HOLE, RH
55129-47021

MZEA12,NRE210,ZRE212,ZWE21#

 1
55139B - COVER, DASH PANEL HOLE, LH
55139-47021

MZEA12,NRE210,ZRE212,ZWE21#

 1
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57053-12041

MZEA12,NRE210,ZRE212,ZWE21#

 1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57054-12061

MZEA12,NRE210,ZRE212,ZWE21#

 1
57188C - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57188-47030

MZEA12,NRE210,ZRE212,ZWE21#

 1
57189B - REINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57189-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
57405E - MEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.2
57405-12060

MZEA12,NRE210,ZRE212,ZWE21#

 1
57407E - MEMBER SUB-ASSY, CENTER FLOOR CROSS
57407-47021

ZWE21#

 1
57407-47020

ZWE21#

 1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-47040

MZEA12,NRE210,ZRE212,ZWE21#

 1
57452C - MEMBER, FRONT FLOOR CROSS, LH
57452-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
57508A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57508-10010

MZEA12,NRE210,ZRE212,ZWE21#

 1
57509A - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57508-10010

MZEA12,NRE210,ZRE212,ZWE21#

 1
57533B - BRACE, FRONT FLOOR, CENTER
57533-47030

ZRE212,ZWE21#..HBDS,S

 2
57533-47030

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

 3
57533B - BRACE, FRONT FLOOR, CENTER
57533-47030

ZRE212,ZWE21#..HBDS,S

 2
57533-47030

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

 3
57533B - BRACE, FRONT FLOOR, CENTER
57533-47030

ZRE212,ZWE21#..HBDS,S

 2
57533-47030

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDWB,WB

 3
57591 - BRACKET, VOLTAGE CONVERTER MOUNT, LOWER FRONT
57591-47010

ZWE214..WG

 1
57592 - BRACKET, VOLTAGE CONVERTER MOUNT, LOWER REAR
57592-47010

ZWE214..WG

 1
57683A - BRACKET, FUEL TANK MOUNTING, NO.1
57683-47042

ZWE21#

 1
57686D - BRACKET, REAR FLOOR MOUNTING, NO.1 LH
57686-47030

ZWE214..WG

 1
57686-47030

ZWE214..WG

外部電源−有り(AC100V 1500W:2個)

 1
57686D - BRACKET, REAR FLOOR MOUNTING, NO.1 LH
57686-47030

ZWE214..WG

 1
57686-47030

ZWE214..WG

外部電源−有り(AC100V 1500W:2個)

 1
58102E - REINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
58102-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
58103F - REINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
58102-47020

MZEA12,NRE210,ZRE212,ZWE21#

 1
58111A - PAN, FRONT FLOOR, RH
58111-10201

MZEA12,NRE210,ZRE212,ZWE21#

 1
58111-10210

MZEA12,NRE210,ZRE212,ZWE21#

 1
58111-10200

NRE210,ZRE212,ZWE21#..WG

 1
58112C - PAN, FRONT FLOOR, LH
58112-10040

NRE210,ZRE212,ZWE21#..WG

 1
58112-10050

MZEA12,NRE210,ZRE212,ZWE21#

 1
58112-10041

MZEA12,NRE210,ZRE212,ZWE21#

 1
58113A - PANEL, FRONT FLOOR, CENTER
58113-10080

MZEA12,NRE210,ZRE212,ZWE21#..G,HBDGX,HBDS,HBDWB,S,WB

 1
58113-12080

NRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB

 1
58114A - REINFORCEMENT, FRONT FLOOR PANEL
58105-12010

MZEA12,NRE210,ZRE212,ZWE21#

 1
58115 - REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58015-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
58117E - PANEL, FRONT FLOOR SUB COVER
58117-47040

MZEA12,NRE210,ZRE212,ZWE21#

 1
58118B - REINFORCEMENT, FRONT FLOOR PANEL, NO.2
58118-47030

MZEA12,NRE210,ZRE212,ZWE21#

 1
58141E - REINFORCEMENT, FRONT SIDE MEMBER TO FLOOR PAN, RH
58141-47011

MZEA12,NRE210,ZRE212,ZWE21#

 1
58142B - REINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH
58142-47011

MZEA12,NRE210,ZRE212,ZWE21#

 1
58176C - REINFORCEMENT, PARKING BRAKE BASE, NO.2
58176-12020

NRE210,ZRE212,ZWE21#..HBDGX,HBDS,HBDWB,S,WB

 1
58211H - PAN, CENTER FLOOR
58211-47100

ZWE21#

 1
58239D - BRACKET, CABLE CLAMP
58239-12030

MZEA12,NRE210,ZRE212,ZWE21#

 1
58282A - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58282-47050

MZEA12,NRE210,ZRE212,ZWE21#

 1
58283D - BASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58283-47040

MZEA12,NRE210,ZRE212,ZWE21#

 1
58305N - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH
58305-47051

ZWE21#

 1
58306B - EXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH
58306-47051

ZWE21#

 1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-12C90

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
58311 - PAN, REAR FLOOR
58311-47140

ZWE214..WG

 1
58311-16190

ZWE214..WG

 1
58311 - PAN, REAR FLOOR
58311-47140

ZWE214..WG

 1
58311-16190

ZWE214..WG

 1
58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-12130

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
58315C - EXTENSION, REAR FLOOR SIDE PANEL, RH
58315-12130

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH
58316-12120

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
58316C - EXTENSION, REAR FLOOR SIDE PANEL, LH
58316-12120

MZEA12,NRE210,ZRE212,ZWE21#..WG

 1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-47051

ZWE21#

 1
58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58350-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
58350 - REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58350-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
58355C - BRACKET, REAR BUMPER ARM
58355-12070

MZEA12,NRE210,ZRE212,ZWE21#..WG

 2
58355C - BRACKET, REAR BUMPER ARM
58355-12070

MZEA12,NRE210,ZRE212,ZWE21#..WG

 2
58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58350-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
58360 - REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58350-47010

MZEA12,NRE210,ZRE212,ZWE21#

 1
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

MZEA12,NRE210,ZRE212,ZWE21#

 2
58386B - BRACKET, REAR BUMPER COVER, NO.2
58386-47020

MZEA12,NRE210,ZRE212,ZWE21#

 2
Common parts
90115-06166
90115-06219
90119-08C64
90119-08D20
90950-06096
91673-80616
Linked diagrams
5701
