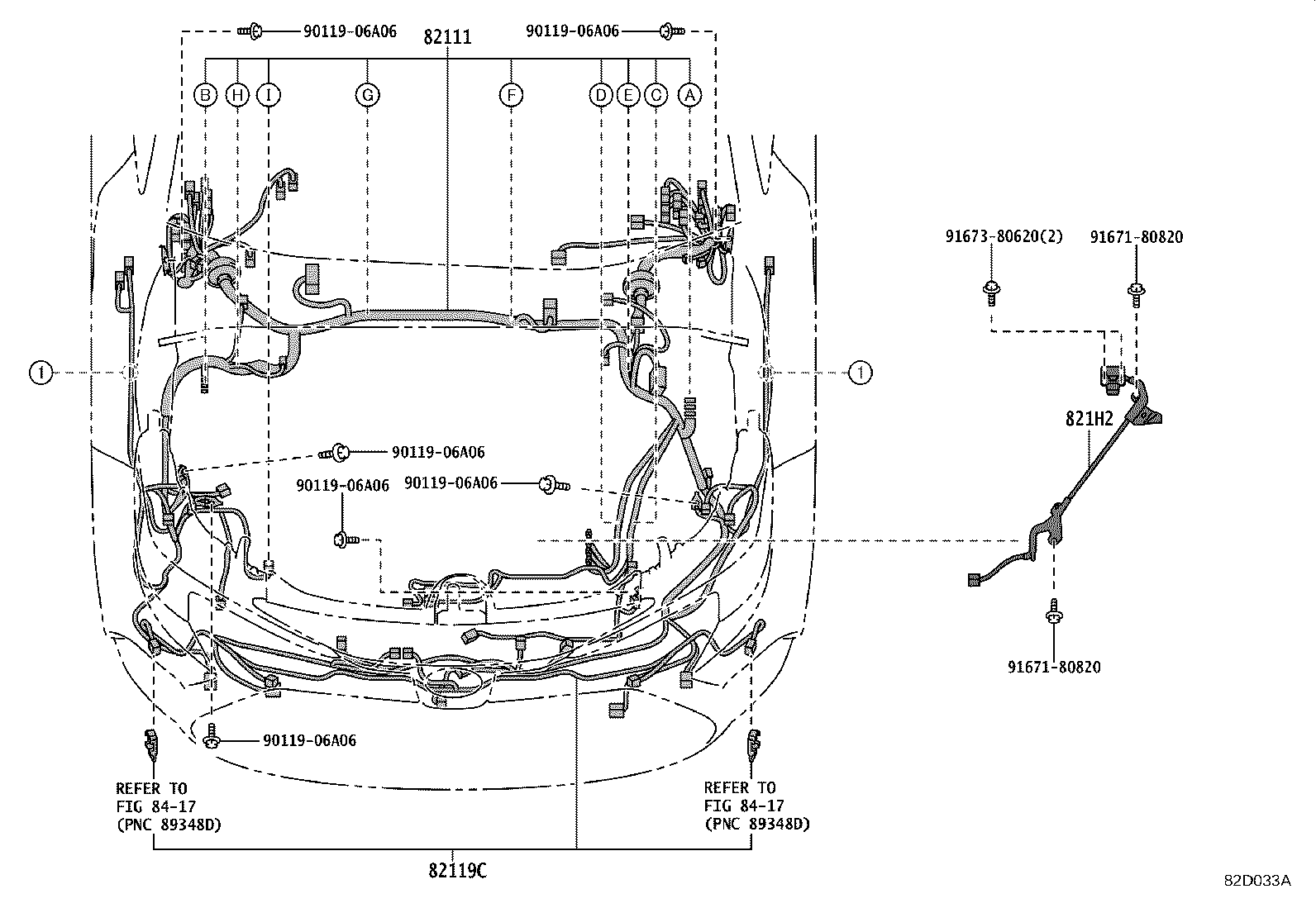

ZWE214-AEXSB (2019)
Toyota Corolla
ILLUST NO. 1 OF12(1908- )ZWE21#
ｴﾝｼﾞﾝﾙｰﾑ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-1KN80 |
ZWE214..HBDWB |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-12060 |
MZEA12,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 821H2 - WIRE, HV AIR CONDITIONER | ||||
| 821H2-47010 |
ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91671-80820 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8417 | ||||
ILLUST NO. 2 OF12(1908- )ZWE21#
ｴﾝｼﾞﾝﾙｰﾑ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-47C20 |
ZWE21# |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-47C90 |
ZWE21# |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-47D00 |
ZWE21# |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-47D30 |
ZWE21# |
1 | ||
| 82816G - COVER, WIRING HARNESS PROTECTOR, NO.5 | ||||
| 82815-47D40 |
ZWE21# |
1 | ||
| 82816H - COVER, WIRING HARNESS PROTECTOR, NO.6 | ||||
| 82815-47880 |
ZWE21# |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-47N40 |
ZWE21# |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47N60 |
ZWE21# |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47N70 |
ZWE21# |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47P00 |
ZWE21# |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47P10 |
ZWE21# |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-47N30 |
ZWE21# |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-30650 |
ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A18 | ||||
| 90119-08D22 | ||||
| 90178-06026 | ||||
| Linked diagrams | ||||
| 8401 | ||||

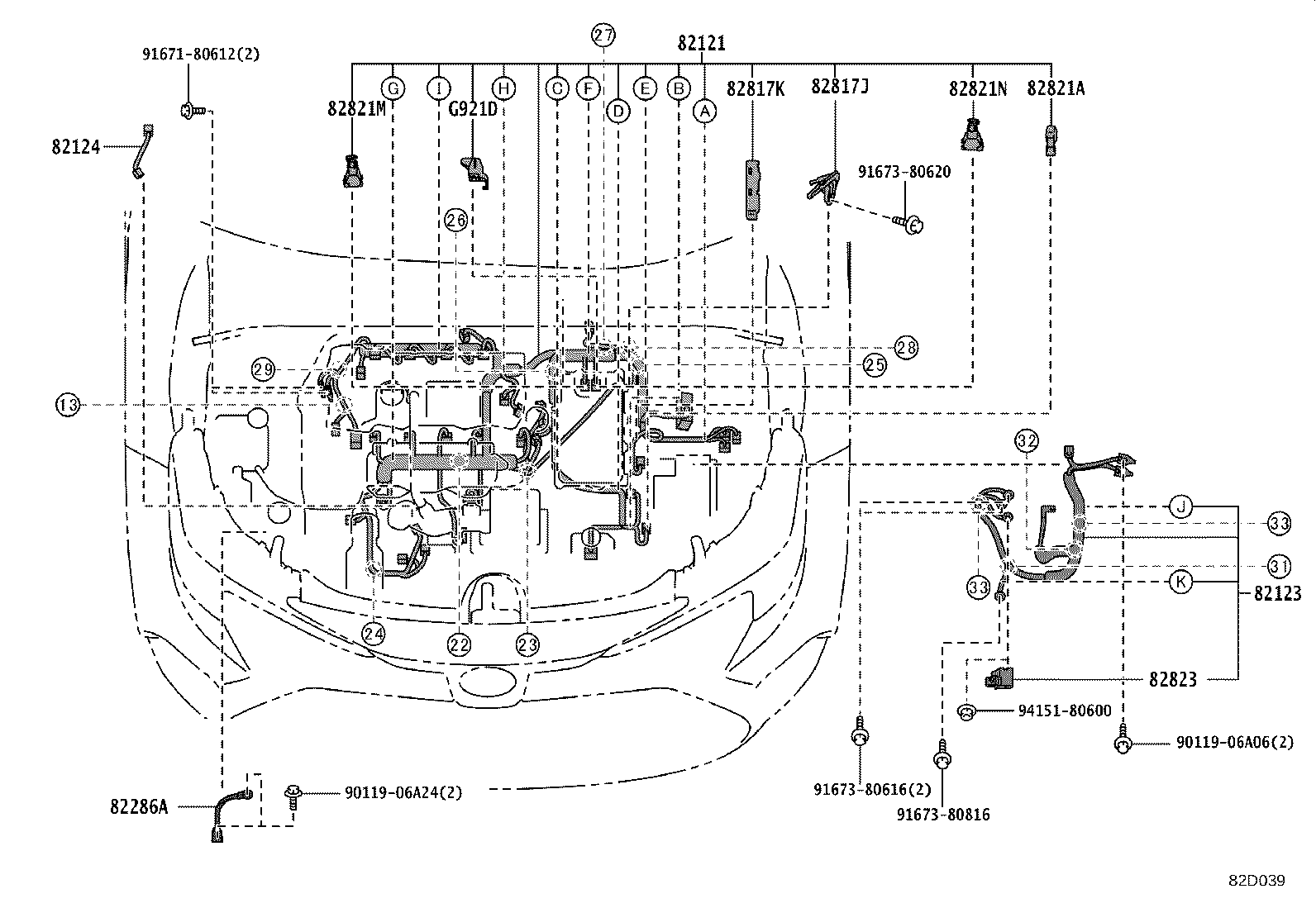

ILLUST NO. 3 OF12(1908- )ZWE21#
ｴﾝｼﾞﾝ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-12T60 |
ZWE214 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-10170 |
ZWE21# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12160 |
ZRE212,ZWE21# |
1 | ||
| 82286A - WIRE, EARTH, NO.2 | ||||
| 82286-47010 |
ZRE212,ZWE21# |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-47S30 |
ZWE21# |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-47S40 |
ZWE21# |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-47330 |
ZWE21# |
1 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-47420 |
ZWE21# |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-47430 |
ZWE21# |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-47050 |
ZWE21# |
1 | ||
| G921D - PROTECTOR, INVERTER CONNECTOR COVER | ||||
| G921D-47020 |
ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 90119-06A24 | ||||
| 91671-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80816 | ||||
| 94151-80600 | ||||

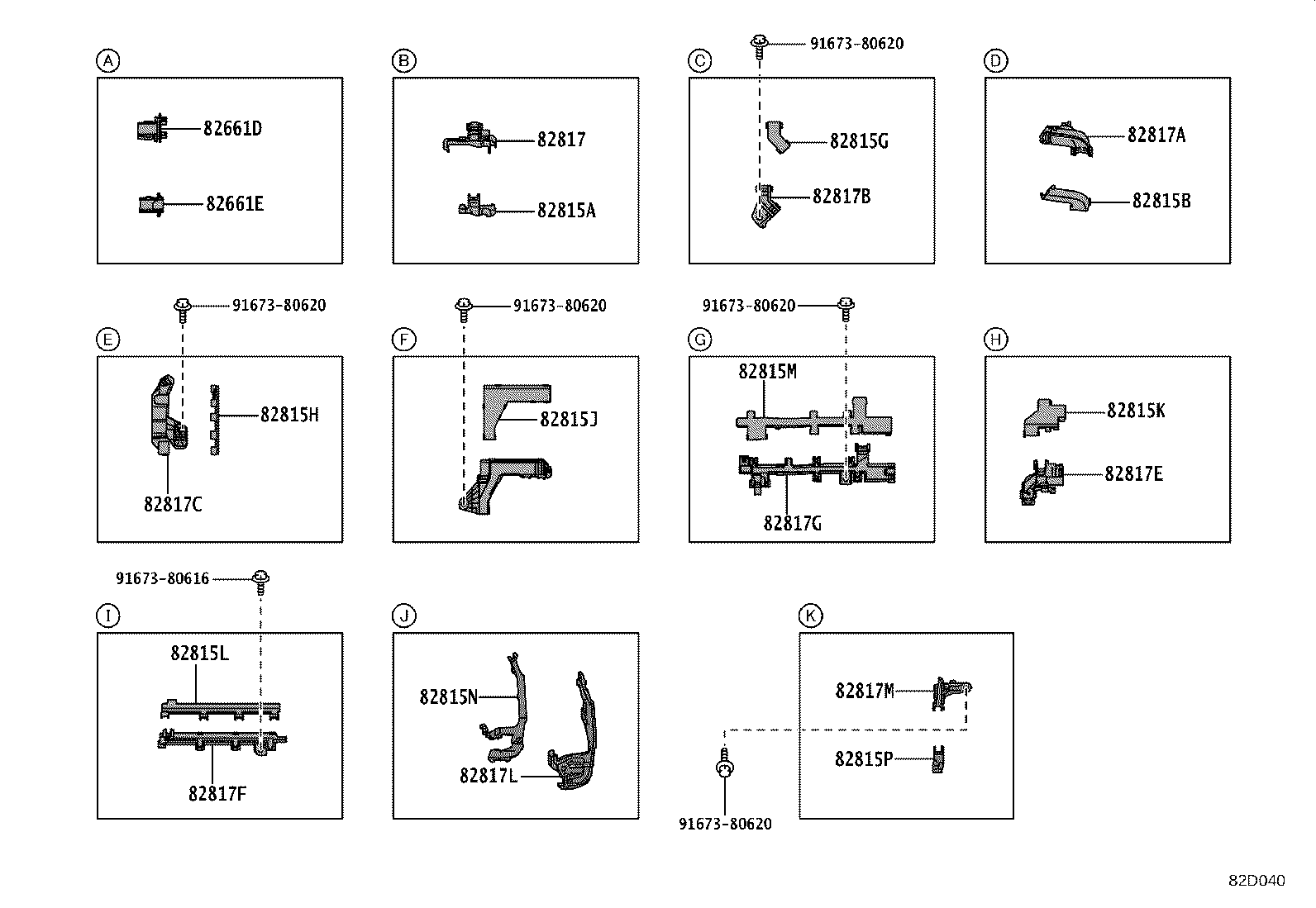

ILLUST NO. 4 OF12(1908- )ZWE21#
ｴﾝｼﾞﾝ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661D - COVER, RELAY BLOCK, SIDE NO.1 | ||||
| 82661-47020 |
ZWE21# |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-47030 |
ZWE21# |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-12M00 |
ZWE21# |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-47D80 |
ZWE21# |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-12M10 |
ZWE21# |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-47E00 |
ZWE21# |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-47E10 |
ZWE21# |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-47E30 |
ZWE21# |
1 | ||
| 82815L - COVER, WIRING HARNESS PROTECTOR, NO.9 | ||||
| 82815-47E40 |
ZWE21# |
1 | ||
| 82815M - COVER, WIRING HARNESS PROTECTOR, NO.10 | ||||
| 82815-47E20 |
ZWE21# |
1 | ||
| 82815N - COVER, WIRING HARNESS PROTECTOR, NO.11 | ||||
| 82815-47E50 |
ZWE21# |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-10080 |
ZWE21# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-1A880 |
ZWE21# |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-47P50 |
ZWE21# |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-1A890 |
ZWE21# |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-47P70 |
ZWE21# |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-47Q00 |
ZWE21# |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-47Q10 |
ZWE21# |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-47P90 |
ZWE21# |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-47Q20 |
ZWE21# |
1 | ||
| 82817M - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-10360 |
ZWE21# |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
ILLUST NO. 5 OF12(1908- )
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-1XG10 |
ZWE21#..HBDWB ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-1XK00 |
ZWE21#..HBDWB ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ &6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XL30 |
ZWE21#..HBDS,HBDWB |
1 | ||
| 82141-1XL20 |
ZWE21#..HBDS,HBDWB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XG11 |
ZWE21#..HBDWB ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-1XJ91 |
ZWE21#..HBDS,HBDWB 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個 |
1 | ||
| 82141-1XJ91 |
ZWE21#..HBDWB 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り |
1 | ||
| 82141-1XK01 |
ZWE21#..HBDS,HBDWB 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個&ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XK01 |
ZWE21#..HBDWB 外部電源−有り(AC100V 1500W:2個)&ｱｸｾｻﾘｿｹｯﾄ−12V 120W:1個, USB:2個&ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XK01 |
ZWE21#..HBDWB ﾍｯﾄﾞｱｯﾌﾟﾃﾞｨｽﾌﾟﾚｲ−有り&ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ &6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XL21 |
ZWE21#..HBDS,HBDWB ｵｰﾃﾞｨｵ(日本向け)−9ｲﾝﾁﾃﾞｨｽﾌﾟﾚｲ & 6ｽﾋﾟｰｶ |
1 | ||
| 82141-1XL31 |
ZWE21#..HBDS,HBDWB |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-12680 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-12B80 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82143C - WIRE, INSTRUMENT PANEL, NO.3 | ||||
| 82143-12260 |
NRE210,ZWE21# 寒冷地仕様 |
1 | ||
| 82666B - HOLDER, CONNECTOR NO.3 | ||||
| 82666-12670 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-12680 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82824A - CONNECTOR, WIRING HARNESS | ||||
| 82824-12530 |
NRE210,ZWE21# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 6 OF12(1908- )
ﾄﾞｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-1AC80 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-1AB80 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDS,HBDWB,S,WB |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-12C30 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-12B90 |
MZEA12,NRE210,ZRE212,ZWE21# |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
ILLUST NO. 7 OF12(1908- )
ﾌﾛｱ & ﾙｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-1ED00 |
ZWE214..SED..(HBDS,HBDWB) 外部電源−有り(AC100V 1500W:2個)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 82161-1EC90 |
ZWE214..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82161-1EC60 |
ZWE214..SED |
1 | ||
| 82161-1EC70 |
ZWE214..SED..(HBDS,HBDWB) ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 82161-1ED01 |
ZWE214..SED..(HBDS,HBDWB) 外部電源−有り(AC100V 1500W:2個)&ﾌﾞﾗｲﾝﾄﾞｽﾎﾟｯﾄﾓﾆﾀ−有り |
1 | ||
| 82161-1EC91 |
ZWE214..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-12450 |
ZWE214 |
1 | ||
| 82169A - WIRE, FLOOR, NO.6 | ||||
| 82169-12060 |
ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12V30 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 82171-12V40 |
NRE210,ZRE212,ZWE21#..SED..(HBDS,HBDWB,S,WB) ｲﾝﾅﾐﾗｰ−自動防眩 |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12260 |
NRE210,ZRE212,ZWE21#..SED |
1 | ||
| 82817N - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-52A60 |
ZWE21#..SED |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-47320 |
ZWE214 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 90980-12373 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 90980-12373 |
NRE210,ZRE212,ZWE21# |
2 | ||
| 90980-12373 |
NRE210,ZRE212,ZWE21#..HBDS,HBDWB,S,WB ｼｰﾄﾋｰﾀ−有り(運転席 & 助手席) |
2 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-12010 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDGX,HBDS,HBDWB,S,WB |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-12020 |
MZEA12,NRE210,ZRE212,ZWE21#..G,HBDGX,HBDS,HBDWB,S,WB |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91673-80616 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8417 | ||||
| 8601 | ||||

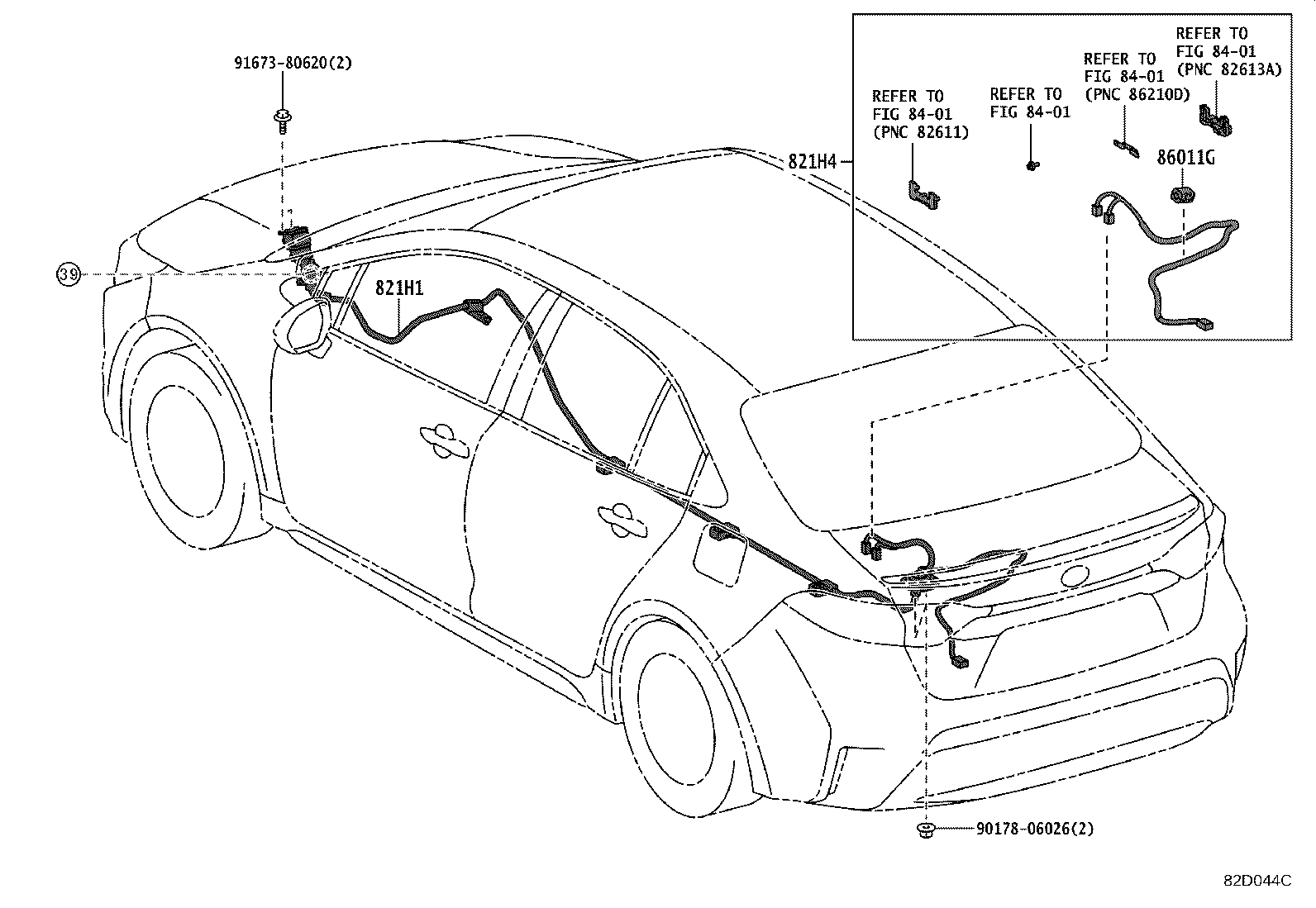

ILLUST NO. 8 OF12(1908- )ZWE21#..SED
ｺｳｱﾂｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 821H1 - WIRE, FLOOR UNDER | ||||
| 821H1-12060 |
ZWE214..SED |
1 | ||
| 821H4 - WIRE, HV SOCKET INVERTER | ||||
| 821H4-12030 |
ZWE214..SED |
1 | ||
| 821H4-12040 |
ZWE214..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| 86011G - CONDENSER | ||||
| 90980-04206 |
ZWE21#..SED 外部電源−有り(AC100V 1500W:2個) |
1 | ||
| Common parts | ||||
| 90178-06026 | ||||
| 91673-80620 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 9 OF12(1908- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 12631-37010 | ||||
| 82711-12B70 | ||||
| 82715-02N70 | ||||
| 82715-02N80 | ||||
| 82715-02N90 | ||||
| 82715-02P00 | ||||
| 82715-10350 | ||||
| 82715-10370 | ||||
| 82715-12A01 | ||||
| 82715-12A30 | ||||
| 82715-12R70 | ||||
| 82715-12S30 | ||||
| 82715-12S50 | ||||
| 82715-12S80 | ||||
| 82715-12T40 | ||||
| 82715-12T60 | ||||
| 82715-12U10 | ||||
| 82715-12U20 | ||||
| 82715-12U50 | ||||
| 82715-12U60 | ||||
| 82715-12U90 | ||||
| 82715-12W00 | ||||
| 82715-12W20 | ||||
| 82715-28L90 | ||||
| 82715-47740 | ||||
| 82715-47750 | ||||
| 82715-47770 | ||||
| 82715-47790 | ||||
| 82715-47830 | ||||
| 82715-47860 | ||||
| 82715-47A00 | ||||
| 82715-5C050 | ||||
| 82715-5C060 | ||||
| 82715-6A460 | ||||
| 82715-F4050 | ||||
| 82729-20150 | ||||
| 90119-06A12 | ||||
| 91621-B0816 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91673-80612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-80625 | ||||
| 91673-80816 | ||||
ILLUST NO.10 OF12(1908- )
ｸﾗﾝﾌﾟ & ﾌﾞﾗｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-10340 | ||||
| 82715-12S90 | ||||
| 82715-12V00 | ||||
| 82715-12V30 | ||||
| 82715-12W70 | ||||
| 82715-33L00 | ||||
| 82715-33L40 | ||||
| 82715-47350 | ||||
| 82715-47360 | ||||
| 82715-47810 | ||||
| 82715-47820 | ||||
| 82715-47850 | ||||
| 82715-76790 | ||||
| 90119-06A06 | ||||
| 90119-06A12 | ||||
| 90119-06A24 | ||||
| 90179-06274 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| Linked diagrams | ||||
| 5804 | ||||
ILLUST NO.11 OF12(1908- )
ｺﾈｸﾀ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10619 | ||||
| 90980-10825 | ||||
| 90980-10858 | ||||
| 90980-10860 | ||||
| 90980-10942 | ||||
| 90980-11148 | ||||
| 90980-11162 | ||||
| 90980-11194 | ||||
| 90980-11399 | ||||
| 90980-12732 | ||||
| 90980-12F30 | ||||
ILLUST NO.12 OF12(1908- )
ｺﾈｸﾀ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-78020 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12790 | ||||
| 90980-12A59 | ||||
| 90980-12B59 | ||||
| 90980-12C39 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
